ME(H4SO)-50
MECHANICAL
Timing Belt Assembly
Tightening torque:
39 N·m (4.0 kgf-m, 28.9 ft-lb)
3) Install the belt idler (No. 1).
Tightening torque:
39 N·m (4.0 kgf-m, 28.9 ft-lb)

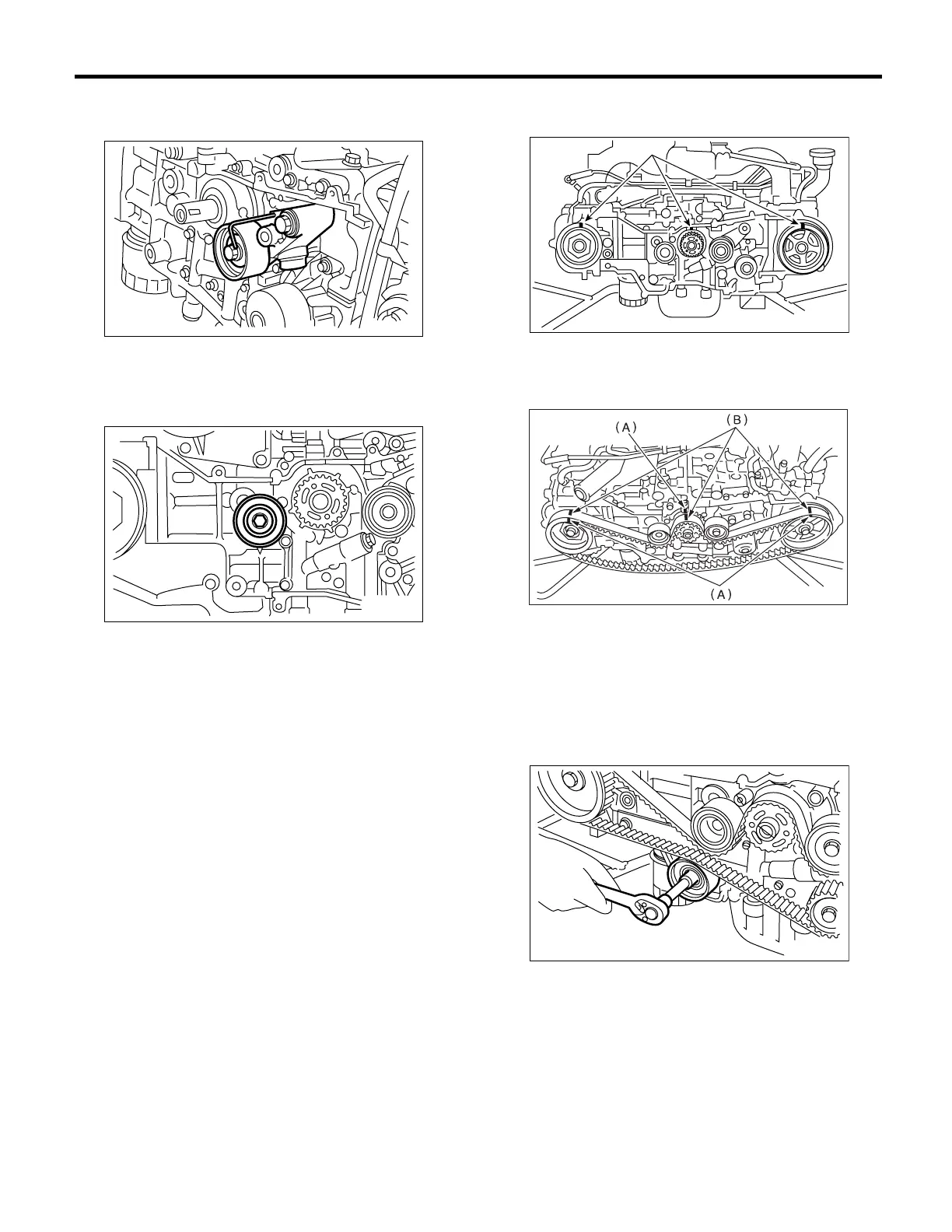

2. TIMING BELT
1) Preparation for the installation of automatic belt
tension adjuster assembly. <Ref. to ME(H4SO)-49,
AUTOMATIC BELT TENSION ADJUSTER AS-
SEMBLY AND BELT IDLER, INSTALLATION,
Timing Belt Assembly.>
2) Installation of timing belt
(1) Turn the camshaft sprocket No. 2 using
ST1, and then turn the camshaft sprocket No. 1
using ST2 so that their alignment marks (A)
come to top positions.
ST1 18231AA010 CAMSHAFT SPROCKET
WRENCH
NOTE:
Also the CAMSHAFT SPROCKET WRENCH
(499207100) can be used.
ST2 499207400 CAMSHAFT SPROCKET
WRENCH
(2) While aligning alignment marks (B) on the
timing belt with marks (A) on sprockets, position
the timing belt properly.
3) Install the belt idler No. 2.
Tightening torque:
39 N·m (4.0 kgf-m, 28.9 ft-lb)
4) Install the belt idler (No. 2).
Tightening torque:
39 N·m (4.0 kgf-m, 28.9 ft-lb)
ME-00241
ME-00242
ME-00243
(A)
ME-00244
ME-00235
