ME(H4SO)-60
MECHANICAL
Camshaft
Tightening torque:
10 N·m (1.0 kgf-m, 7.2 ft-lb)

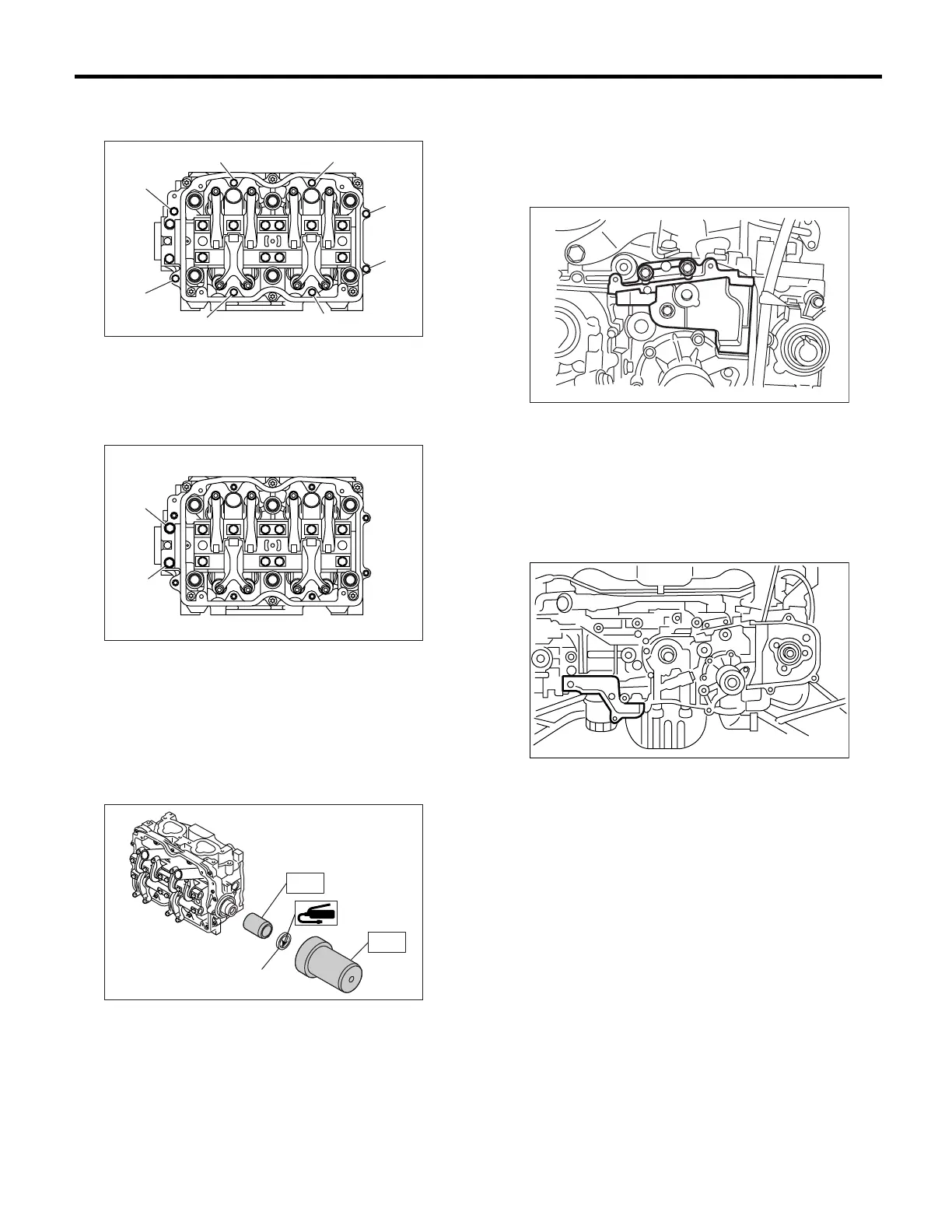

(7) Tighten the bolts (w) through (x) in alphabet-
ical sequence.
Tightening torque:
10 N·m (1.0 kgf-m, 7.2 ft-lb)
3) Apply a coat of grease to oil seal lips, and then
install the oil seal (A) on camshaft using ST1 and
ST2.
NOTE:
Use a new oil seal.
ST1 499597000 OIL SEAL GUIDE
ST2 499587500 OIL SEAL INSTALLER
4) Install the plug using ST.
ST 499587700 CAMSHAFT OIL SEAL IN-
STALLER
5) Adjust the valve clearance. <Ref. to ME(H4SO)-
33, ADJUSTMENT, Valve Clearance.>
6) Install the rocker cover and connect PCV hose.
7) Install the oil level gauge guide. (LH side only)
8) Install the camshaft position sensor support. (LH
side only)
9) Install the tensioner bracket.
Tightening torque:
25 N·m (2.5 kgf-m, 18.1 ft-lb)
10) Install the timing belt cover No. 2 (RH).
Tightening torque:
5 N·m (0.5 kgf-m, 3.6 ft-lb)
11) Install the timing belt cover No. 2 (LH).
Tightening torque:
5 N·m (0.5 kgf-m, 3.6 ft-lb)
12) Install the crankshaft sprocket. <Ref. to
ME(H4SO)-55, INSTALLATION, Crankshaft
Sprocket.>
13) Install the camshaft sprocket. <Ref. to
ME(H4SO)-53, INSTALLATION, Camshaft
Sprocket.>
14) Install the timing belt assembly. <Ref. to
ME(H4SO)-49, INSTALLATION, Timing Belt As-
sembly.>
15) Install the timing belt cover. <Ref. to
ME(H4SO)-47, INSTALLATION, Timing Belt Cov-
er.>
16) Install the crankshaft pulley. <Ref. to
ME(H4SO)-45, INSTALLATION, Crankshaft Pul-
ley.>
17) Install the V-belt. <Ref. to ME(H4SO)-43, IN-
STALLATION, V-belt.>
ME-00270
(o)
(r)
(q)
(v)
(u)
(p)
(s)
(t)
ME-00271
(x)
(w)
ME-00272
(A)
ST2
ST1
ME-00273
ME-00274
