ME(H4SO)-72
MECHANICAL
Cylinder Block
NOTE:
When separating the cylinder block, do not allow the connecting rod to fall and damage the cylinder block.
35) Remove the rear oil seal.
36) Remove the crankshaft together with connect-
ing rod.
37) Remove the crankshaft bearings from cylinder
block using hammer handle.
NOTE:
Do not confuse the combination of crankshaft bear-
ings. Press bearing at the end opposite to locking
lip.
38) Draw out each piston from cylinder block using
wooden bar or hammer handle.
NOTE:
Do not confuse the combination of piston and cylin-
der.

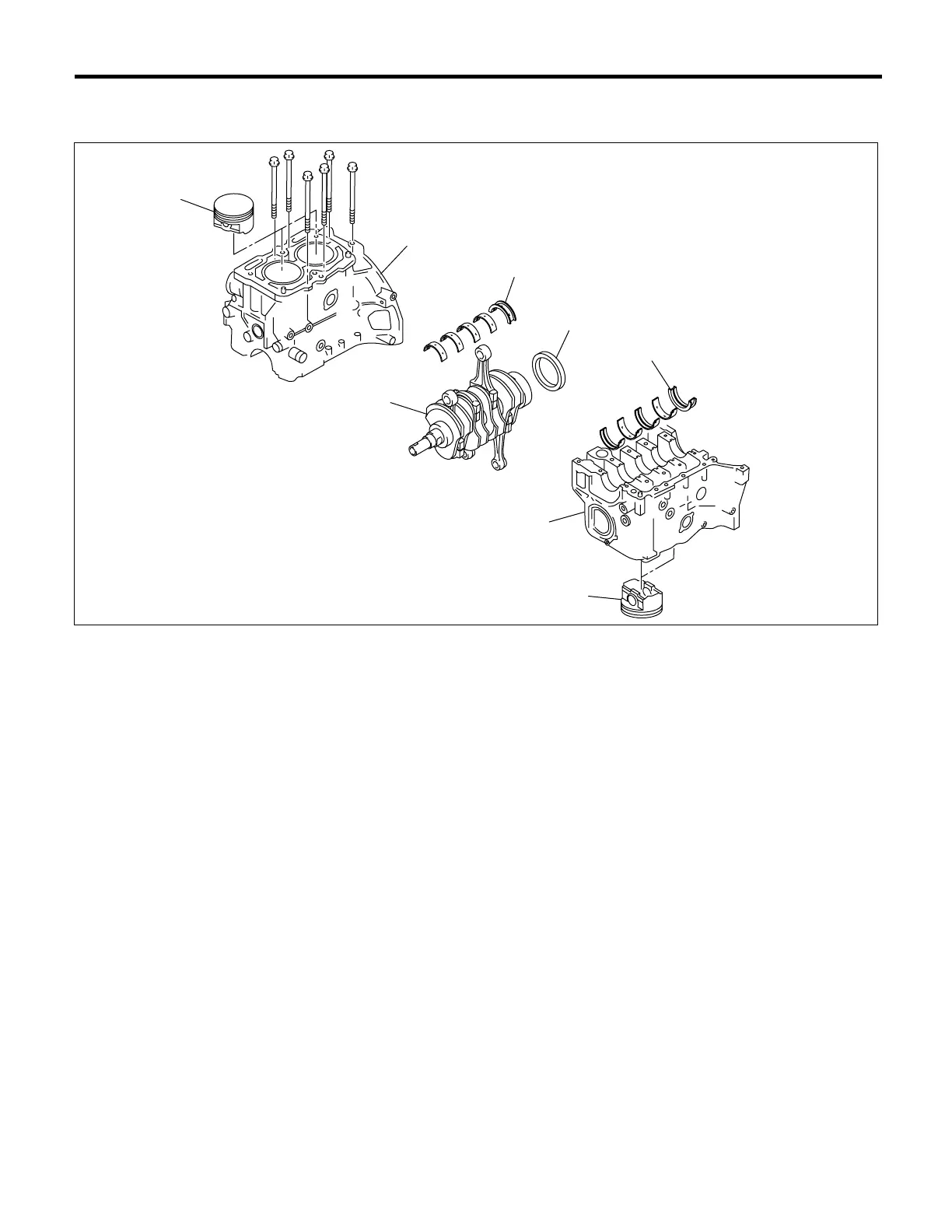

(1) Cylinder block (3) Crankshaft (5) Piston
(2) Rear oil seal (4) Crankshaft bearing
ME-00143
(2)
(3)
(4)
(4)
(5)
(5)
(1)
(1)
