Cylinder Block
NOTE:
Be careful not to confuse the original combination
of piston, piston pin and cylinder.

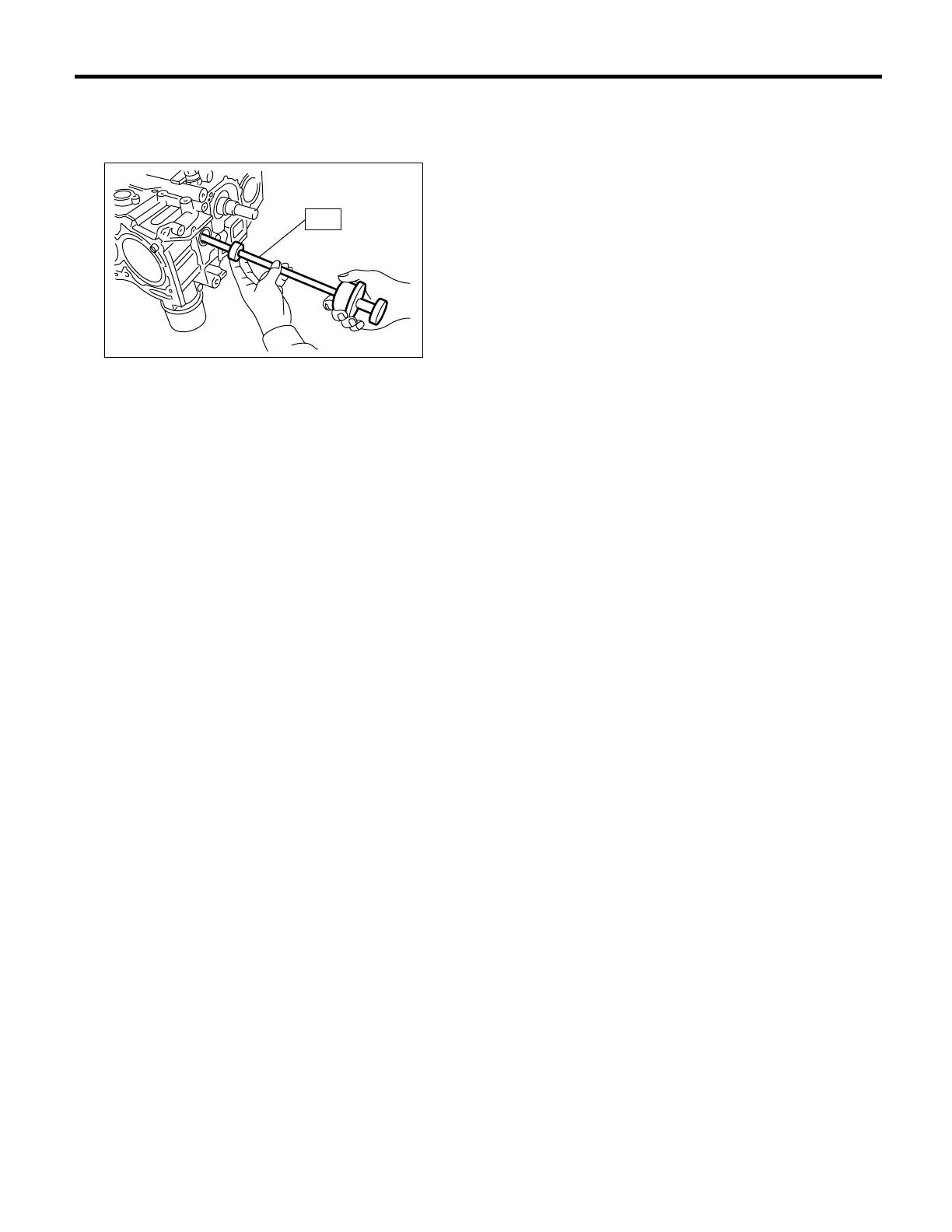

30) Similarly remove the piston pins from #3 and #4
pistons.
31) Remove the bolts which connect the cylinder
block on the side of #2 and #4 cylinders.
32) Back off the bolts which connect the cylinder
block on the side of #1 and #3 cylinders two or
three turns.
33) Set up the cylinder block so that #1 and #3 cyl-
inders are on the upper side, and then remove the
cylinder block connecting bolts.
34) Separate the cylinder blocks (RH) and (LH).
ME-00142
ST
To Next Page
