FU(H4SO)-17
FUEL INJECTION (FUEL SYSTEMS)
Intake Manifold

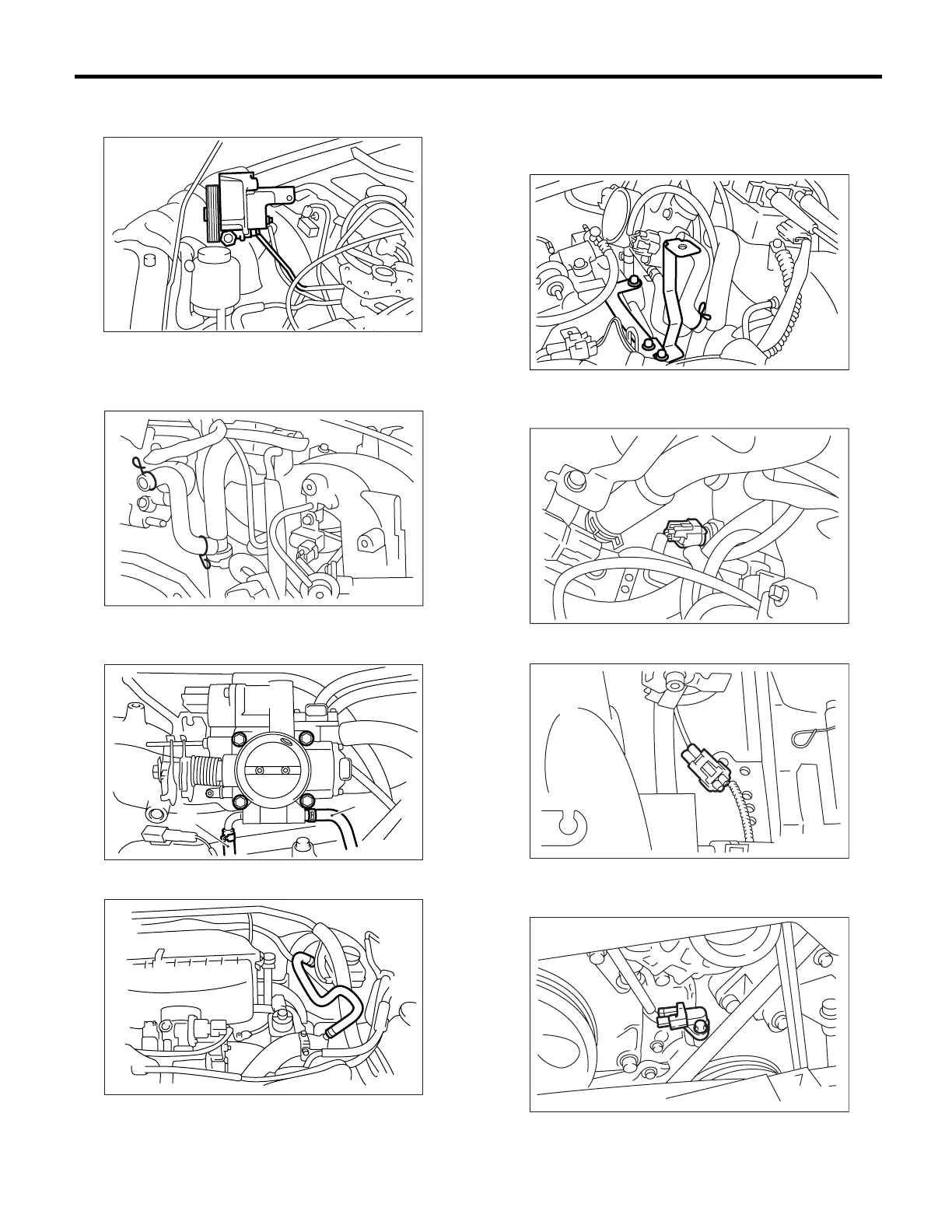

(7) Place the power steering pump on the right
side wheel apron.
8) Disconnect the spark plug cords from spark
plugs.
9) Disconnect the PCV hose from intake manifold.
10) Disconnect the engine coolant hose (A) from
throttle body.
11) Disconnect the brake booster hose.
12) Remove the air cleaner case stay RH and en-
gine harness bracket, and then disconnect the en-
gine harness connectors from the bulkhead
harness connectors.
13) Disconnect the connectors from the engine
coolant temperature sensor.
14) Disconnect the knock sensor connector.
15) Disconnect the connector from the crankshaft
position sensor.
FU-00021
FU-00141
FU-00361
(A)
(A)
FU-00958
FU-00258
FU-00145
FU-00062
FU-00056
