Intake Manifold
16) Disconnect the connector from the oil pressure
switch.
17) Disconnect the connector from the camshaft
position sensor.
18) Remove the EGR pipe from intake manifold.
19) Disconnect the fuel hoses from fuel pipes.
WARNING:
• Do not spill fuel.
• Catch fuel from hoses in a container or cloth.
20) Remove the bolts which hold the intake mani-
fold onto cylinder heads.
21) Remove the intake manifold.
B: INSTALLATION
1) Install the intake manifold onto cylinder heads.
NOTE:
Replace the gaskets with new ones.
Tightening torque:
25 N·m (2.5 kgf-m, 18.1 ft-lb)

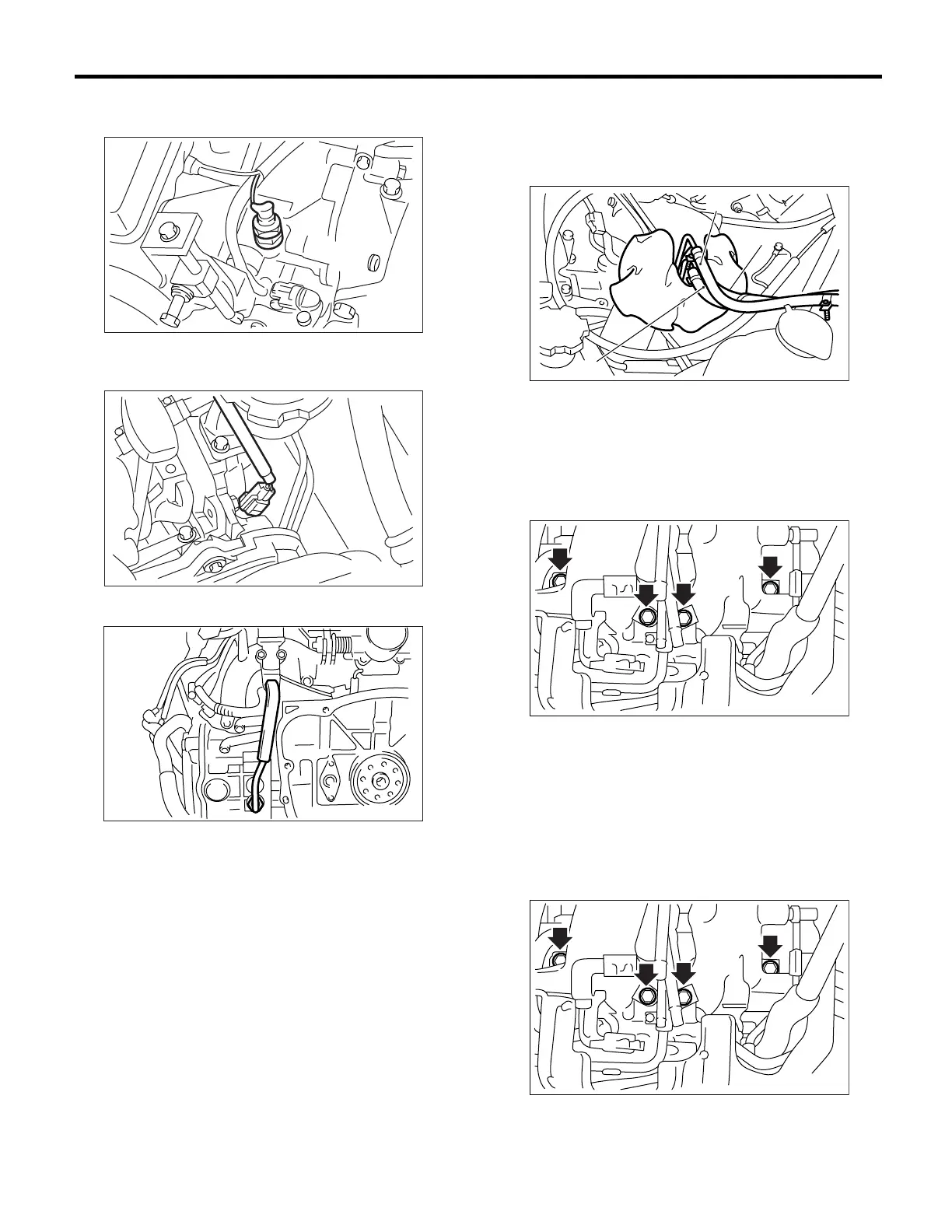

FU-00146
FU-00147
FU-00148
(A) Fuel delivery hose
(B) Return hose
(C) Evaporation hose
(B)
(A)
(C)
FU-00259
FU-00260
FU-00260
