SP(H4SO)-2
SPEED CONTROL SYSTEMS
General Description
1. General Description
A: SPECIFICATION

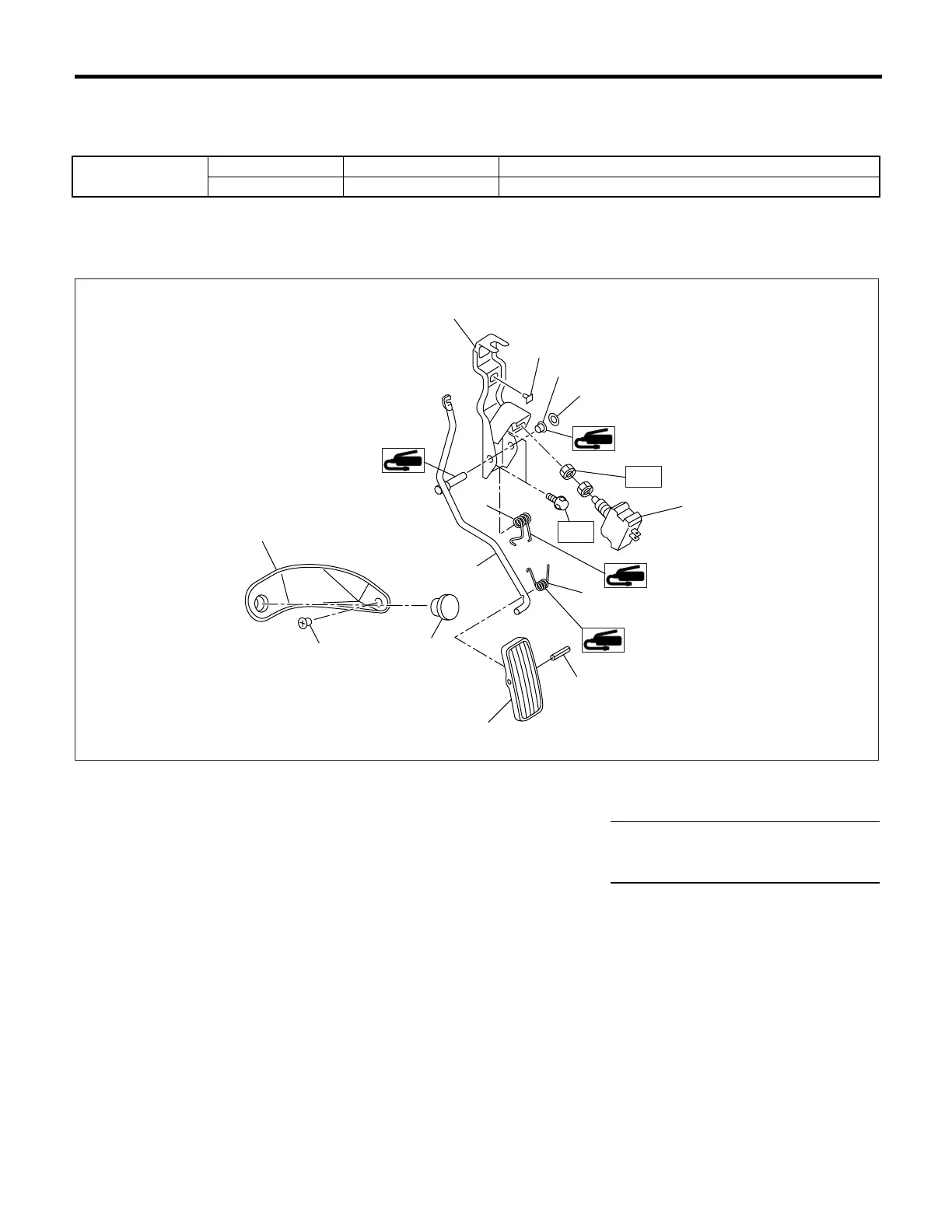

B: COMPONENT
1. LHD MODEL
Accelerator pedal
Free play At pedal pad 0 — 4 mm (0 — 0.16 in)
Stroke At pedal pad 52 — 57 mm (2.05 — 2.24 in)
(1) Accelerator bracket (7) Accelerator pedal lever (13) Kick-down switch (AT model)
(2) Stopper (8) Spring pin
(3) Bushing (9) Accelerator pedal Tightening torque: N·m (kgf-m, ft-lb)
(4) Clip (10) Accelerator stopper T1: 12 (1.2, 9.0)
(5) Accelerator spring (11) Accelerator plate T2: 18 (1.8, 13.0)
(6) Accelerator pedal spring (12) Clip
(8)
(1)
(2)
(3)
(4)
(6)
(13)
(5)
(9)
(10)
(7)
(12)
(11)
T2
T1
SP-00021
