Accelerator Pedal
• LHD MODEL • RHD MODEL
D: ASSEMBLY
Assemble in the reverse order of disassembly.
NOTE:
Clean and apply grease to the portions indicated in
the figure.
Grease:
SUNLIGHT No. 2 (Part No. 003602010)
E: INSPECTION
1. ACCELERATOR PEDAL
1) Lightly move the pedal pad in lateral direction to
ensure that pedal deflection is in specified range.
2) If excessive deflection is noted, replace the
bushing and clip with new ones.

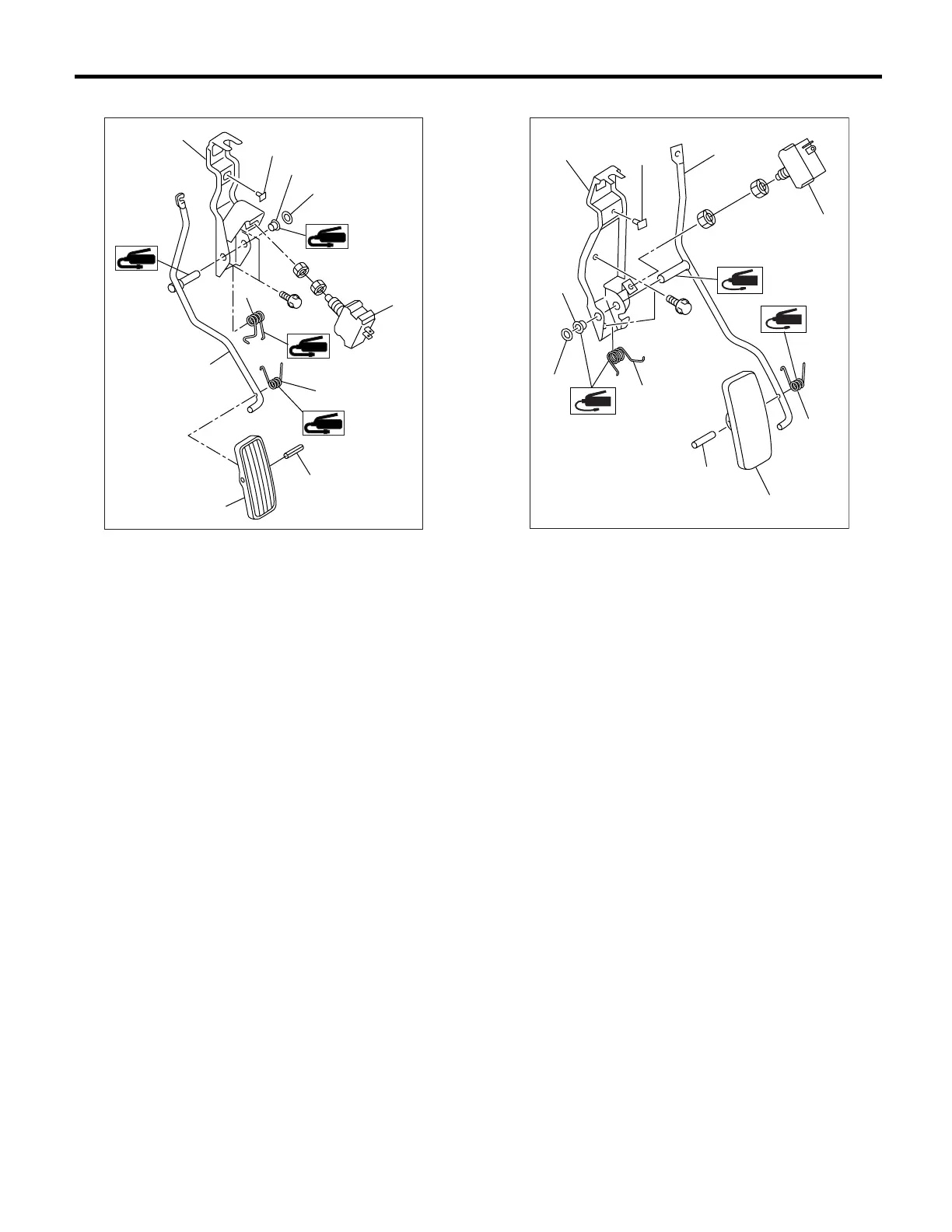

(A) Accelerator bracket
(B) Stopper
(C) Bushing
(D) Clip
(E) Accelerator spring
(F) Accelerator pedal spring
(G) Accelerator pedal lever
(H) Spring pin
(I) Accelerator pedal
(J) Kick-down switch (AT model)
