SP(H4SO)-5
SPEED CONTROL SYSTEMS

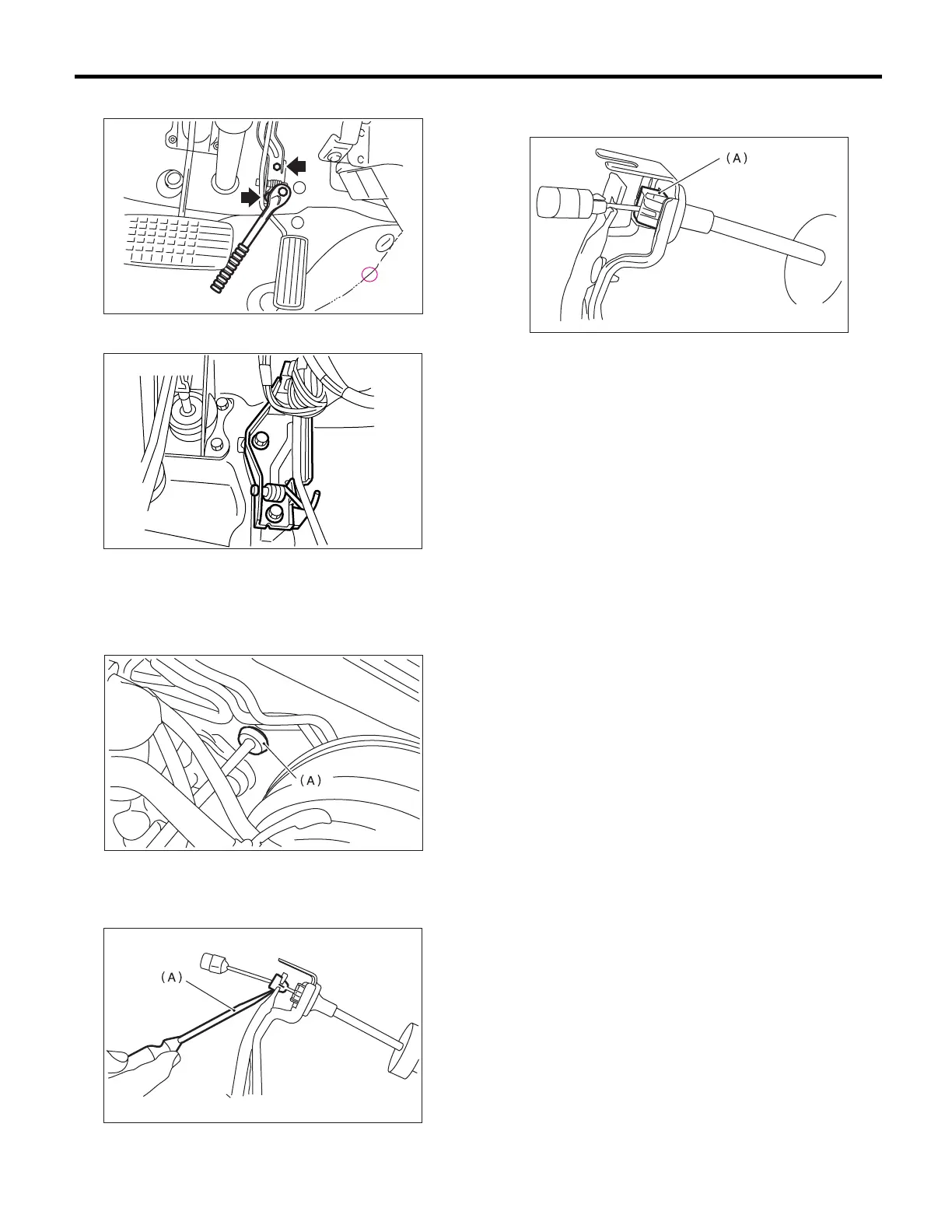

Accelerator Pedal
• LHD MODEL
• RHD MODEL
9) Disconnect the grommet from toe board.
NOTE:
From inside compartment, push the grommet (A)
into hole.
10) Pull out the cable from toe board hole.
11) Disconnect the accelerator cable bushing from
accelerator pedal lever.
12) Disconnect the accelerator cable stopper (A)
from bracket.
13) Separate the accelerator cable and bracket.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
• If the cable clamp is damaged, replace it with a
new one.
• Never fail to cover the outer cable end with boot.
• Be careful not to kink the accelerator cable.
• For tightening torque, refer to “COMPONENT”.
<Ref. to SP(H4SO)-2, COMPONENT, General De-
scription.>
C: DISASSEMBLY
1) Remove the clip, and then remove the accelera-
tor pedal from bracket.
2) Pull out the spring pin, and then remove the ac-
celerator pedal from accelerator pedal lever.
(A) Flat tip screwdriver
SP-00018
SP-00007
SP-00008
SP-00009
SP-00010
