Subaru Impreza 2004 - Accelerator Pedal

SP(H4SO)-4
SPEED CONTROL SYSTEMS
Accelerator Pedal
2. Accelerator Pedal

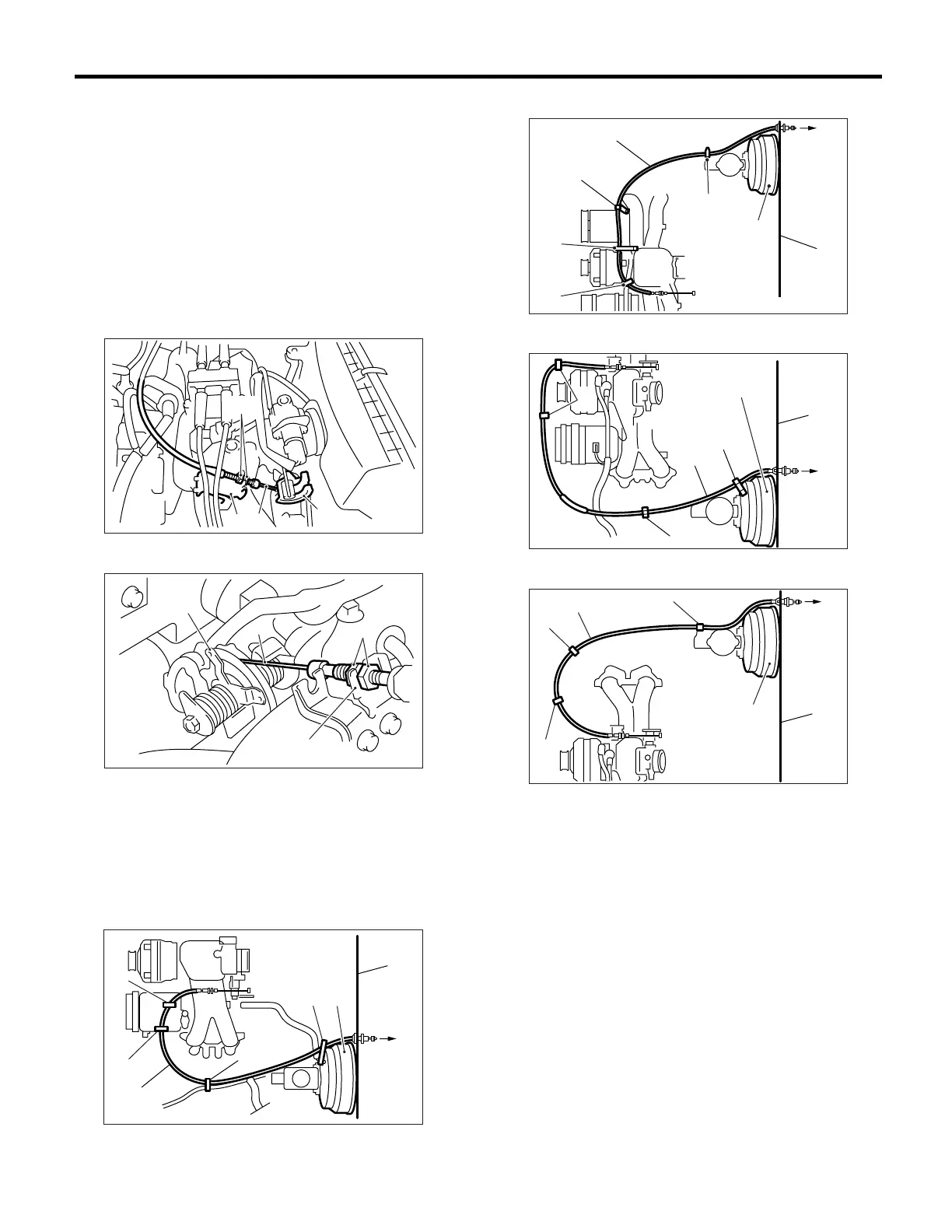

A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the lock nut from accelerator cable
bracket.
3) Separate the accelerator cable from bracket.
4) Remove the accelerator cable end from throttle
cam.
NOTE:
Be careful not to kink the accelerator cable.
• SOHC MODEL
• DOHC MODEL
5) Remove the clip inside engine compartment.
• LHD SOHC MODEL
• RHD SOHC MODEL
• LHD DOHC TURBO MODEL
• RHD DOHC TURBO MODEL
6) Remove the instrument panel lower cover from
instrument panel.
7) Disconnect the connector from kick-down
switch. (AT model)
8) Remove the accelerator pedal connecting bolt
from accelerator pedal bracket.
(A) Lock nut
(B) Accelerator cable bracket
(C) Accelerator cable
(D) Throttle cam
(B)
(D)
(C)
(A)
SP-00003
(B)
(D)
(C)
(A)
SP-00004
SP-00045
(A)
(B)
(C)
(D)
(E)
(E)
(E)
(E)
(A) Toe board
(B) Accelerator cable
(C) To accelerator pedal
(D) Brake booster
(E) Clip
(A)
(B)
(C)
(E)
(E)
(E)
(E)
(D)
SP-00005
SP-00046
(A)
(D)
(E)
(E)
(C)
(B)
(E)
SP-00047
(A)
(D)
(E)
(E)
(B)
(C)
(E)
