FUEL INJECTION (FUEL SYSTEMS)
Intake Manifold
• RH SIDE
• LH SIDE

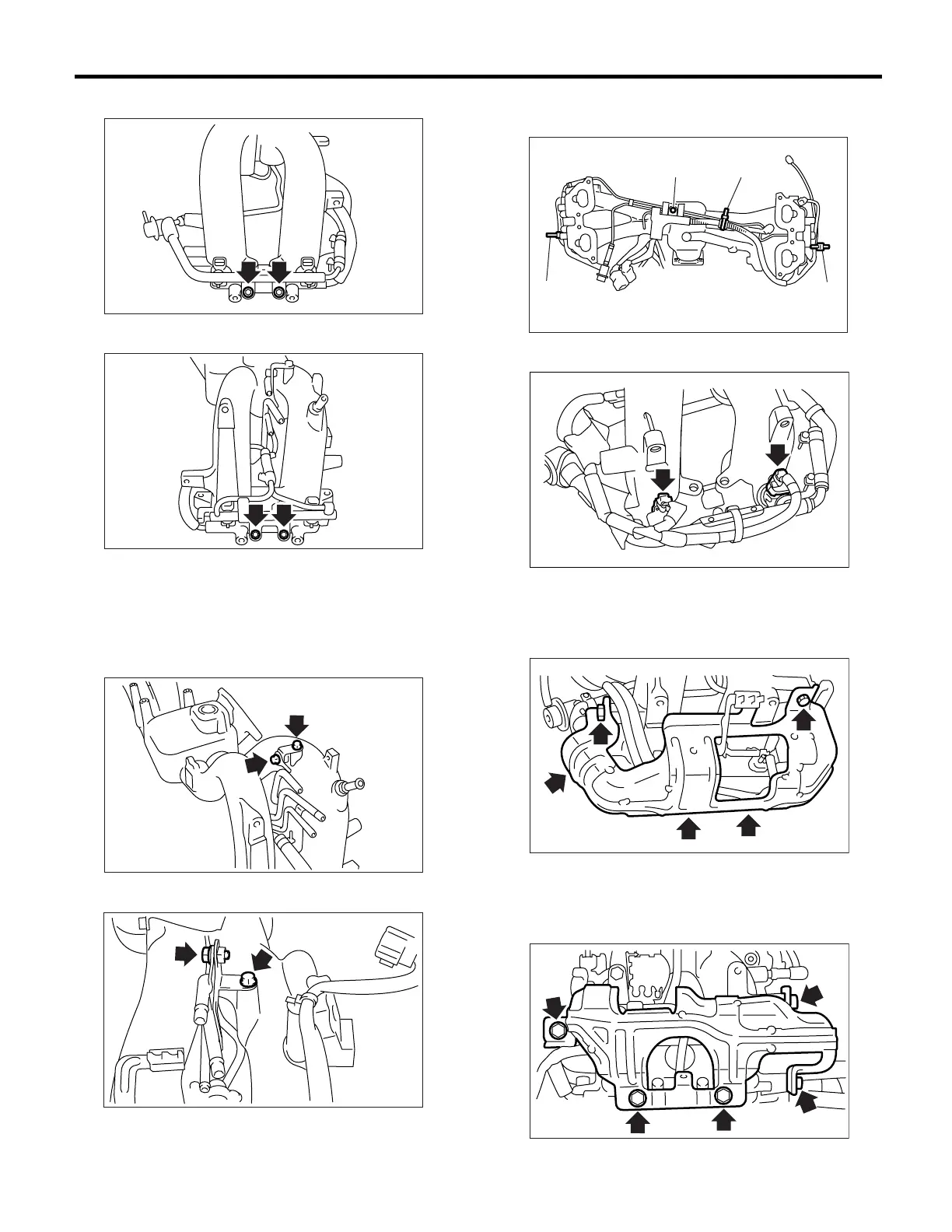

8) Tighten the two bolts which install the fuel pipes
on intake manifold.
Tightening torque:
6.4 N·m (0.65 kgf-m, 4.7 ft-lb)
• 1.6 L MODEL
• 2.0 L MODEL
9) Install the engine harness onto intake manifold.
10) Hold the engine harness by harness bands (A)
and bolts (B).
11) Connect the connector to fuel injector.
12) Install the fuel pipe protector RH.
Tightening torque:
19 N·m (1.9 kgf-m, 13.7 ft-lb)
13) Install the fuel pipe protector LH.
Tightening torque:
19 N·m (1.9 kgf-m, 13.7 ft-lb)
FU-00960
FU-00961
FU-00962
FU-00170
FU-00888
(A)
(A)
(A)
(B)
FU-00268
FU-00267
FU-00266
