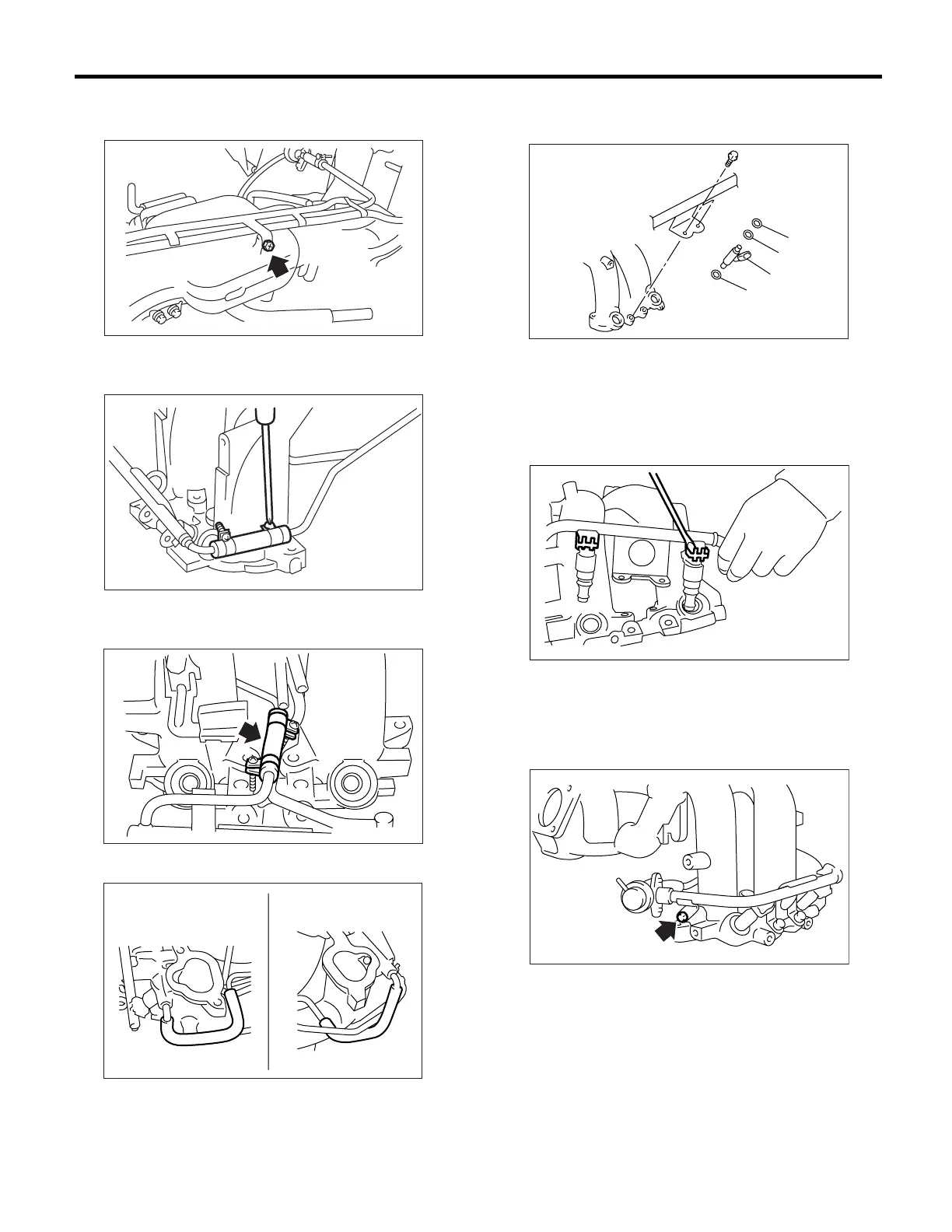

FU(H4SO)-24
FUEL INJECTION (FUEL SYSTEMS)
Intake Manifold
Tightening torque:
5.0 N·m (0.51 kgf-m, 3.7 ft-lb)
3) Connect the fuel injector pipe RH to fuel hose,
and then tighten the clamp screw.
4) Connect the fuel injector pipe LH to fuel hose,
and then tighten the clamp screw.
5) Connect the air by-pass hose. (1.6 L model)
6) Install the fuel injectors.
NOTE:
Replace the O-rings with new ones.
NOTE:
Do not forget to install the fuel injector securing clip.
7) Tighten the bolt which installs the injector pipe
on intake manifold.
Tightening torque:
5.0 N·m (0.51 kgf-m, 3.7 ft-lb)
Tightening torque:
19 N·m (1.9 kgf-m, 13.7 ft-lb)
FU-00518
FU-00279
FU-00171
FU-00963
LH side RH side
(A) O-ring
(B) Fuel injector
FU-01112
(A)
(A)
(A)
(B)
FU-00379
FU-00959
