Intake Manifold
• 2.0 L MODEL

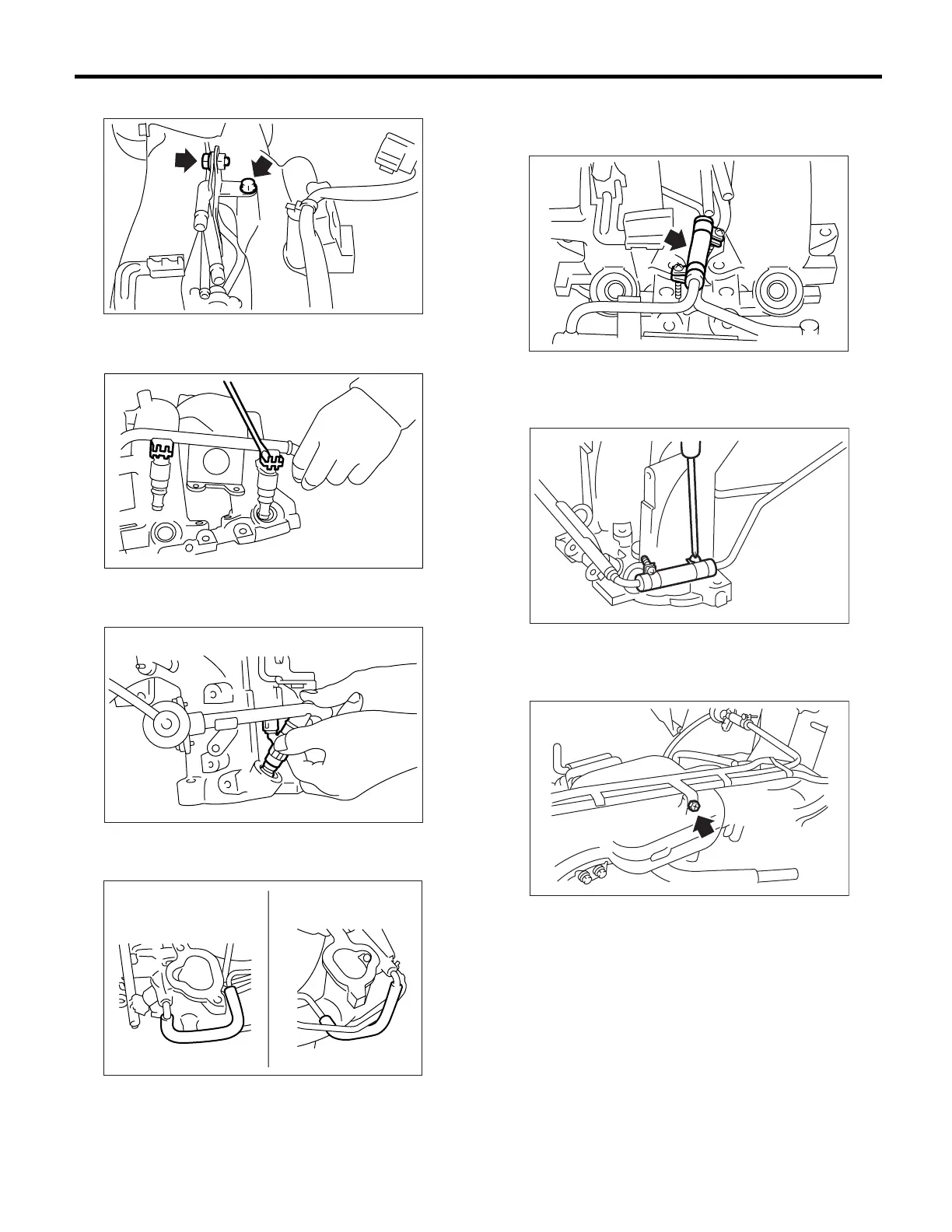

15) Remove the fuel injectors.
(1) Remove the fuel injector securing clip.
(2) Remove the fuel injector while lifting up the
fuel injector pipe.
16) Disconnect the air by-pass hose from intake
manifold. (1.6 L model)
17) Loosen the clamp which holds the fuel injector
pipe LH to fuel hose, and then remove the pipe
from fuel hose.
18) Loosen the clamp which holds the fuel injector
pipe RH to fuel hose, and then remove the pipe
from fuel hose.
19) Remove the fuel injector pipe.
20) Remove the bolt which installs the fuel pipes on
intake manifold.
21) Remove the fuel pipe assembly and pressure
regulator, from intake manifold.
D: ASSEMBLY
1) Install the fuel pipe assembly and pressure reg-
ulator, etc. to intake manifold.
2) Tighten the bolt which installs the fuel pipes on
intake manifold.
FU-00170
FU-00379
FU-00276
FU-00963
LH side RH side
FU-00171
FU-00279
FU-00518
