FU(H4SO)-22
FUEL INJECTION (FUEL SYSTEMS)
Intake Manifold

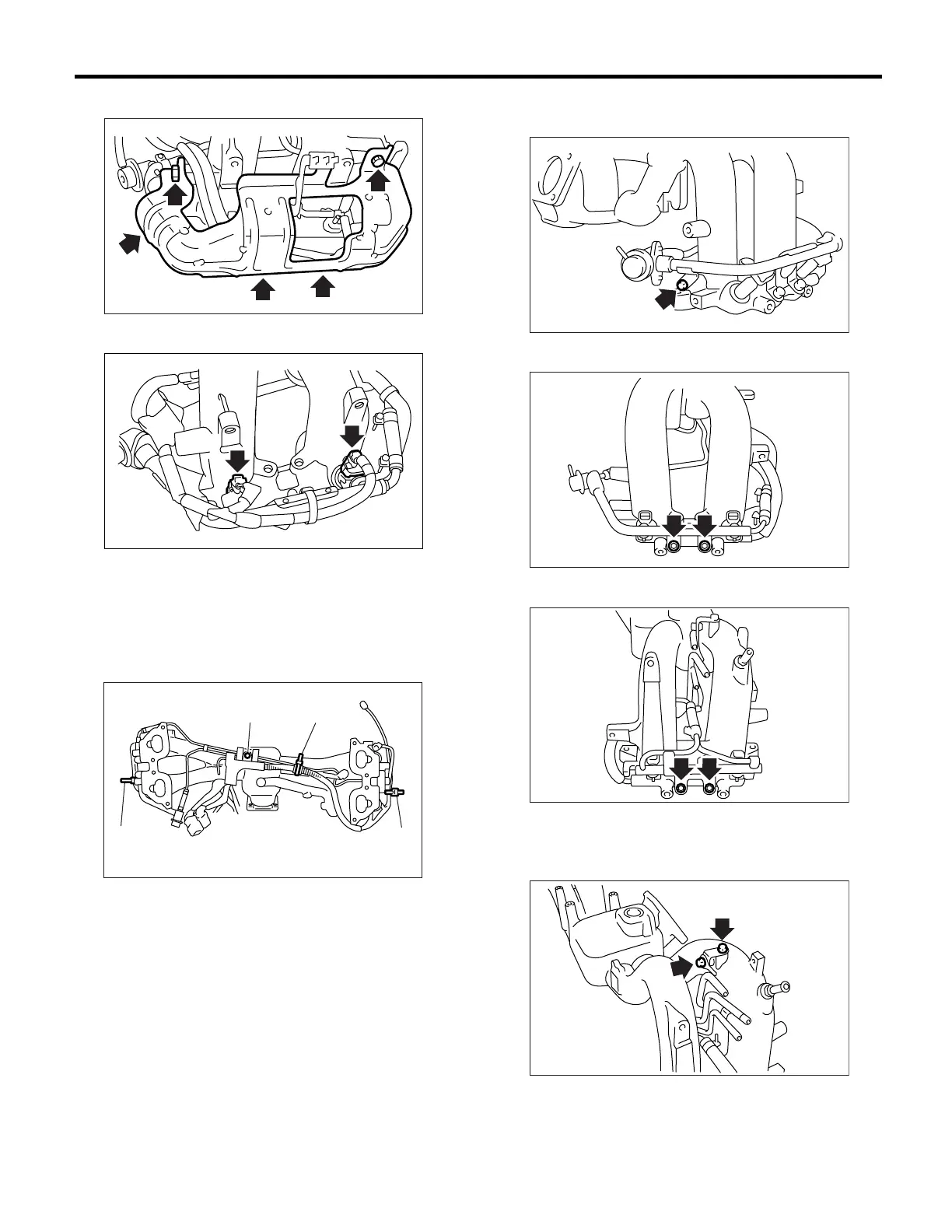

8) Remove the fuel pipe protector RH.
9) Disconnect the connectors from fuel injectors.
10) Disconnect the purge control solenoid valve.
<Ref. to EC(H4SO)-7, REMOVAL, Purge Control
Solenoid Valve.>
11) Remove the harness bands (A) and bolts (B)
which hold the engine harness onto intake mani-
fold.
12) Remove the engine harness from the intake
manifold.
13) Remove the bolt which installs the fuel injector
pipe on the intake manifold as shown in the figure.
• RH SIDE
• LH SIDE
14) Remove the two bolts which hold the fuel pipes
on intake manifold.
