Intake Manifold
(5) Install the front side V-belt. <Ref. to
ME(H4SO)-43, INSTALLATION, V-belt.>
(6) Install the resonator chamber. <Ref. to
IN(H4SO)-7, INSTALLATION, Resonator
Chamber.>
15) Connect the accelerator cable (A). <Ref. to
SP(H4SO)-9, INSTALLATION, Accelerator Control
Cable.>
16) Connect the cruise control cable (B). (With
cruise control model)
17) Install the air intake duct and air cleaner case.
<Ref. to IN(H4SO)-6, INSTALLATION, Air Intake
Duct.> and <Ref. to IN(H4SO)-5, INSTALLATION,
Air Cleaner Case.>
18) Connect the connector to the fuel pump relay.
19) Connect the battery ground cable to battery.
C: DISASSEMBLY
1) Disconnect the engine ground terminal from in-
take manifold.
2) Disconnect the ignition coil and ignitor assembly.
<Ref. to IG(H4SO)-8, REMOVAL, Ignition Coil & Ig-
nitor ASSY.>
3) Remove the throttle body. <Ref. to FU(H4SO)-
15, REMOVAL, Throttle Body.>
4) Remove the EGR valve. <Ref. to FU(H4SO)-36,
REMOVAL, EGR Valve.>
5) Remove the air assist injector solenoid valve.
(1.6 L model) <Ref. to FU(H4SO)-37, REMOVAL,
Air Assist Injector Solenoid Valve.>
6) Disconnect the pressure regulator vacuum hose
from intake manifold.
7) Remove the fuel pipe protector LH.

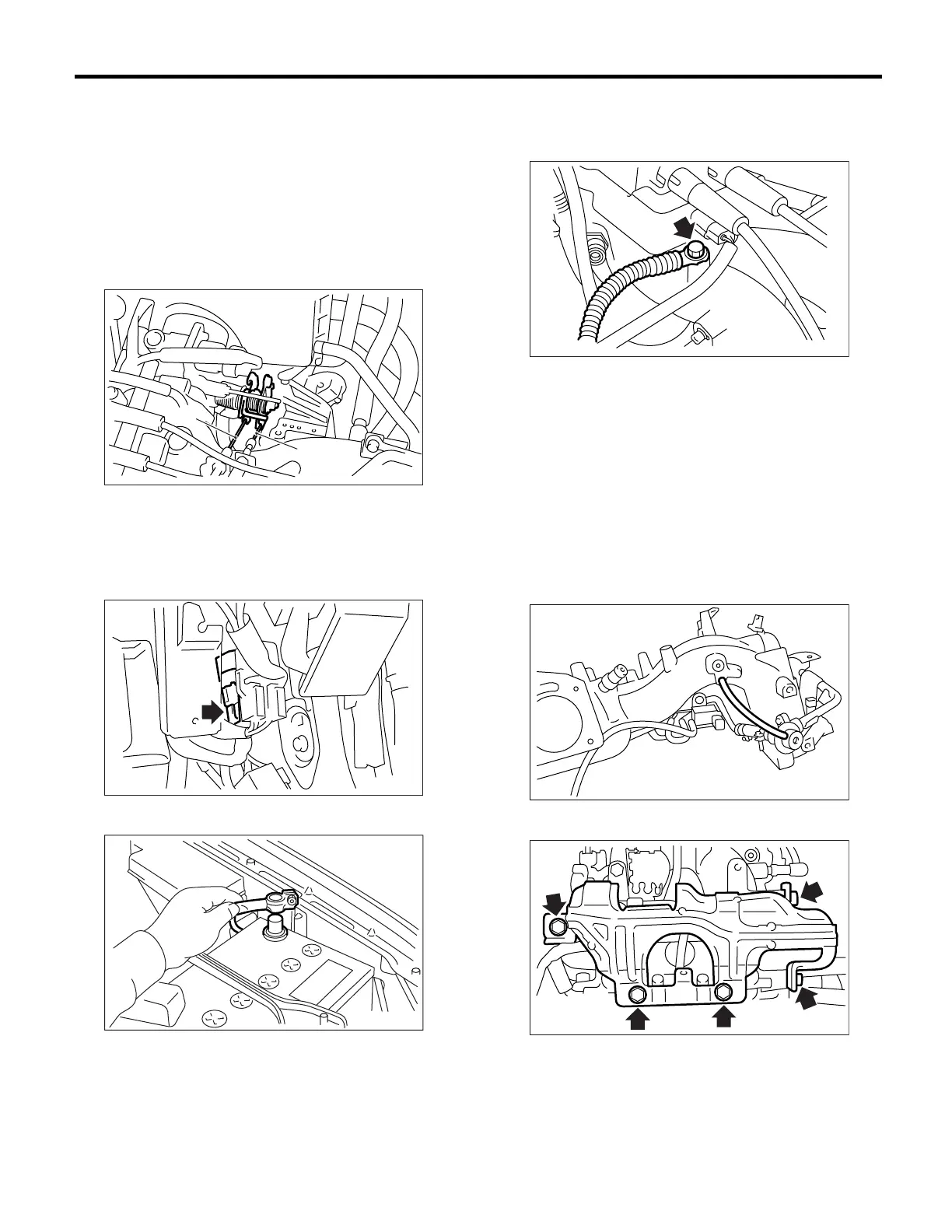

FU-00251
(B)
(A)
FU-00262
FU-00009
FU-00263
FU-00265
FU-00266
