Subaru Impreza 2004 - Page 288

SC(H4SO)-4
STARTING/CHARGING SYSTEMS
General Description
B: COMPONENT

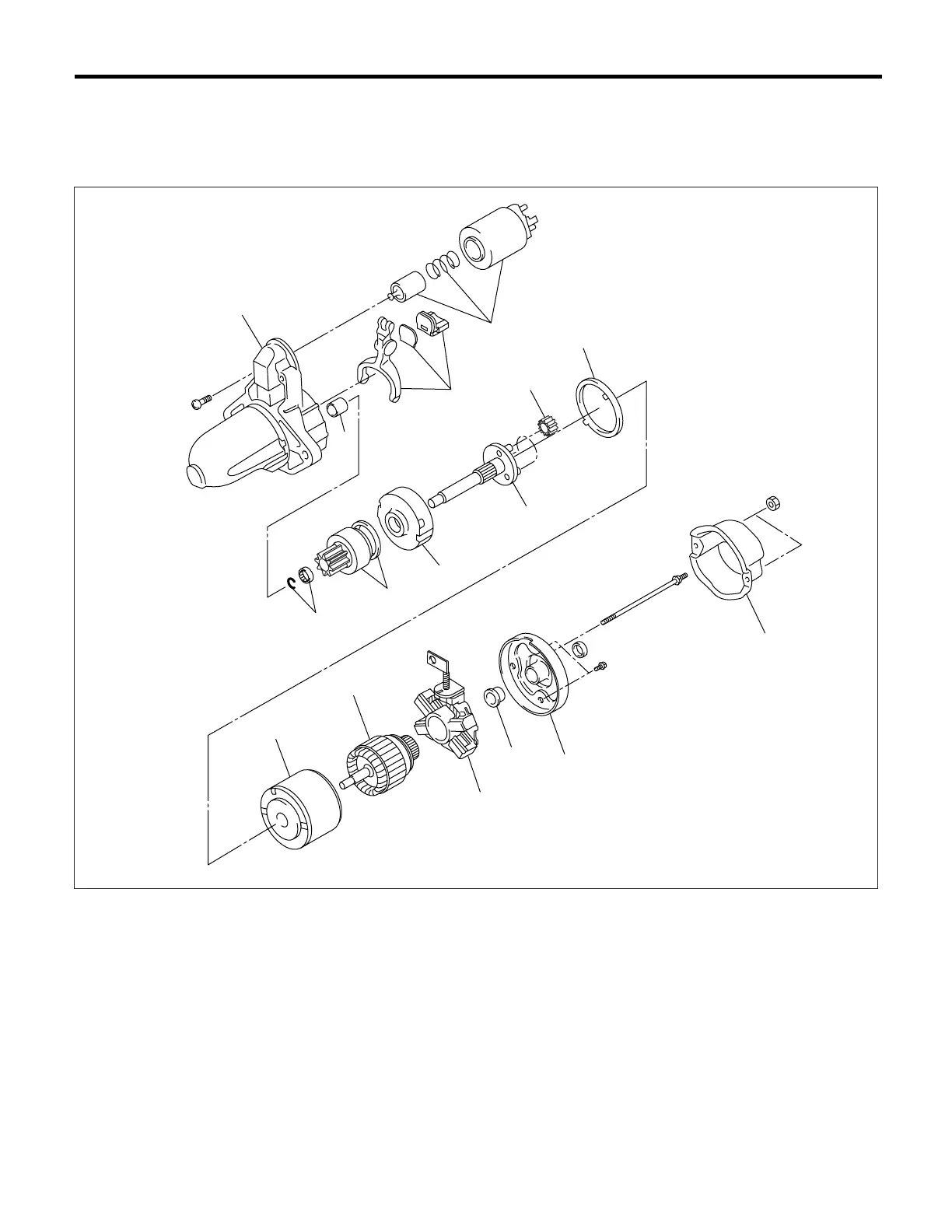

1. STARTER
• EXCEPT FOR DOHC TURBO MT MODEL
(1) Front bracket (7) Internal gear ASSY (13) Brush holder ASSY
(2) Sleeve bearing (8) Shaft ASSY (14) Sleeve bearing
(3) Lever set (9) Gear ASSY (15) Rear cover
(4) Magnet switch ASSY (10) Packing (16) Rear cover set
(5) Stopper set (11) Yoke ASSY
(6) Overrunning clutch (12) Armature
SC-02009
(14)
(1)
(2)
(3)
(4)
(10)
(11)
(12)
(13)
(15)
(16)
(5)
(6)
(7)
(8)
(9)
