SC(H4SO)-5
STARTING/CHARGING SYSTEMS
General Description

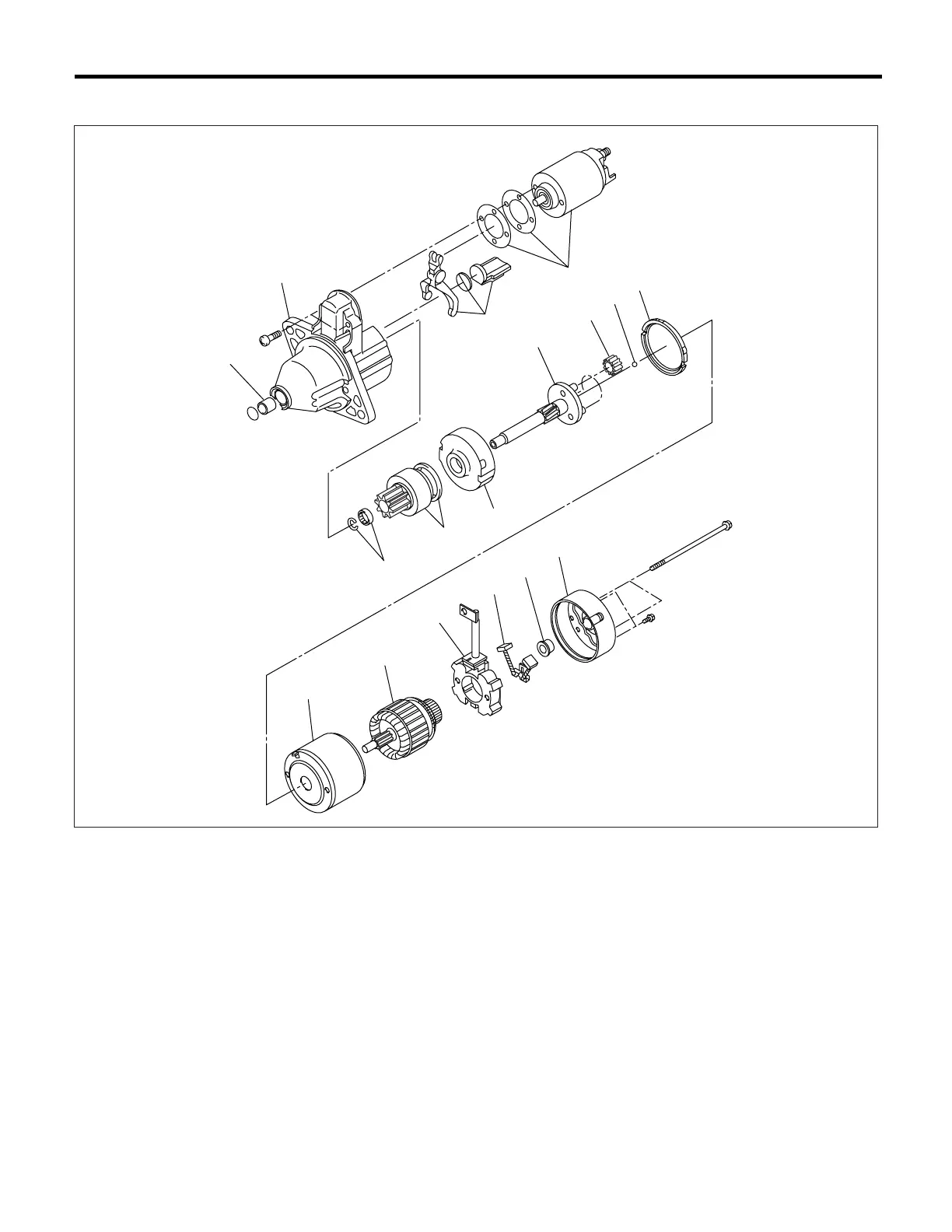

• DOHC TURBO MT MODEL
(1) Sleeve bearing (7) Internal gear ASSY (13) Armature
(2) Front bracket (8) Shaft ASSY (14) Brush holder ASSY
(3) Lever set (9) Gear ASSY (15) Brush
(4) Magnet switch ASSY (10) Ball (16) Sleeve bearing
(5) Stopper set (11) Packing (17) Rear cover
(6) Overrunning clutch (12) Yoke ASSY
SC-00168
(14)
(2)
(3)
(4)
(1)
(11)
(10)
(12)
(13)
(15)
(16)
(17)
(5)
(6)
(7)
(8)
(9)
To Next Page
