SC(H4SO)-8
STARTING/CHARGING SYSTEMS
Starter
NOTE:
Be careful because the pinion gap adjustment
washer may sometimes be used on the mounting
surface of switch assembly.

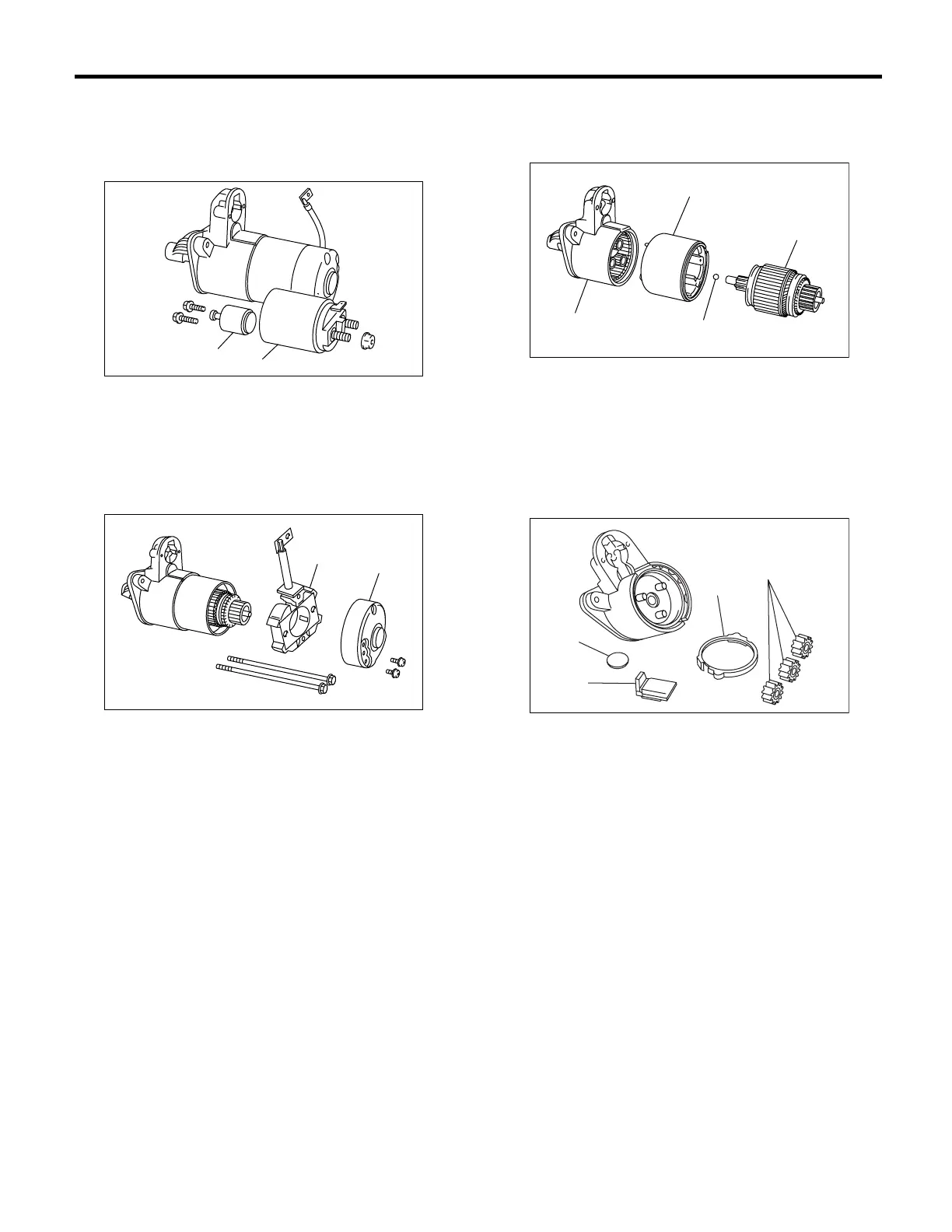

3) Remove both through-bolts and brush holder
screws, and then detach the rear cover and brush
holder.
4) Remove the armature and yoke from front brack-
et. The ball used as a bearing will come off from the
armature end.
NOTE:
Before removal of the yoke, put alignment marks
on the yoke and front bracket.
5) Remove packing A, planetary gears, packing B
and plate.
6) Remove the shaft assembly and overrunning
clutch as a unit.
(A) Switch ASSY
(B) Plunger
(A) Brush holder
(B) Rear cover
SC-00169
(B)
(A)
SC-00170
(A)
(B)
(A) Front bracket
(B) Yoke
(C) Ball
(D) Armature
(A) Packing A
(B) Planetary gear
(C) Plate
(D) Packing B
SC-00171
(A)
(B)
(D)
(C)
SC-00172
(D)
(C)
(A)
(B)
