Starter
NOTE:
Note the direction of the lever before removing.

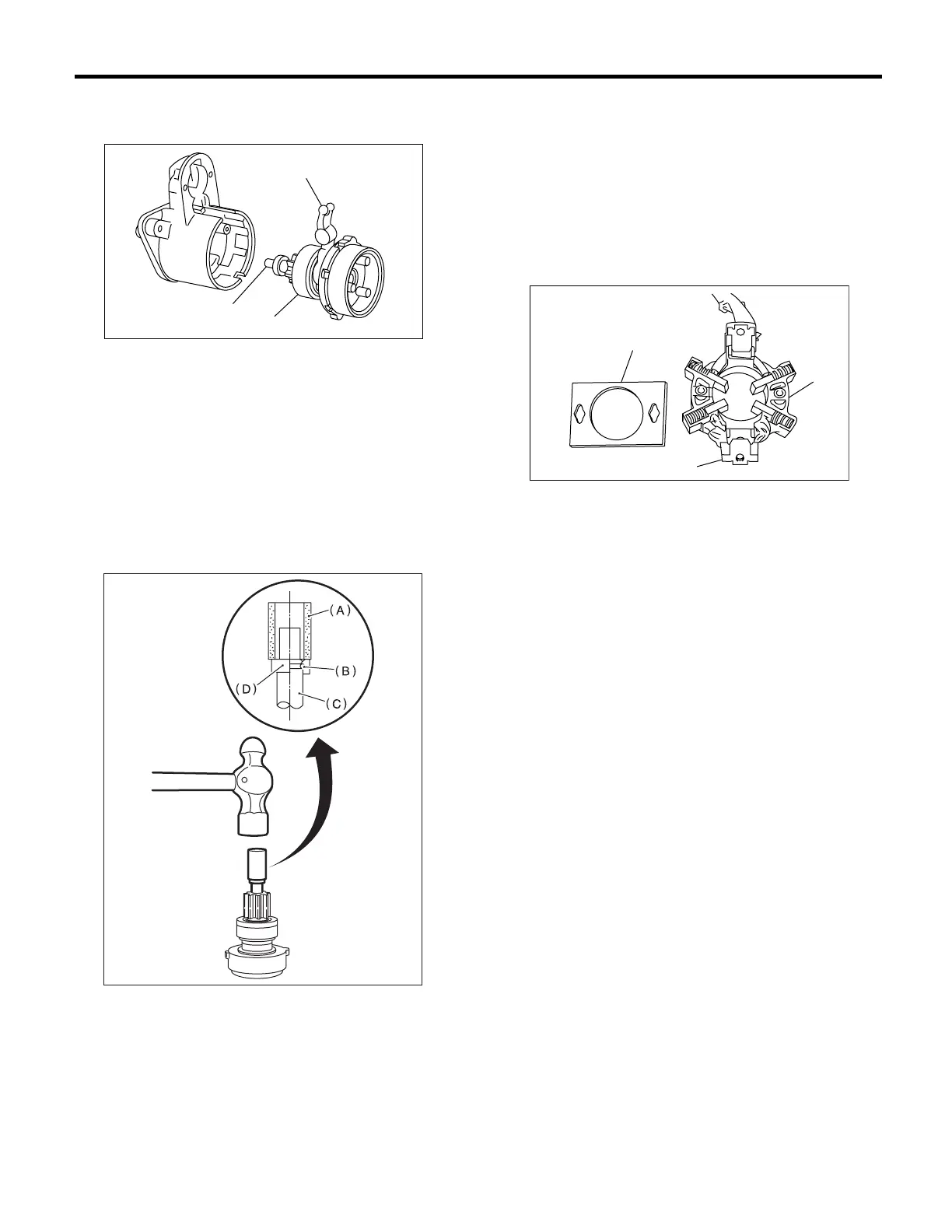

7) Remove the overrunning clutch from shaft as-
sembly as follows:
(1) Remove the stopper from ring by lightly tap-
ping the stopper with an appropriate tool (such
as a fit socket wrench).
(2) Remove the ring, stopper and clutch from
shaft.
2. BRUSH HOLDER
NOTE:
Only the brush holder of turbo MT model starter
can be disassembled.
Slightly open the metal fitting while holding the in-
sulating plate against the brush holder. Remove
the insulating plate.
The brush and spring can be easily removed from
the brush holder at this time.
D: ASSEMBLY
1) Assemble in the reverse order of disassembly.
2) Apply grease to the following parts before as-
sembly.
• Front and rear bracket sleeve bearings
• Armature shaft gear
• Outer periphery of plunger
• Mating surfaces of plunger and lever
• Gear shaft splines
• Mating surfaces of lever and clutch
• Ball at armature shaft end
• Planetary gear
E: INSPECTION
1. ARMATURE
1) Check the commutator for any sign of burns of
rough surfaces or stepped wear. If wear is of a mi-
nor nature, correct it by using sand paper.
2) Run-out test
Check the commutator run-out, and then replace if
it exceeds the limit.
(A) Shaft ASSY
(B) Overrunning clutch
(C) Lever
(A) Socket wrench
(B) Ring
(C) Shaft
(D) Stopper
SC-00173
(A)
(B)
(C)
SC-00014
(A) Brush holder
(B) Insulating plate
(C) Metal fitting
SC-00174
(B)
(C)
(A)
