EN(H4SO)(diag)-21
ENGINE (DIAGNOSTICS)

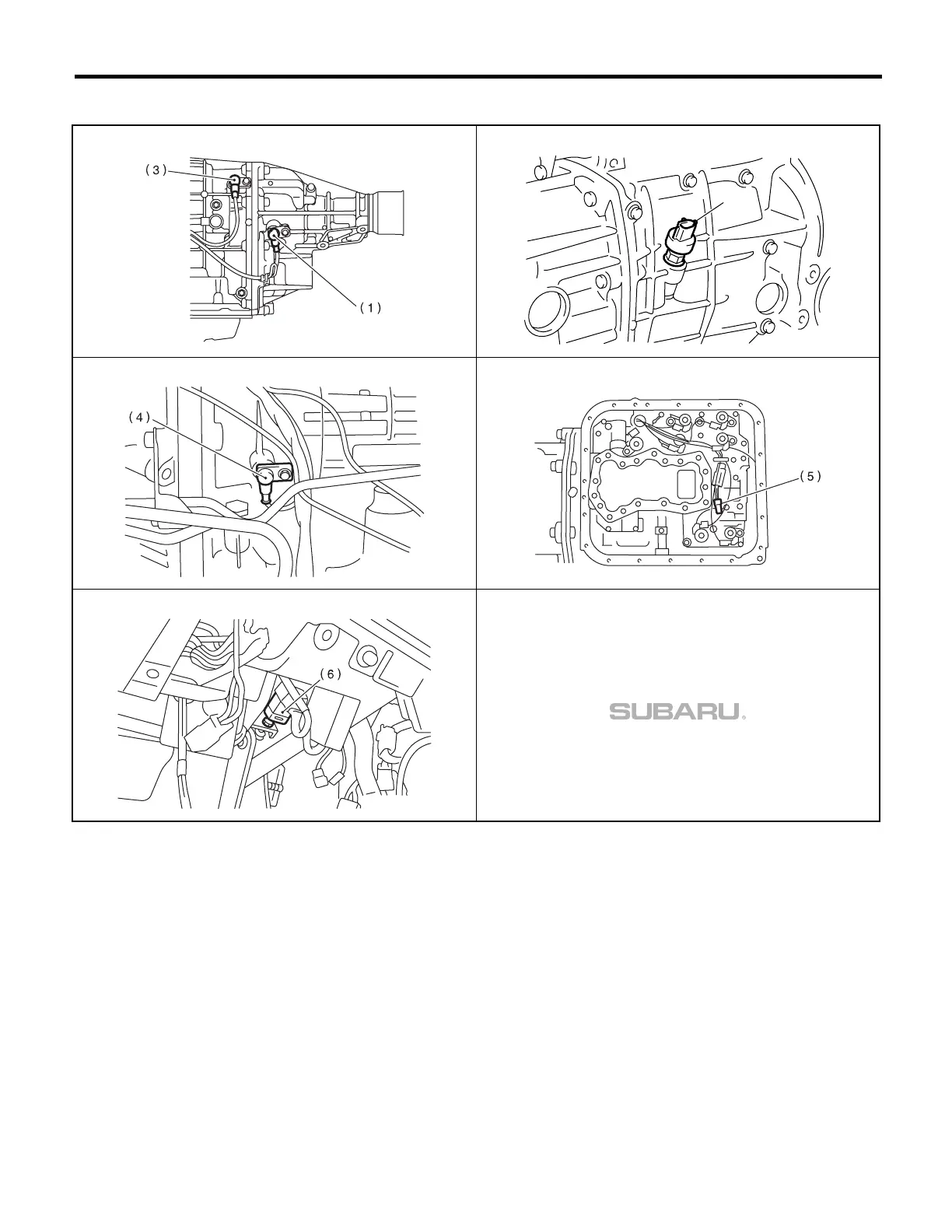

Electrical Components Location
• SENSOR
(1) Rear vehicle speed sensor (AT
model)
(3) Front vehicle speed sensor (AT
model)
(5) ATF temperature sensor (AT
model)
(2) Front vehicle speed sensor (MT
model)
(4) Torque converter turbine speed
sensor
(6) Brake light switch
EN-00184
EN-00107
(2)
EN-00186
EN-00187
EN-00188
