FU(H4SO)-40
FUEL INJECTION (FUEL SYSTEMS)
Fuel Injector

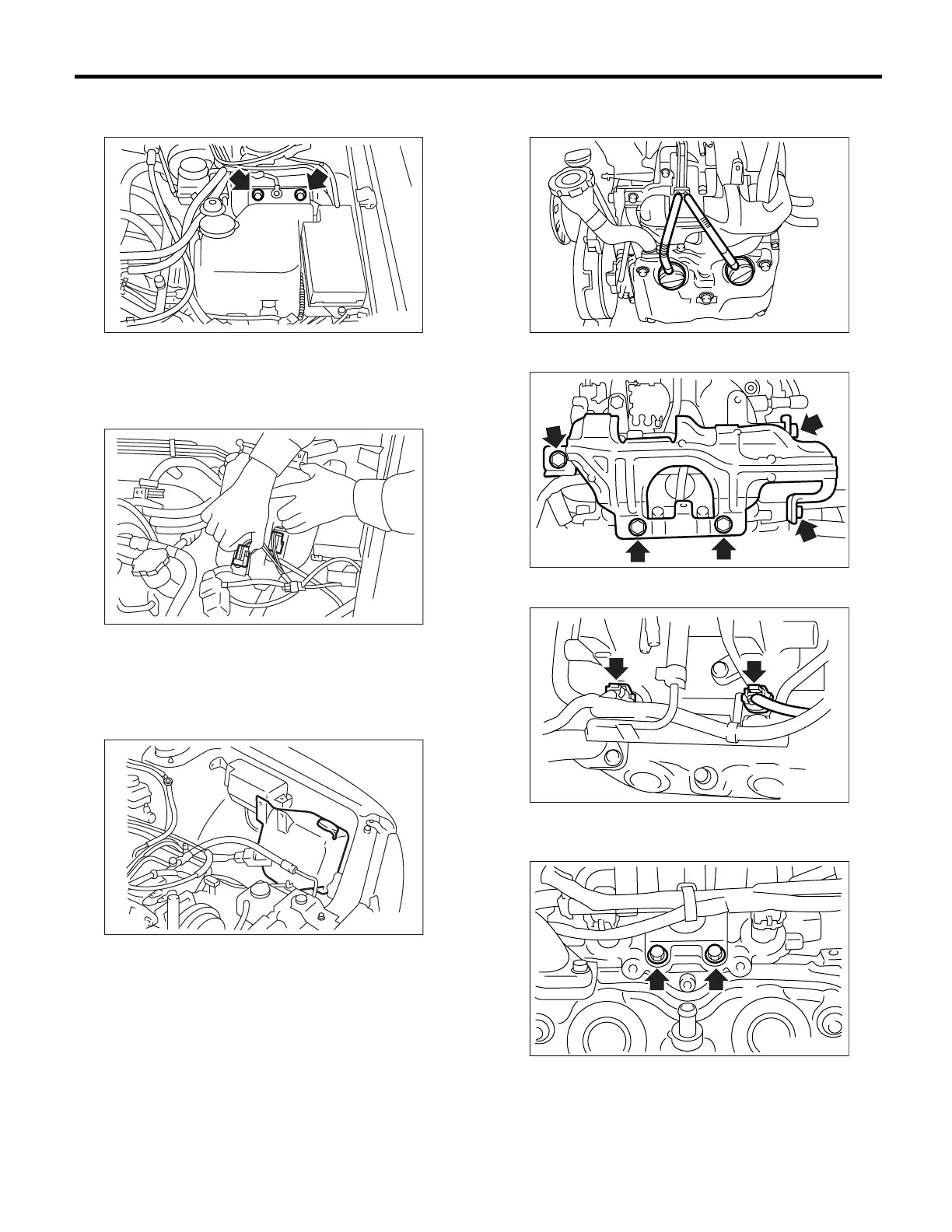

4) Remove the two bolts which install the washer
tank on body.
5) Disconnect the connector from the front window
washer motor.
6) Disconnect the connector from the rear gate
glass washer motor.
7) Disconnect the rear window glass washer hose
from washer motor, and then plug the connection
with a suitable cap.
8) Move the washer tank, and secure it away from
working area.
9) Remove the spark plug cords from spark plugs
(#2 and #4 cylinders).
10) Remove the fuel pipe protector LH.
11) Disconnect the connector from fuel injector.
12) Remove the bolt which holds the fuel injector
pipe to intake manifold.
13) Remove the bolts which hold the fuel pipe on
intake manifold.
FU-00190
FU-00191
FU-00192
FU-00307
FU-00266
FU-00308
FU-00309
