FU(H4SOw/oOBD)-25
FUEL INJECTION (FUEL SYSTEMS)
Intake Manifold

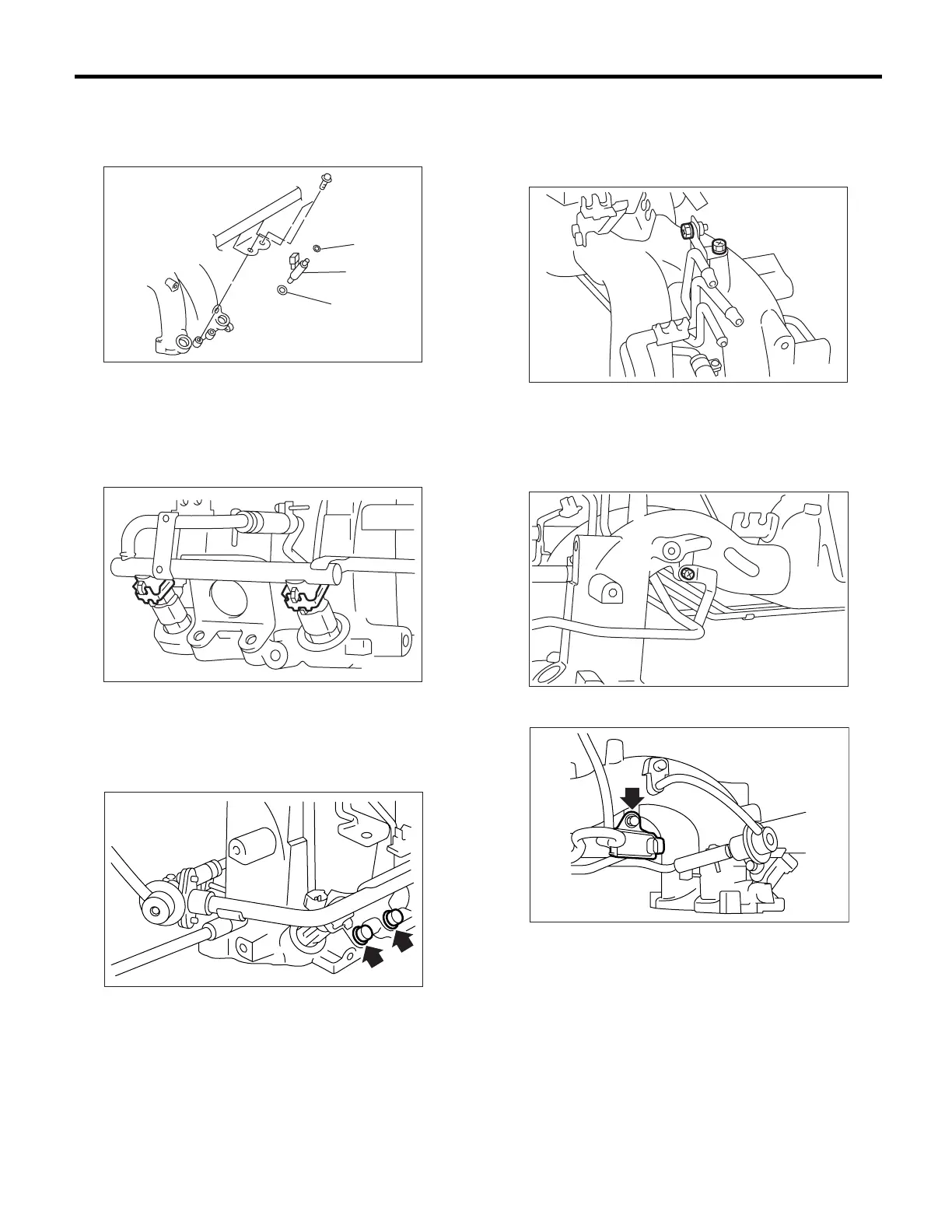

6) Install the fuel injectors.
NOTE:
Always use new O-rings.
NOTE:
Do not forget to install the fuel injector securing clip.
7) Tighten the bolt which installs the fuel injector
pipe on intake manifold.
Tightening torque:
19 N·m (1.9 kgf-m, 14.0 ft-lb)
8) Tighten the two bolts which install the fuel pipes
on intake manifold.
Tightening torque:
6.4 N·m (0.65 kgf-m, 4.7 ft-lb)
9) Tighten the bolt which installs the injector pipe
on intake manifold.
Tightening torque:
6.4 N·m (0.65 kgf-m, 4.7 ft-lb)
10) Install the purge control solenoid valve.
(A) O-ring
(B) Fuel injector
FU-00931
( A )
( A )
( B )
FU-00926
FU-00272
FU-00925
FU-00924
FU-00271
To Next Page
