FU(H4SOw/oOBD)-26
FUEL INJECTION (FUEL SYSTEMS)
Intake Manifold

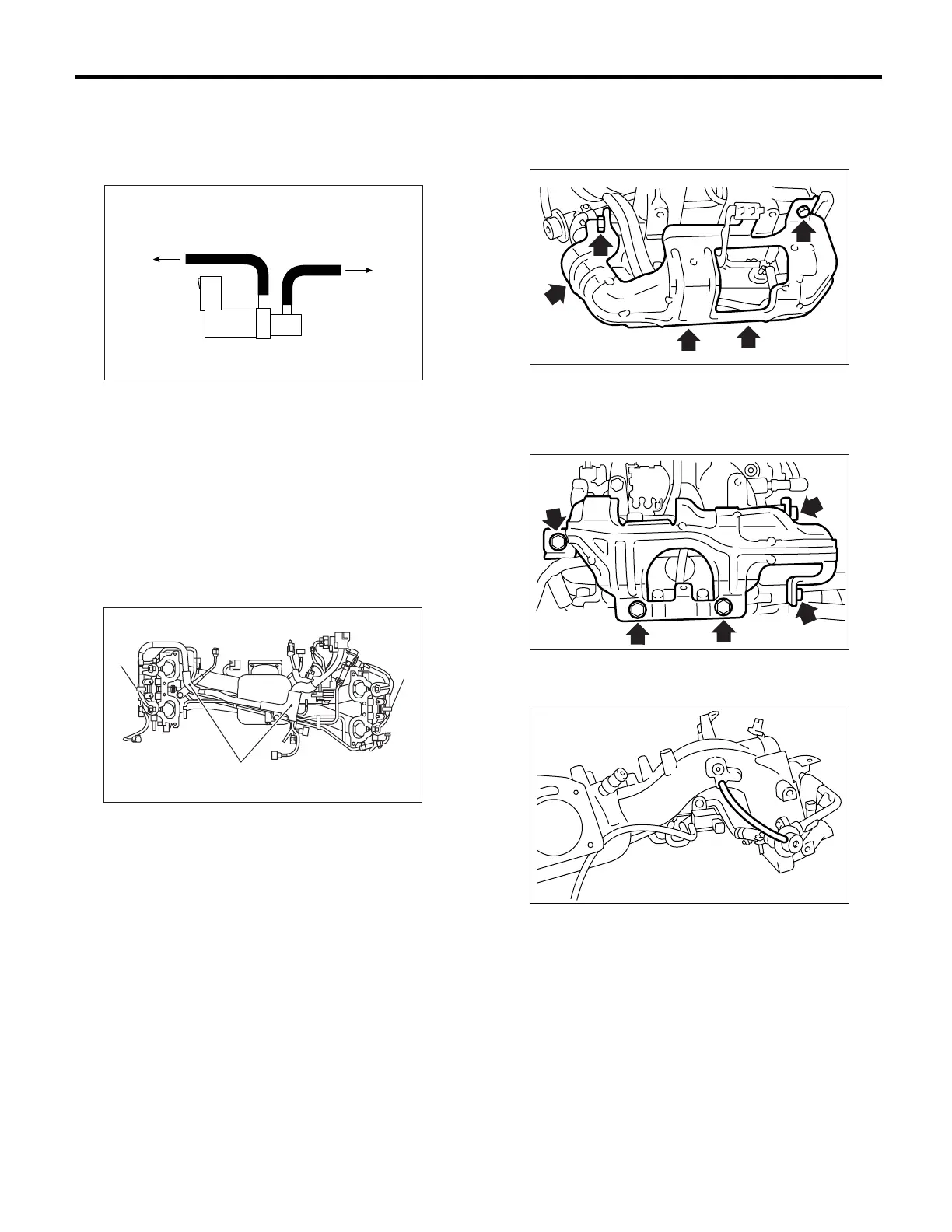

11) Connect the hoses to the purge control sole-
noid valve.
NOTE:
Carefully connect the evaporation hoses.
12) Install the engine harness onto intake manifold.
Tightening torque:
16 N·m (1.6 kgf-m, 11.8 ft-lb)
13) Connect the connectors to the fuel injectors
and purge control solenoid valve.
14) Hold the engine harness by harness band (A)
and harness bracket (B).
NOTE:
Do not use harness bands on the harnesses which
are supposed to be protected by fuel pipe protec-
tor.
15) Install the fuel pipe protector RH.
Tightening torque:
19 N·m (1.9 kgf-m, 14.0 ft-lb)
16) Install the fuel pipe protector LH.
Tightening torque:
19 N·m (1.9 kgf-m, 14.0 ft-lb)
17) Connect the pressure regulator vacuum hose
to intake manifold.
A: To fuel pipe
B: To throttle body
FU-00285
A
B
FU-00923
( A )
( A )
( B )
FU-00267
FU-00266
FU-00265
