FU(H4SOw/oOBD)-37
FUEL INJECTION (FUEL SYSTEMS)
Fuel Injector

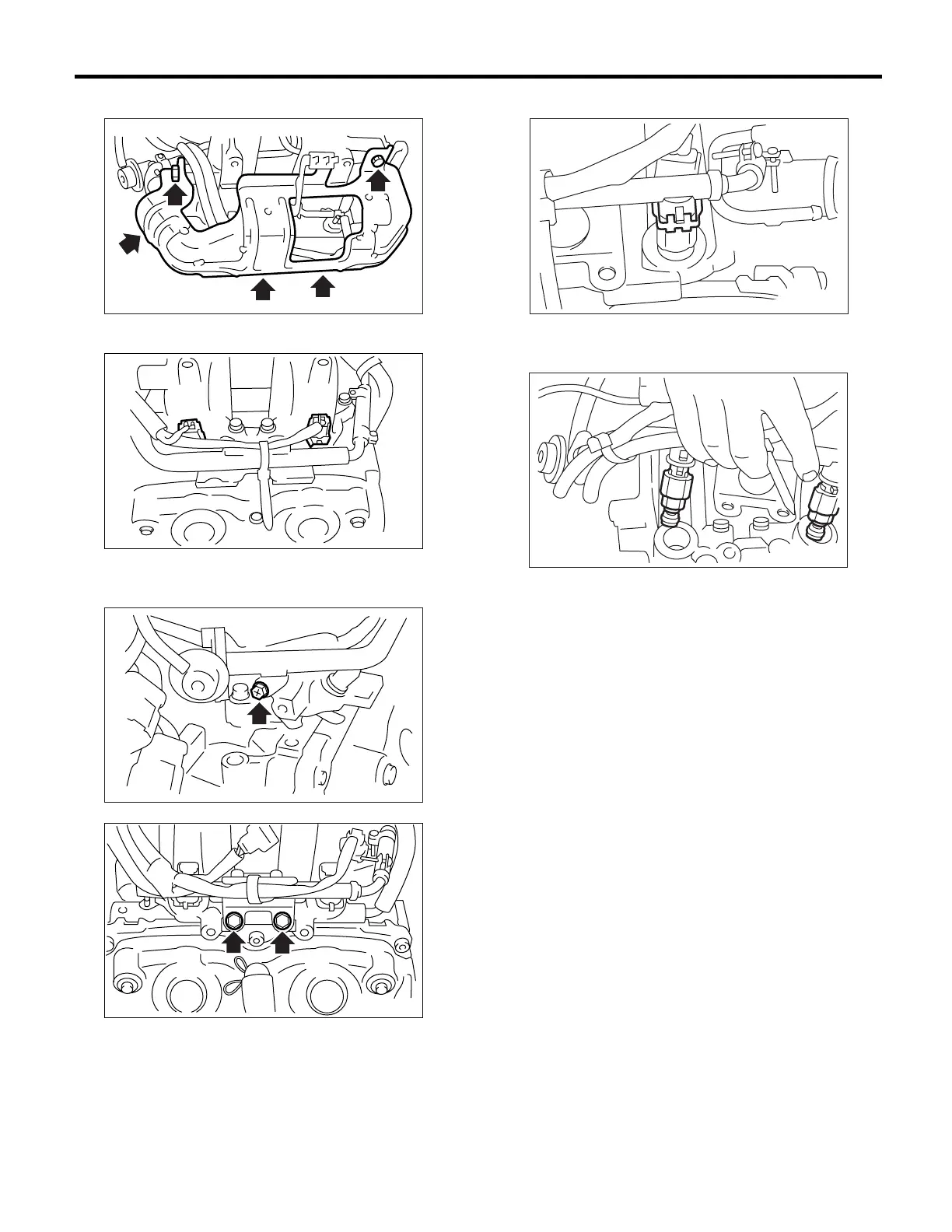

7) Remove the fuel pipe protector RH.
8) Disconnect the connector from fuel injector.
9) Remove the bolts which hold the fuel injector
pipe to intake manifold.
10) Remove the fuel injector from intake manifold.
(1) Remove the fuel injector securing clip.
(2) Remove the fuel injector while lifting up the
fuel injector pipe.
FU-00267
FU-00303
FU-00304
FU-00284
FU-00939
FU-00940
To Next Page
