FU(H4SOw/oOBD)-39
FUEL INJECTION (FUEL SYSTEMS)
Fuel Injector

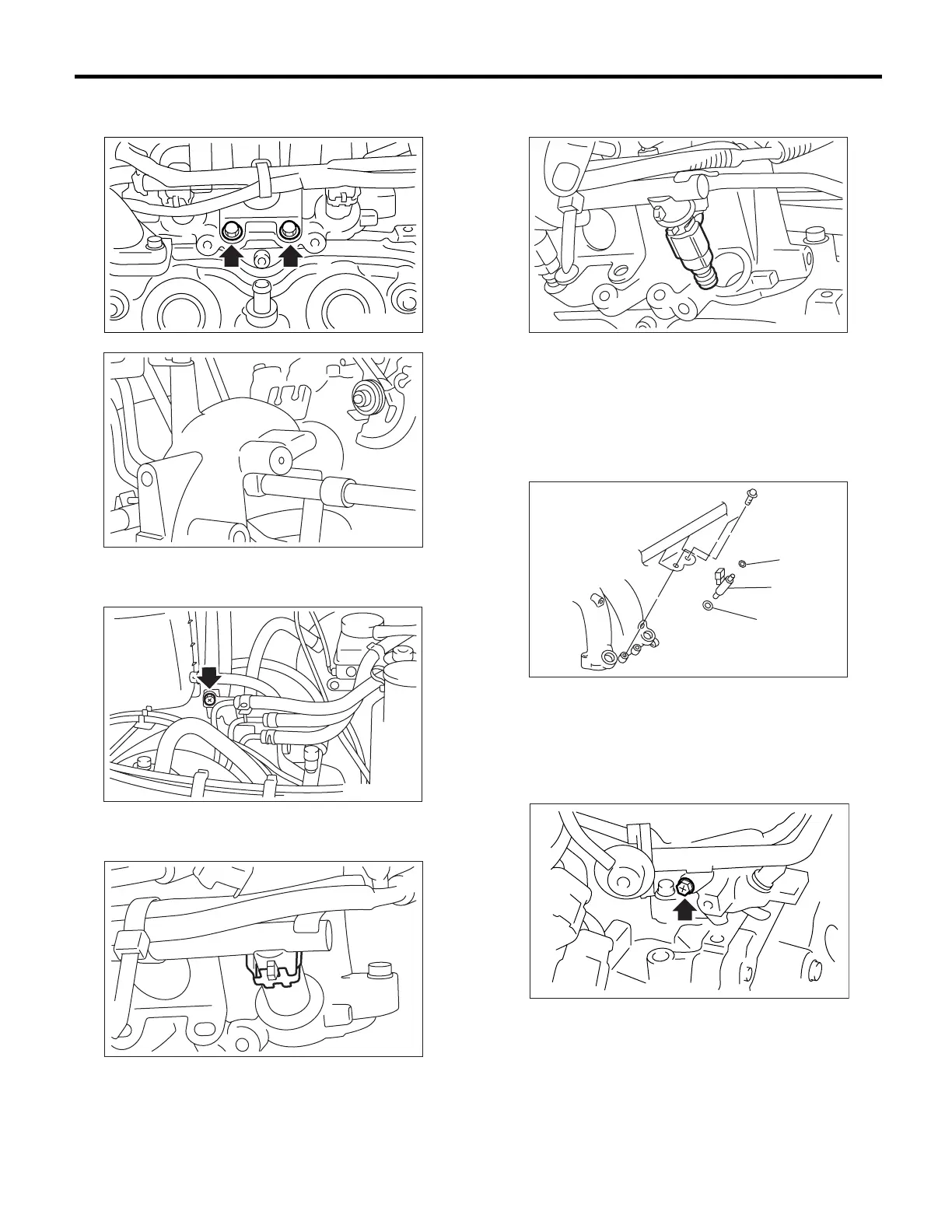

12) Remove the bolt which installs the fuel injector
pipe to intake manifold.
13) Remove the bolt which holds the fuel pipe on
intake manifold.
14) Remove the fuel injector from intake manifold.
(1) Remove the fuel injector securing clip.
(2) Remove the fuel injector while lifting up the
fuel injector pipe.
B: INSTALLATION
1. RH SIDE
Install in the reverse order of removal.
NOTE:
Replace the O-rings with new ones.
Tightening torque:
6.4 N·m (0.65 kgf-m, 4.7 ft-lb)
FU-00309
FU-00942
FU-00943
FU-00944
(A) O-ring
(B) Fuel injector
FU-00945
FU-00931
( A )
( A )
( B )
FU-00304
To Next Page
