FU(H4SOw/oOBD)-55
FUEL INJECTION (FUEL SYSTEMS)

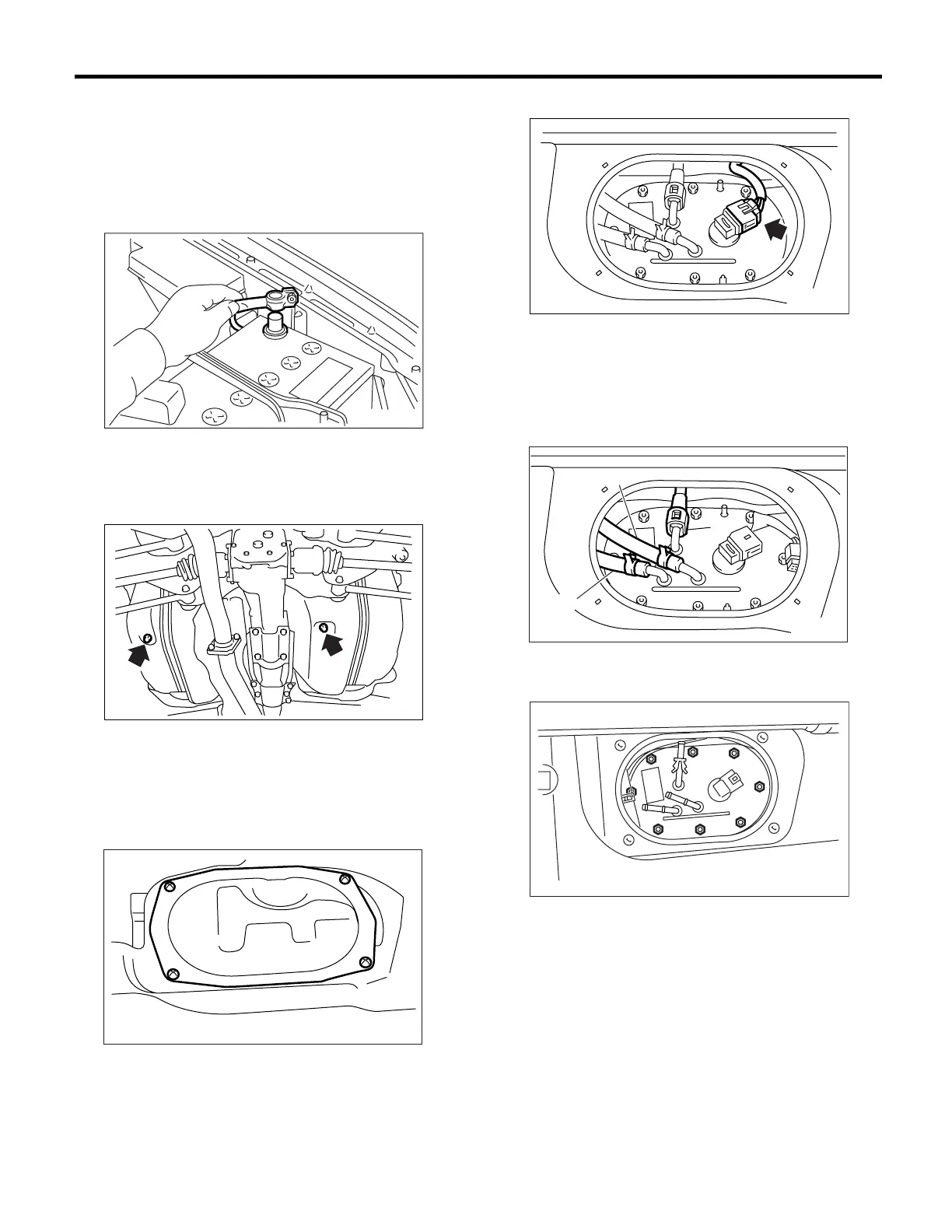

Fuel Pump
• 2.5 L MODEL
1) Release the fuel pressure. <Ref. to FU(H4SOw/
oOBD)-46, RELEASING OF FUEL PRESSURE,
OPERATION, Fuel.>
2) Open the fuel filler flap lid and remove the fuel
filler cap.
3) Disconnect the ground cable from battery.
4) Lift-up the vehicle.
5) Drain fuel from fuel tank. Set a container under
the vehicle and remove the drain plug from fuel
tank.
6) Tighten the fuel drain plug.
Tightening torque:
26 N·m (2.7 kgf-m, 19.2 ft-lb)
7) Raise the rear seat and turn the floor mat up.
8) Remove the access hole lid.
9) Disconnect the connector from fuel pump.
10) Disconnect the quick connector, and then dis-
connect the fuel delivery hose (A). <Ref. to
FU(H4SOw/oOBD)-62, REMOVAL, Fuel Delivery,
Return and Evaporation Lines.>
11) Move the clips, and then disconnect the fuel re-
turn hose (B) and jet pump hose (C).
12) Remove the nuts which install the fuel pump
assembly onto fuel tank.
13) Take off the fuel pump assembly from fuel tank.
FU-00009
FU-00089
FU-00105
FU-00106
(B)
(A)
(C)
FU-00948
FU-00108
To Next Page
