FU(H4SOw/oOBD)-58
FUEL INJECTION (FUEL SYSTEMS)
Fuel Sub Level Sensor

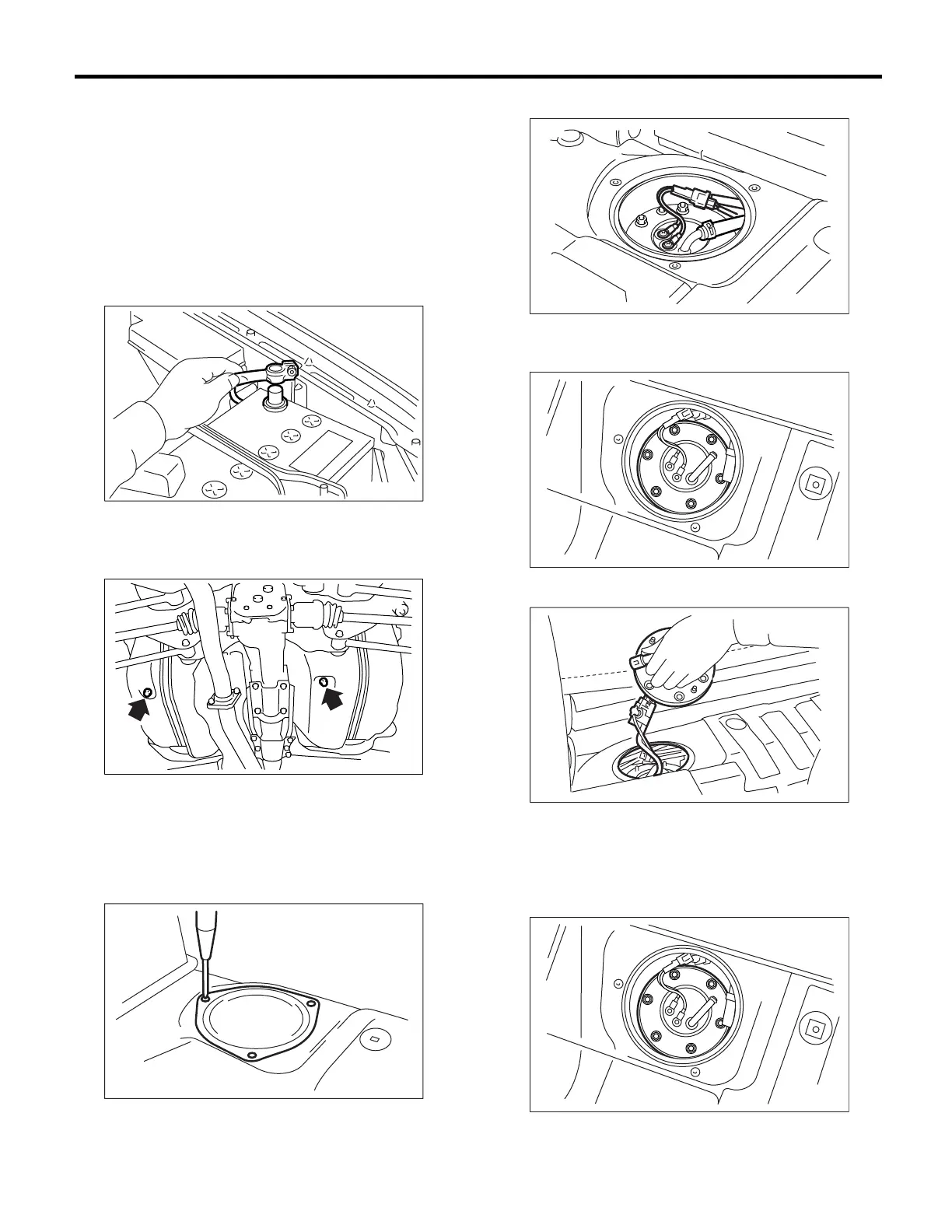

21.Fuel Sub Level Sensor
A: REMOVAL
NOTE:
Fuel sub level sensor is equipped to only 2.5 L
model.
WARNING:
• Place “NO FIRE” signs near working area.
• Be careful not to spill fuel on floor.
1) Disconnect the ground cable from battery.
2) Lift-up the vehicle.
3) Drain fuel from fuel tank. Set a container under
vehicle and remove the drain plug from fuel tank.
4) Tighten the fuel drain plug.
Tightening torque:
26 N·m (2.7 kgf-m, 19.2 ft-lb)
5) Remove the rear seat.
6) Remove the service hole cover.
7) Disconnect the connector from fuel sub level
sensor.
8) Disconnect the fuel jet pump hose.
9) Remove the bolts which install the fuel sub
meter unit on fuel tank.
10) Remove the fuel sub level sensor.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
4.4 N·m (0.45 kgf-m, 3.3 ft-lb)
FU-00009
FU-00089
FU-00113
FU-00114
FU-00115
FU-00116
FU-00115
