EX(H4SOw/oOBD)-6
EXHAUST
Front Exhaust Pipe
2. Front Exhaust Pipe

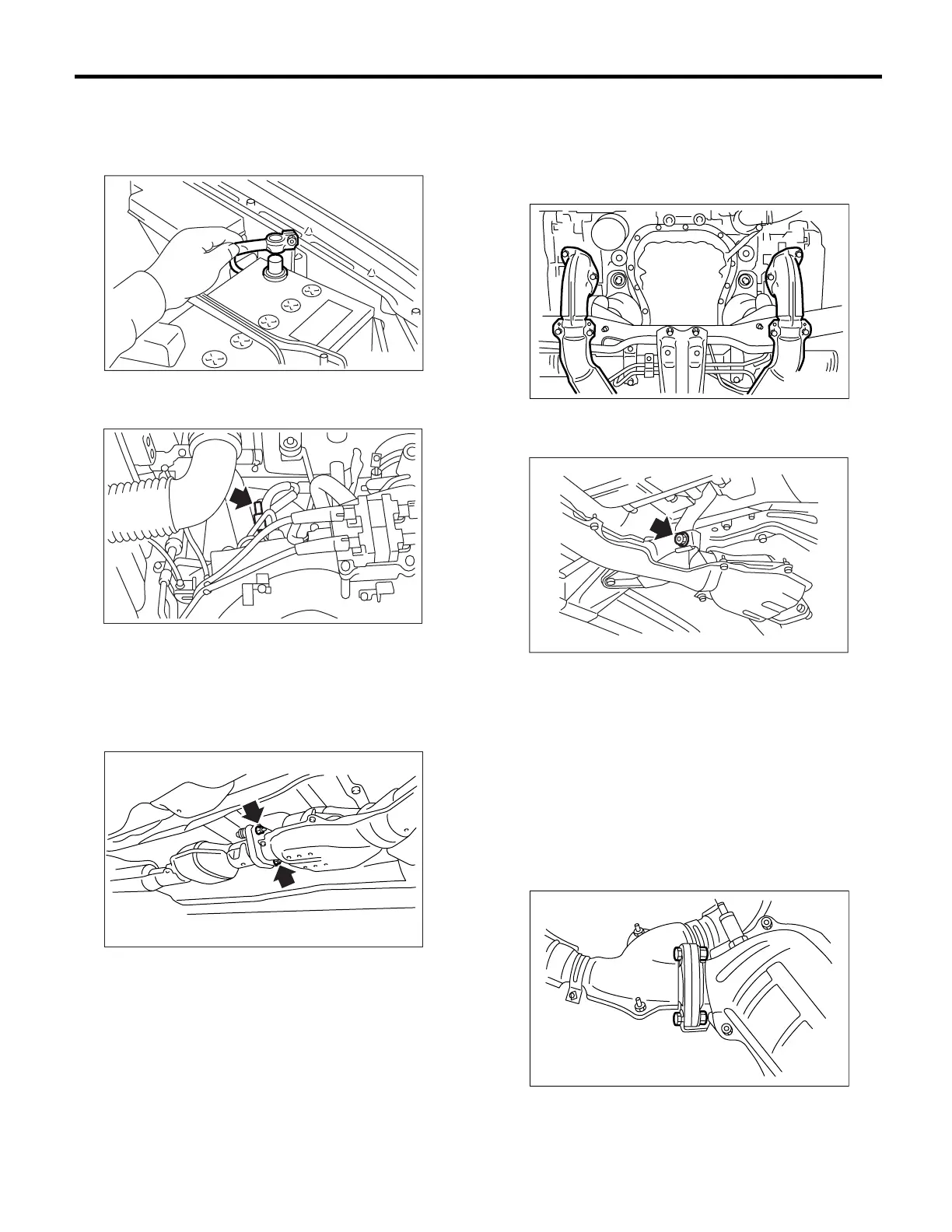

A: REMOVAL
1) Disconnect the ground cable from battery.
2) Disconnect the oxygen sensor connector. (With
catalytic converter)
3) Lift-up the vehicle.
4) Separate the front and center exhaust pipe as-
sembly from rear exhaust pipe.
WARNING:
Be careful, the exhaust pipe is hot.
5) Remove the under cover.
6) Remove the nuts which hold the front exhaust
pipe onto cylinder heads.
CAUTION:
Be careful not to pull down the front and center
exhaust pipe assembly.
7) Remove the bolt which installs the front and cen-
ter exhaust pipe assembly to hanger bracket.
8) Remove the front and center exhaust pipe as-
sembly from vehicle.
CAUTION:
• Be careful not to let the front and center ex-
haust pipe assembly fall off when removing as
it is quite heavy.
• After removing the front and center exhaust
pipe assembly, do not apply excessive pulling
force on the rear exhaust pipe.
9) Separate the front exhaust pipe from center ex-
haust pipe.
10) Remove the oxygen sensor. (With catalytic
converter) <Ref. to FU(H4SOw/oOBD)-41, RE-
MOVAL, Oxygen Sensor.>
FU-00009
EX-00152
EX-00031
EC-00009
EX-00038
EC-00011
To Next Page
