Sumitomo TYPE-71c - Splicer Structure Overview; Main body and keypad

1-5

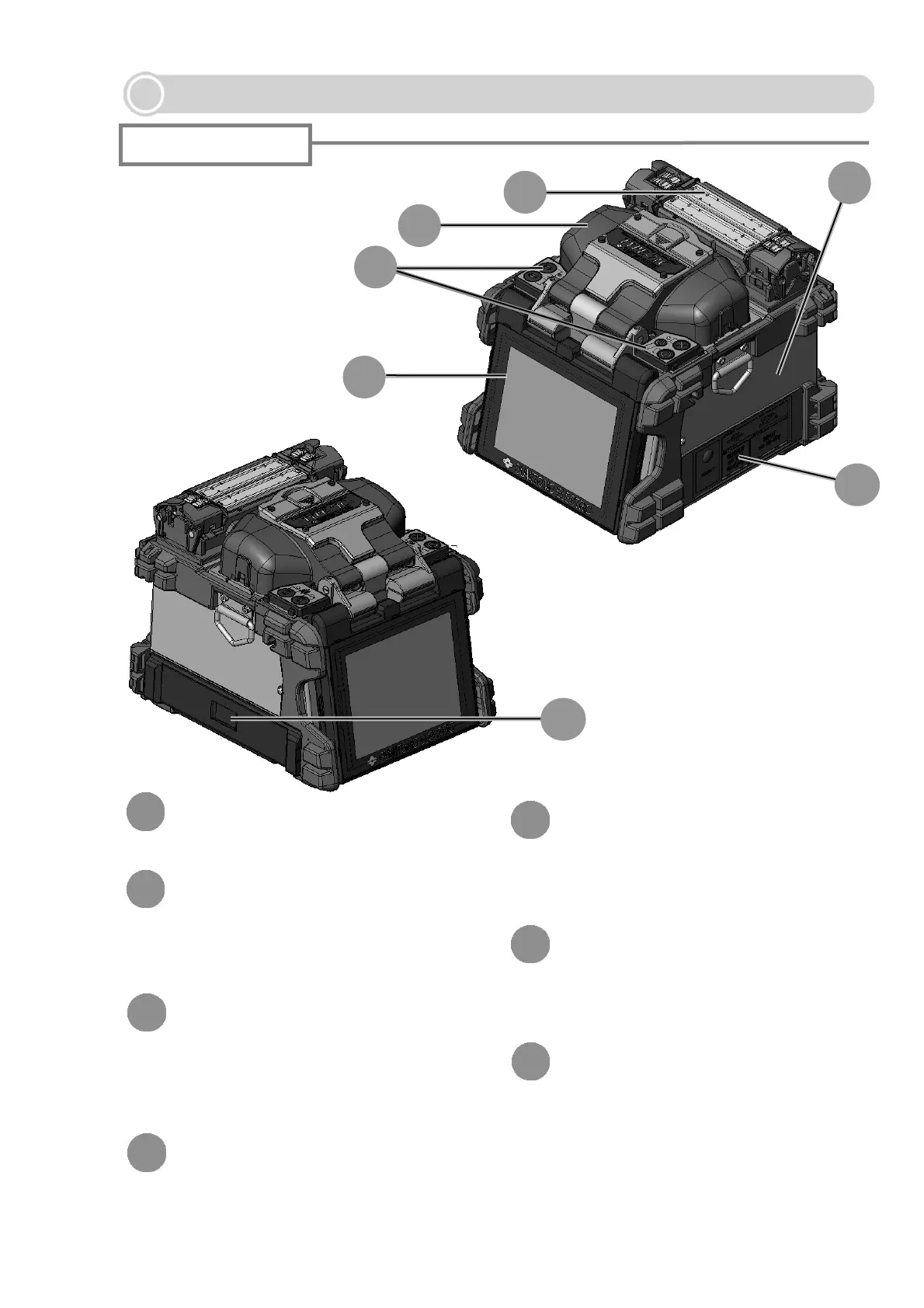

Structure
Fusion splicer
2
3
4
6
7
Heat shrink oven
Used to heat and shrink fiber
protection sleeves. 2 heat shrink
ovens (front and rear) are equipped.
Battery pack slot
Battery is installed in this slot with
protection lid.
Input/output panel
DC output terminal for hot jacket
remover and USB port
6
5
7
3
4
2
１
Main body
TYPE-71C fusion splicer
Keypad
Keys are used to turn on/off the power,
perform a splice and heat shrink
protection, and setup functions.
Touch screen monitor
Displays fiber image, splice data and
menu. Touch screen operation enables
to start splicing, heating and feature
setting.
Hood
Provides protection from the
environment.
