Sumitomo TYPE-71c - Drop Cable Splicing; Applicable cable types; Required items for drop cable splicing; Preparation for drop cable splicing

To Next Page

To Previous Page

2-22

Applicable cable

Required items

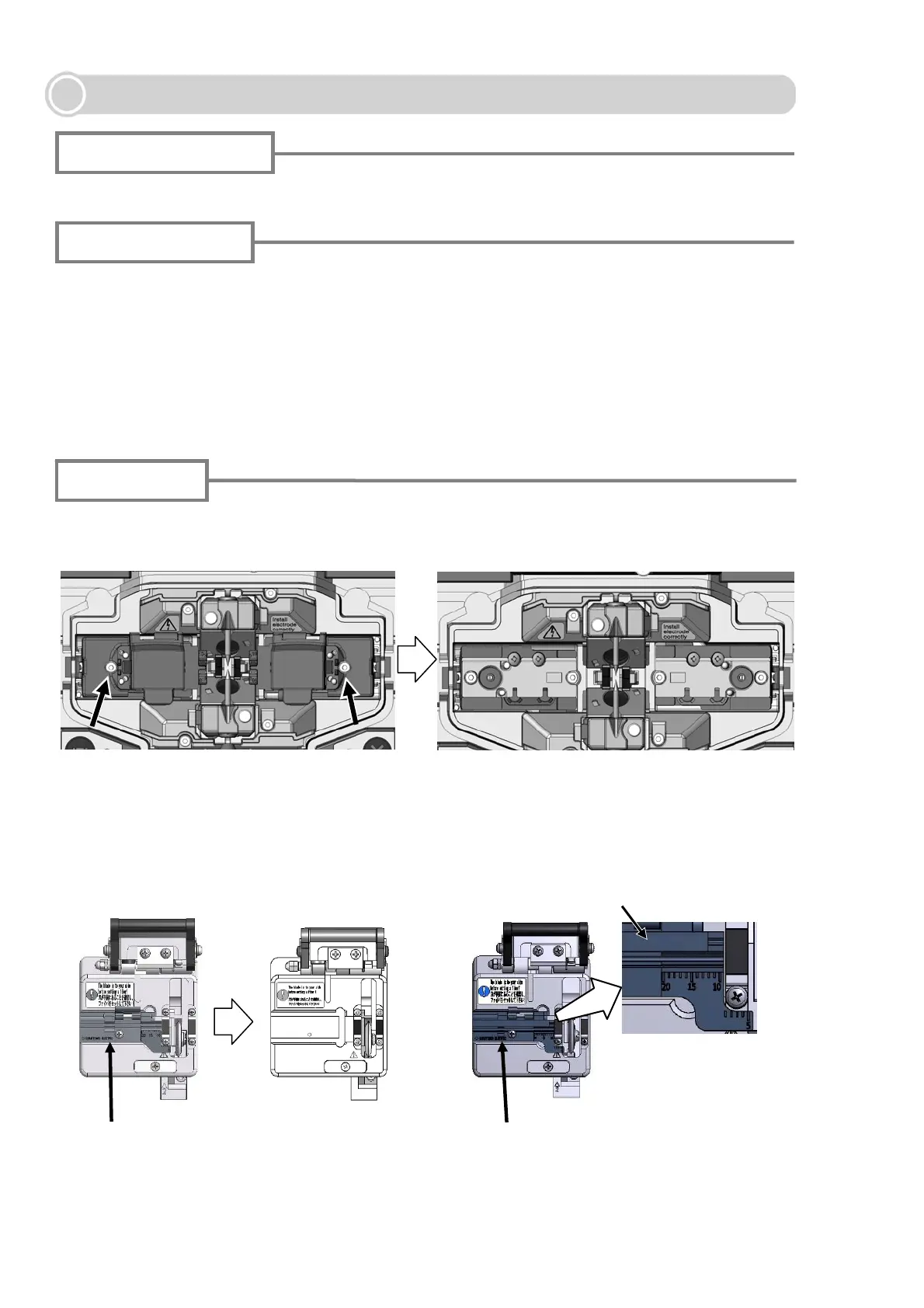

Preparation

Factory default Fiber coating clamp is removed.

AP-FC6M

(Groove for drop cable is not available.)

AP-FC6SA

(Groove for drop cable is available.)

Groove for drop cable

Remove the single fiber adapter.

▪ Tight buffer type single fiber drop cable.

▪ Fusion splicer (TYPE-71C)

▪ Allen key 1.5 (included in fusion splicer kit)

▪ Cross-recessed screwdriver

▪ Nippers

▪ Jacket remover

▪ Fiber cleaver

▪ Fiber holders for drop cable

▪ Using the Allen key, remove the fiber coating clamp from the splicer.

▪ If the single fiber adapter AP-FC6M is attached to the cleaver, it must be removed.

▪ If the single fiber adapter AP-FC6SA is attached to the cleaver, it does not need to be

removed and can be used as it is.

Drop cable splicing
