Sumitomo TYPE-71c - Fiber Preparation Procedures; Using AP-FC6 SA single fiber adapter

2-24

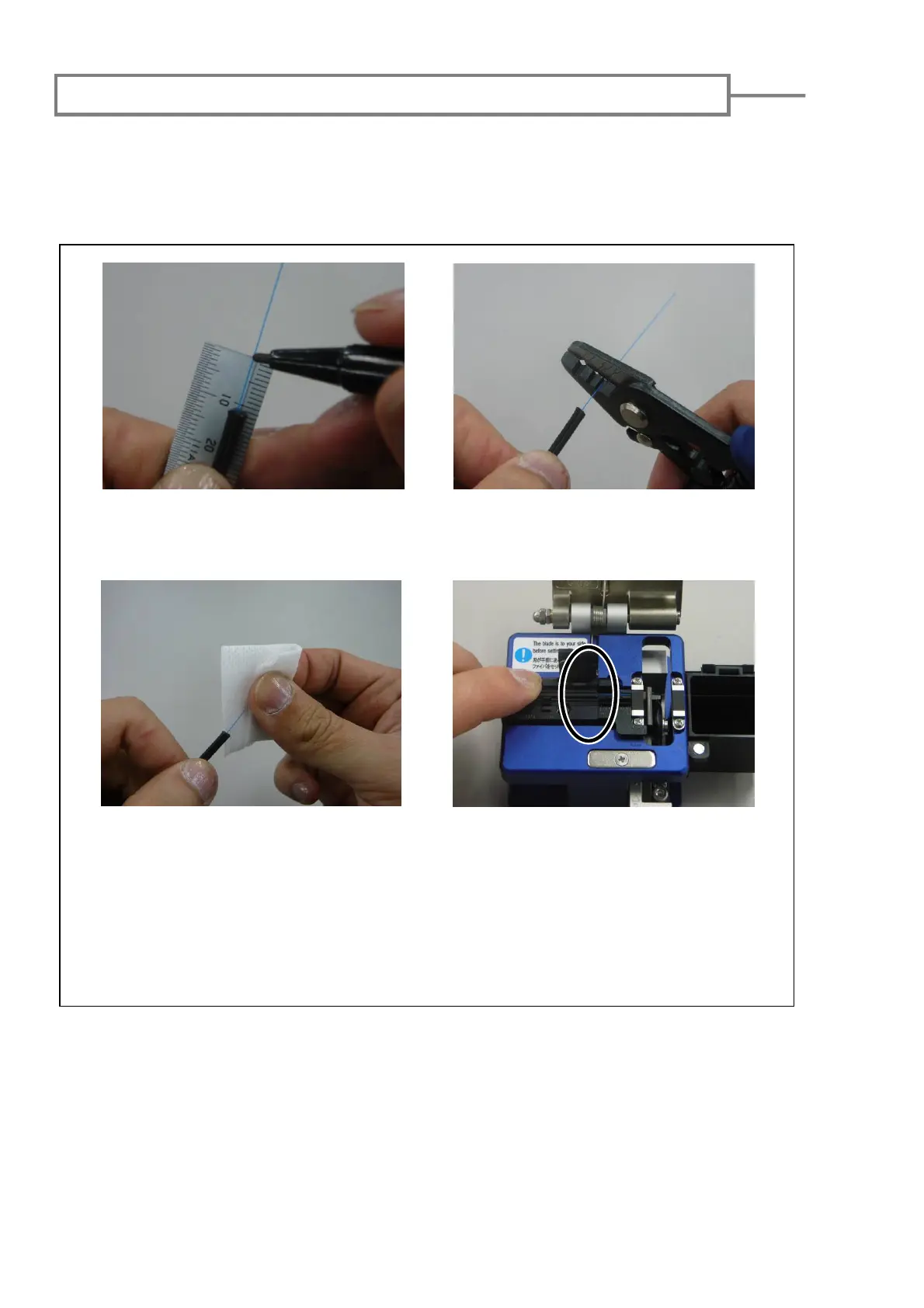

Fiber preparation procedures 1 (AP-FC6SA is available)
This section outlines fiber preparation procedures in using a fiber cleaver with a single
fiber adapter (AP-FC6SA). If your fiber cleaver does not have the single fiber adapter or
a single fiber adapter attached to your cleaver is AP-FC6M, please refer to the
procedures 2.
2. Remove the fiber coating from
the mark using a jacket remover.
1. Put a mark at 10~12mm away
from the cable end.
3. Clean the bare fiber from the
end of the fiber coating with a
gauze pad moistened with pure
alcohol. Pull the bare fiber
through the gauze pad and
rotate the fiber to remove any
coating residue.
4. Place the cable in the groove for
drop cable on the cleaver,
aligning the cable end with the
end of the single fiber adapter.
Cleave the fiber referring to the
cleaver instructions.
