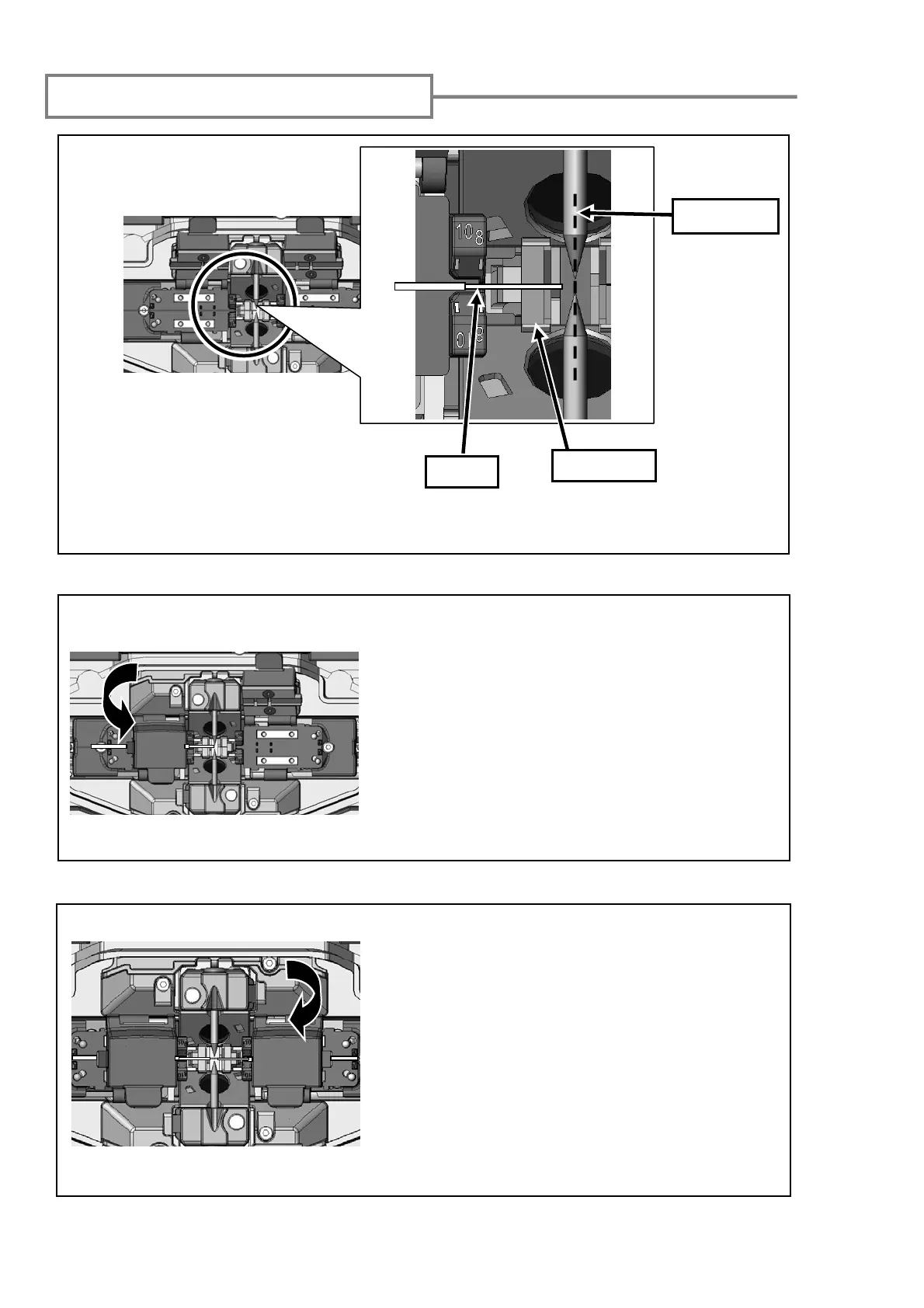

Sumitomo TYPE-71c - Inserting fibers into the splicer

2-12
1: Set the fiber end between the edge of v-groove and the electrode.
Inserting fibers into the splice
r
0: Open the hood.
2: Close the fiber coating clamp lid.
Do not touch the fiber end face
against any surface.
3: Repeat step 1 to 2 for the other fiber.
4: Close the hood.
5: Start an arc test or the splicing process.
V-groove
Fiber
Electrode
