5-4
1.
4.
2.
3.
The bare fiber pad is moved in conjunction with the opening and closing of the hood. It
can be separated from the hood to check to see if the fiber is clamped properly.
The clamping condition can be corrected independently by moving clamp one by one.

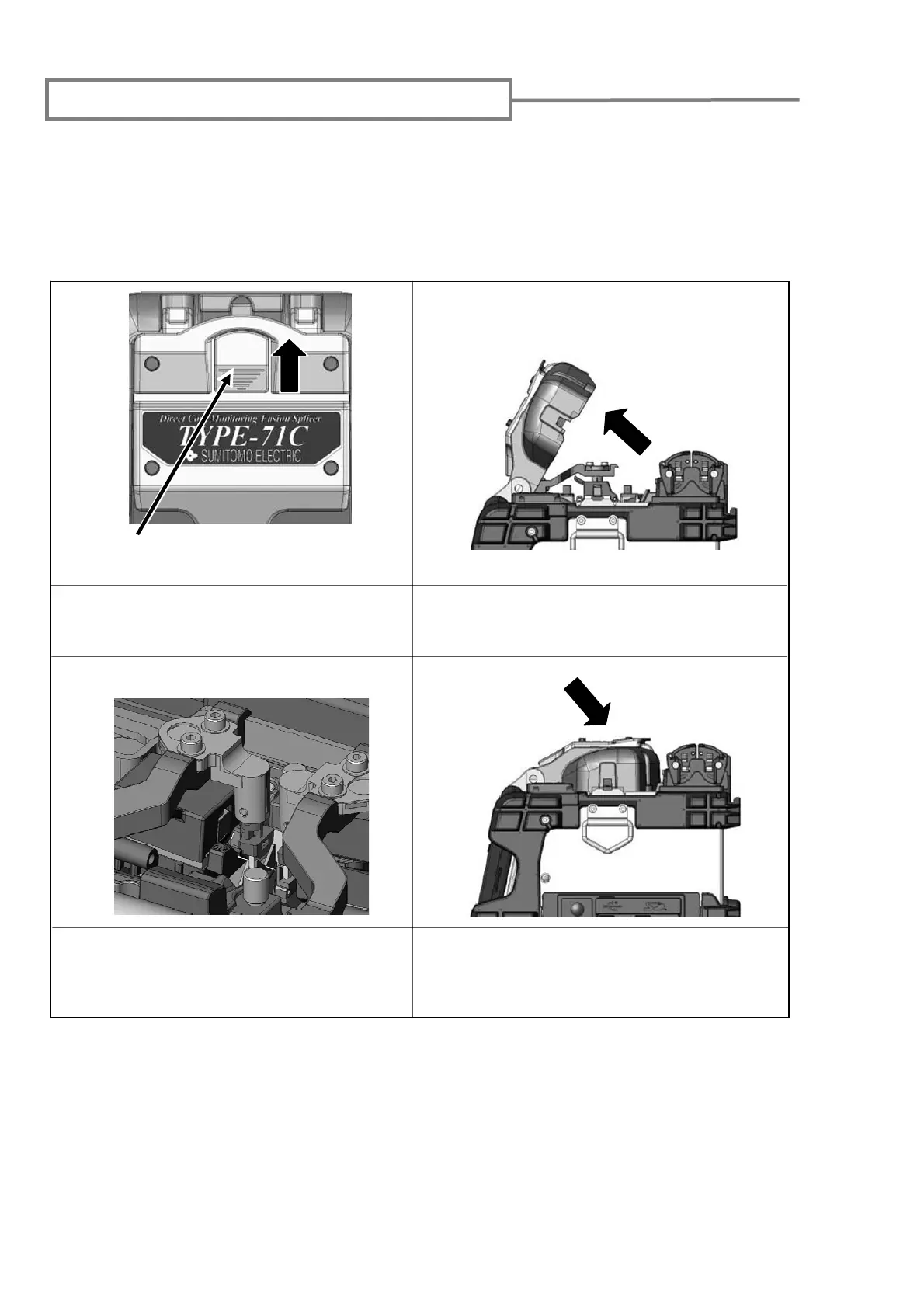

Detachable/attachable bare fiber pads
Detaching and attaching bare fiber pads
Slide the bare fiber pad release button in
the direction indicated by the arrow.
When the hood is opened, the bare fiber
pad is removed from the hood.
When the hood is closed, the hood catches
the bare fiber pad. The hood and the pad
are moved together.
You can check if the fiber is placed
seated in the V-groove properly by the
pad.
Bare fiber pad release button
