Sumitomo TYPE-71c - Heat Shrink Oven and Input;Output Panel; Heat shrink oven description; Input;output panel functions

1-8

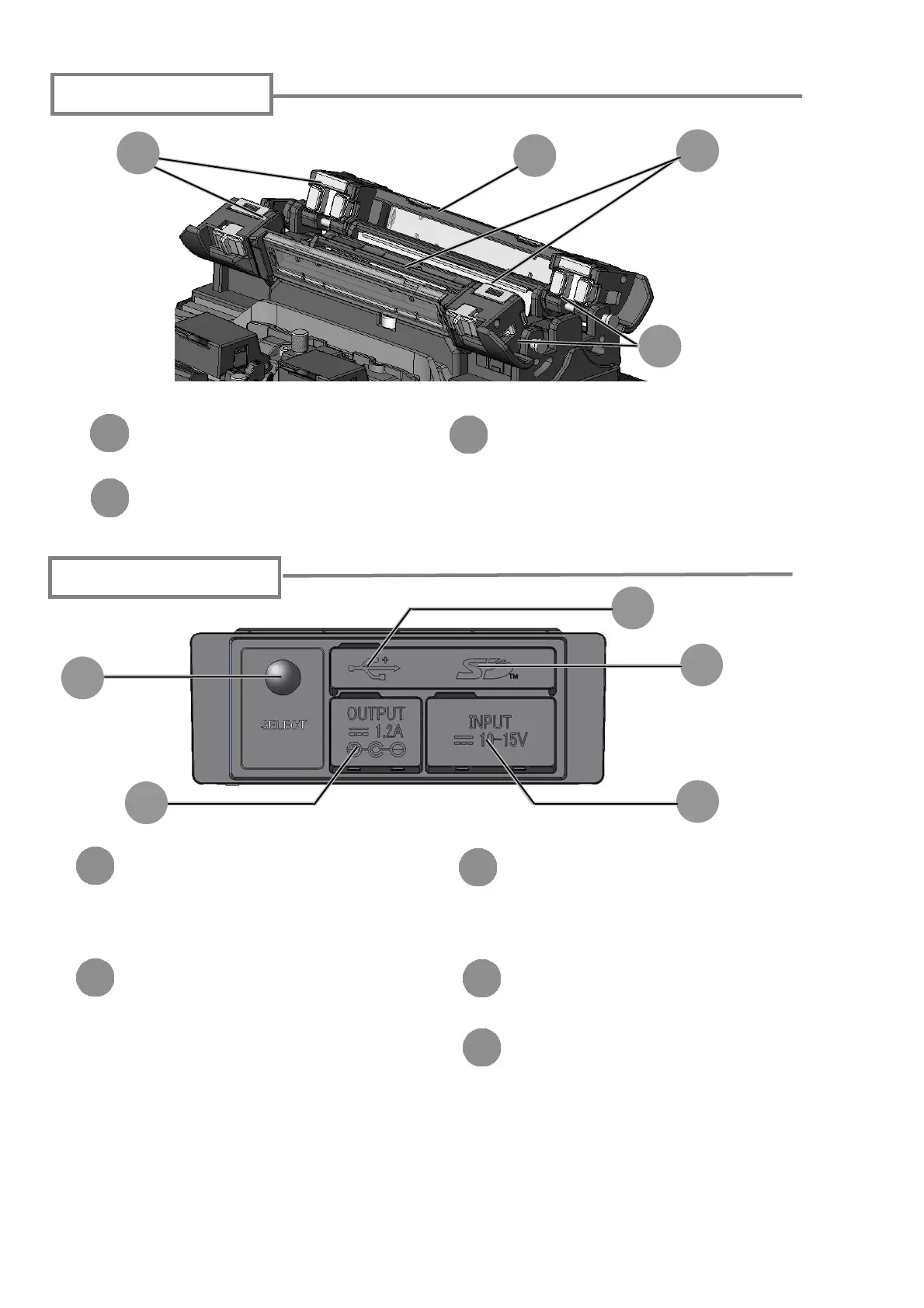

Heat shrink oven
Input/output panel
1
2
Heating plate
Heats fiber protection sleeve.
Heat shrink oven clamps
Hold fibers straight.
3
Heat shrink oven lid
2
3
2
1
3
5
1
2
4
Select switch
Refer to page 1-6.
DC output terminal
Used to supply DC power to a hot
jacket remover.
SD card slot
for splice data output.
DC input terminal
input power via AC adapter.
USB port
Used to download stored splice
loss data when connected to a
PC.
1
2
5
4
3
