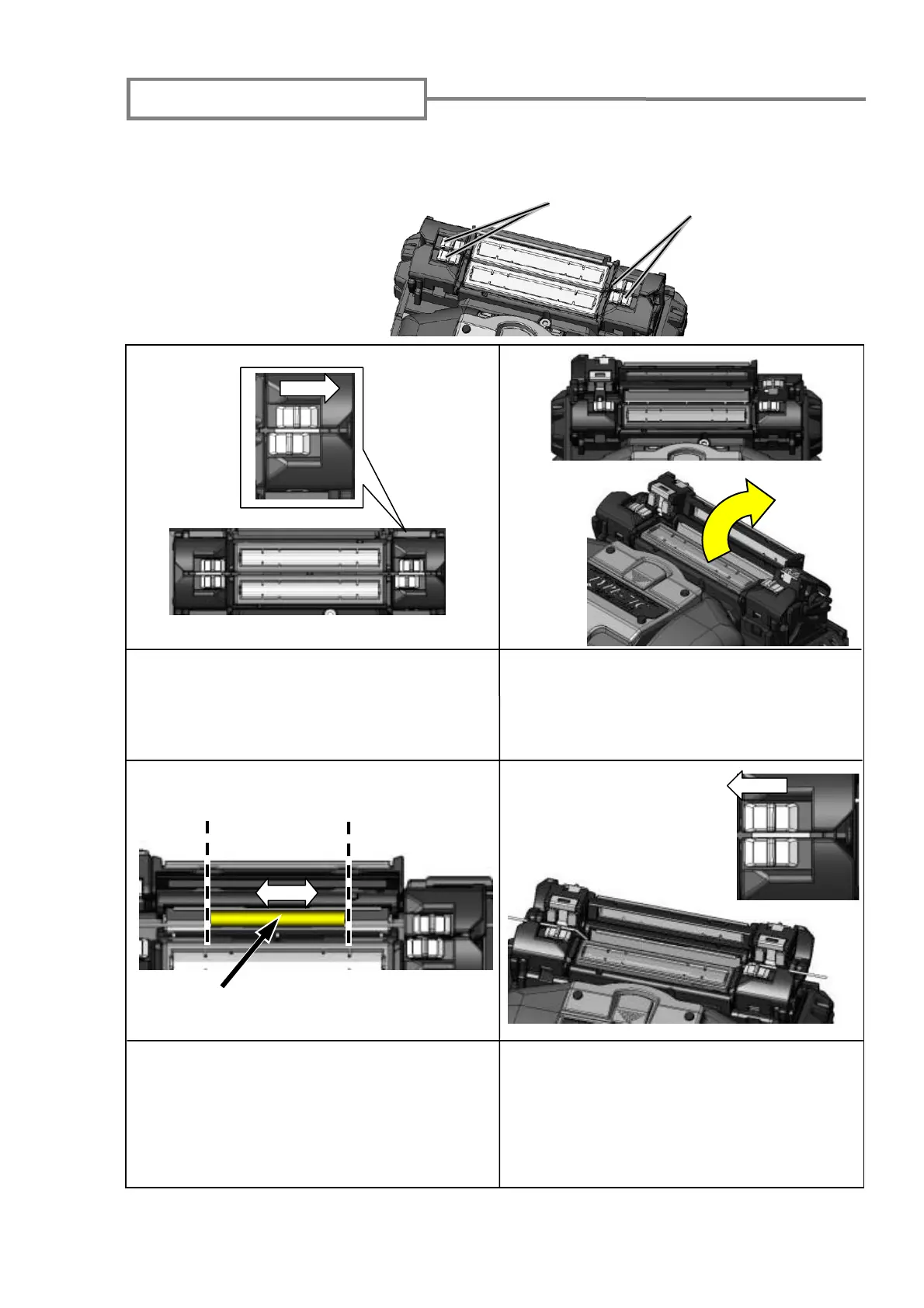

Sumitomo TYPE-71c - Heater Clamp Operation

5-5
<Changing the operation>
Heater lid and heater clamp can be detached, or be synchronized by moving the lever
of the heater clamp of both left and right.
4.
The clamp lid and the heater lid move
together by moving the heater clamp
lever to the direction of the arrow.
3.
The position of the protection sleeve can
be adjusted by hand when the movement
of the heater lid and heater clamp is
separated.
*40mm sleeve is appeared in this
example.
Protection sleeve
40mm sleeve end
Move the heater clamp lever to the
direction of the arrow.
*Only right side lever is moved in this
example.
1.
2.
The clamp lid and the heater lid move
separately.
Heater clamp lever
Heater clamp operation
