2-10
Cleaving the fiber
Cleave the fiber. (An example shows use of Sumitomo FC-6S cleaver, cleave length shown apply
to any cleaving tool. If you use other models of cleavers, please refer to the operation manual.)
Applicable cleave length: 5mm-16mm (with Sumitomo FC-6S-5C cleaver)
(Over 250μm coating diameter with the length less than 8mm requires fiber holder operation.)

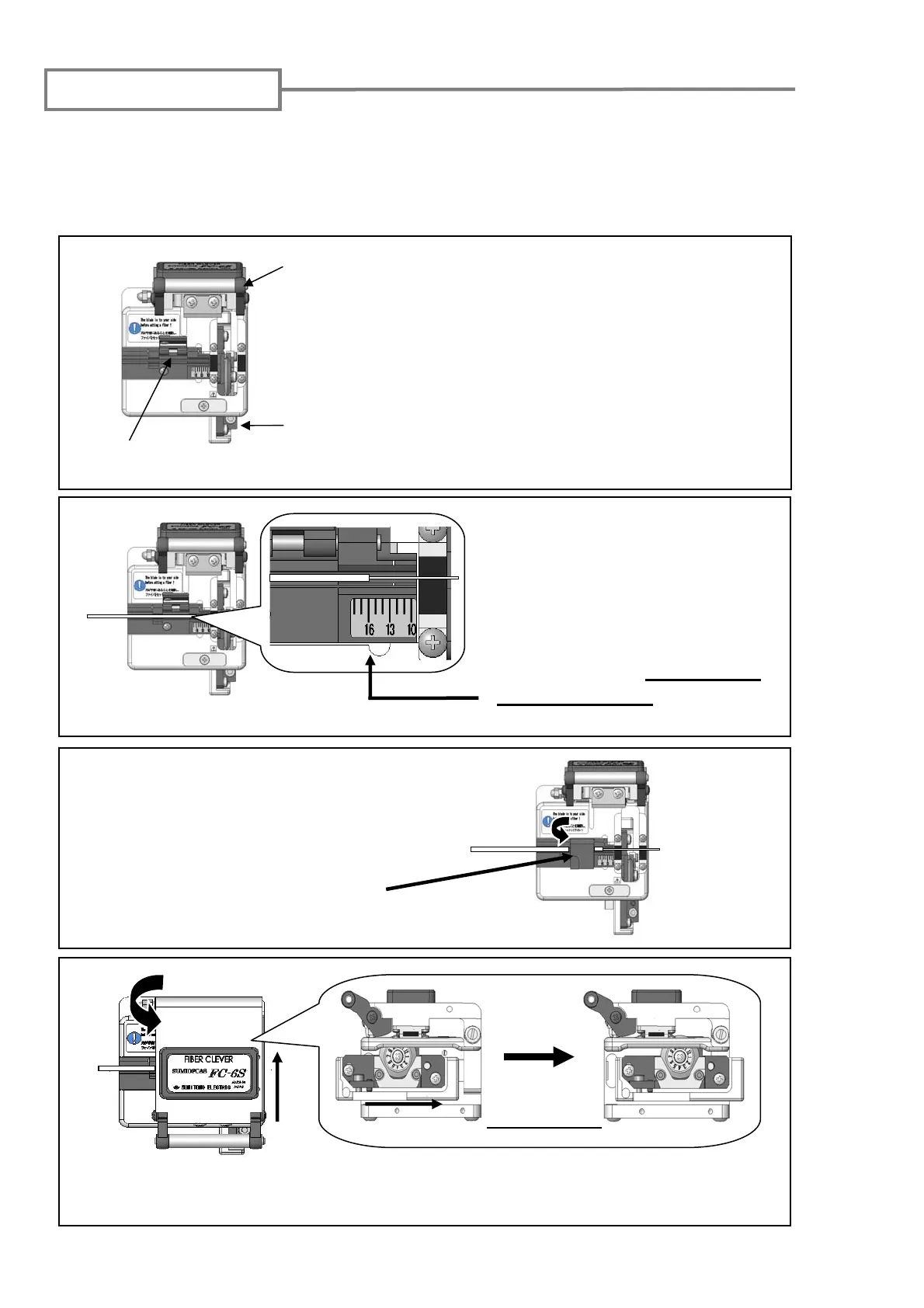

Open the top clamp lever and the coating
clamp lid. The blade carriage should be in the
forward position.
Blade carriage
Top clamp lever
Coating clamp lid
1:
2:
Lower the fiber into the correct
V-groove with the end of the
fiber coating (e.g. if the cleave
length is 16mm) at the 16mm
mark on the ruler.
3:
Close the coating clamp lid.
4:
Lower the top clamp lever. Slide the blade carriage to the rear of the cleaver as
indicated by the arrow.
Cleave the fiber
