ATTENTION: If the core holders are not used (not recommended – tracking is not
guaranteed), then make sure that the roll is situated between the two core holder
guides.

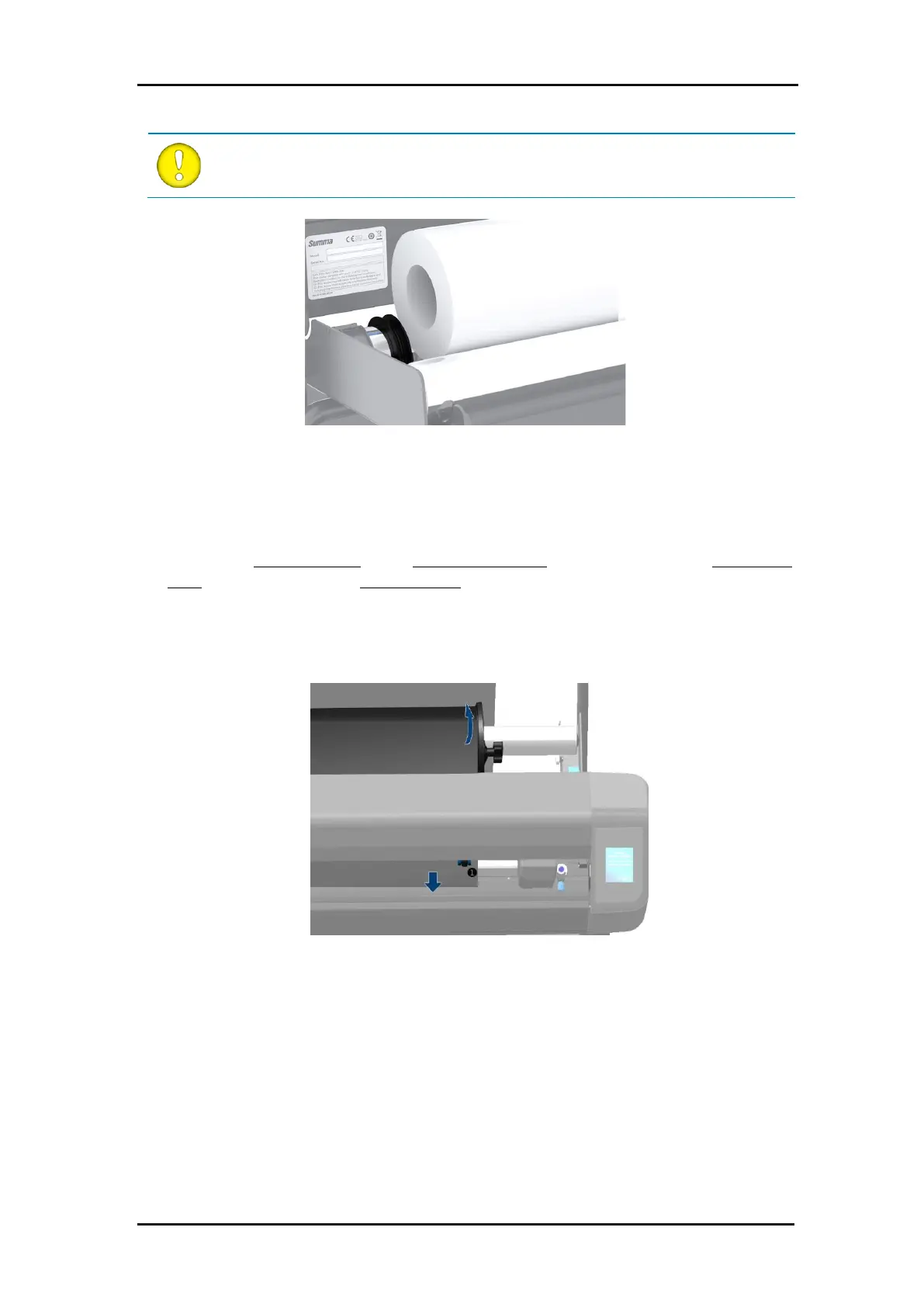

FIG 1-10
1-10 FEEDING ROLL MEDIA WITHOUT USING THE CORE HOLDERS
5. Start feeding the media from the rear of the machine. Pass the media underneath the pinch
rollers towards the front of the machine.
6. Position the left media edge on the left-most grit roller and check whether the right media
edge is positioned over the long grit roller. Then position the left and right pinch rollers.
The pinch rollers should be positioned over the grit rollers about 3 to 15 mm (0.1” to 0.6”)
away from the media’s outer edges . Then pull on the media while holding the core
holder at the back, so the media is tight.
FIG 1-11
1-11 MEDIA POSITION
If the above procedure does not work, e.g., because the media is too narrow to reach the
long grit roller, try positioning the left media edge over the second left grit roller and the
right media edge somewhere over the long grit roller. Continue moving the left pinch roller
towards the long grit roller until both pinch rollers are in their designated position and
directly over the edges of the vinyl.
In all cases, both edges of the media must cover a grit roller. If this is not the case,
reposition the material roll to cover the grit roller.
