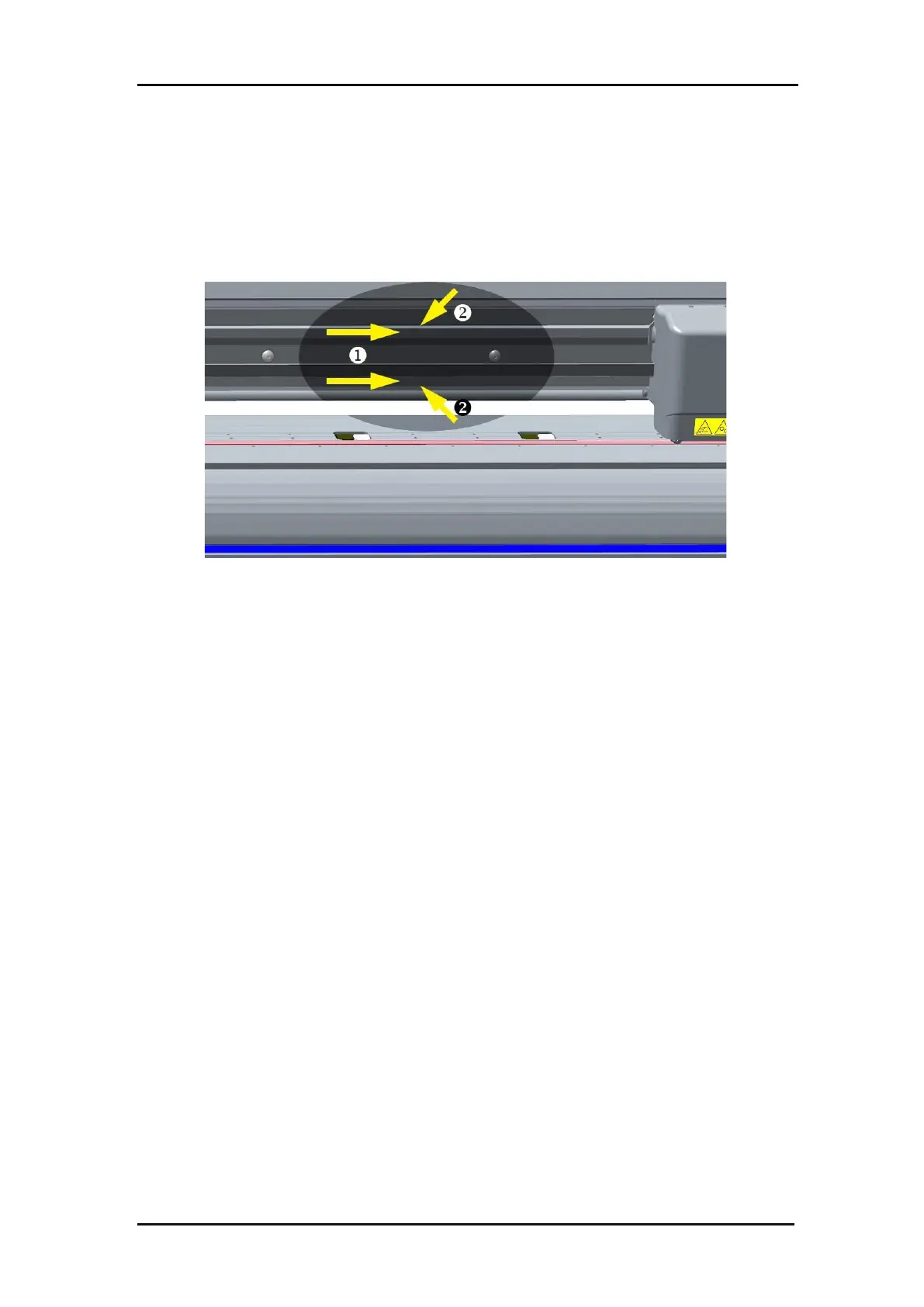

There are 4 sliding surfaces on the Y guiding rail on which the tool carriage slides from left to
right. Two sliding surfaces (1) at the front of the guiding rail and 2 sliding surfaces at the rear
of the guiding rail (2), directly behind the visible sliding surfaces at the front. Although the
shape of the Y guiding rail may vary from model to model, the sliding surfaces are in the same
place at the top and bottom of the guiding rail.
FIG 5-3
5-3 SLIDING SURFACES ON Y GUIDING RAIL
Over time, the sliding surfaces and the rollers of the tool carriage may become dirty with
accumulated residue.
Cleaning the sliding surfaces of the Y-guide rail:
1. Switch off the machine.
2. Take a soft cloth dampened with isopropyl alcohol or a mild detergent.
3. Clean the surfaces. When the tool carriage is in the way, carefully move it to the left or
right.
