Although it is an internal parameter, it must be set in the Print and Cut software. The following
options are usually available:

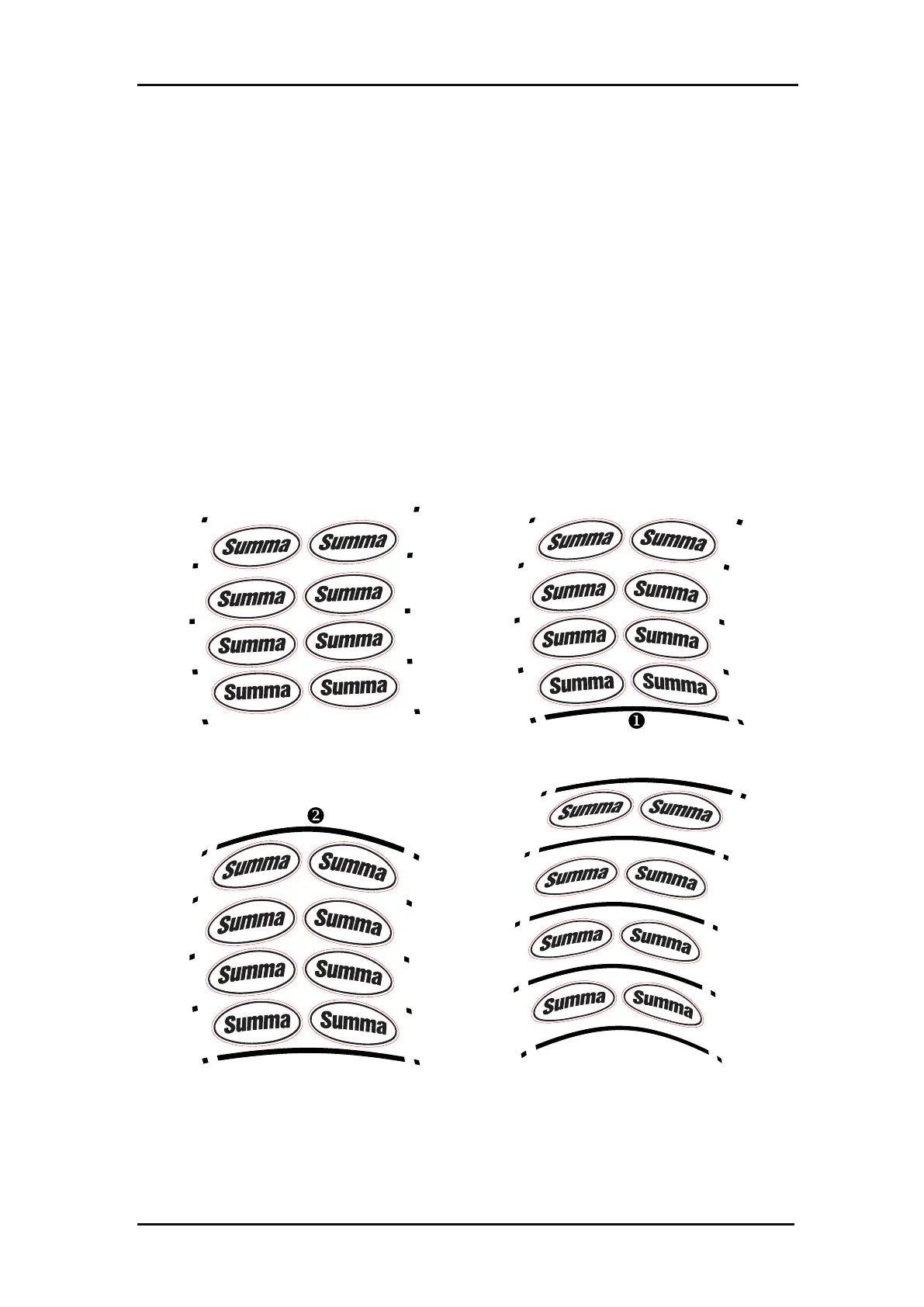

OPOS X: A row of marks is printed on the left and right sides of the graphic, which are read by
the OPOS sensor and then used to compensate for print distortion.
OPOS XY: An additional line is printed at the bottom of the job (line  in the figure below),
which is read by the sensor and then used to compensate for print distortion along the width
of the machine.
OPOS XY2: Similar to the XY line at the bottom, a line (line  in the figure below) is printed at
the top of the job to allow more accurate cutting of long jobs.
OPOS XYXtra: Similar to the lower XY line, a line is printed between each left-right mark.
OPOS
OPOS XY
OPOS XY2
OPOS Xtra
FIG 3-3
