S One User’s Manual
Setup 1-22
1. Remove the aluminium piece from the plastic knife holder by turning the knurled
adjustment knob counterclockwise until the aluminium piece comes out of the holder.
2. Insert the conical, non-cutting end of the knife into the opening in the narrow end of the
holder. Gently push the knife in.
3. Turn the holder upside down and tap it lightly on a solid surface to ensure the knife is
completely inserted.
4. Turn the knurled adjustment knob slowly clockwise until the tip of the blade extends as far
as necessary to cut the desired material (t), as shown in the illustration below.

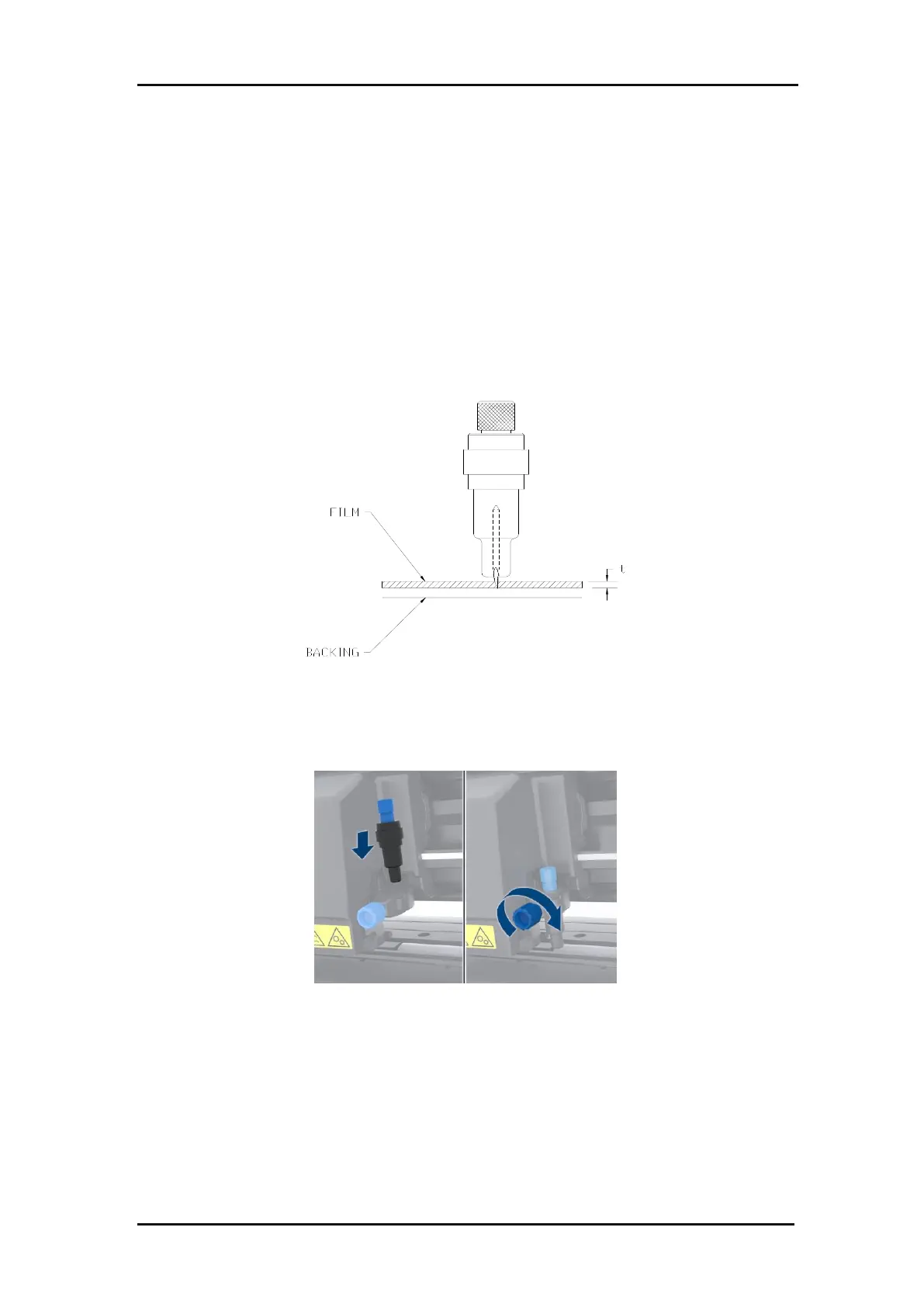

FIG 1-15
1-15 KNIFE LENGTH ADJUSTMENT
5. Insert the knife holder into the head clamp and push it down. Then tighten the clamp screw.
FIG 1-16
1-16 CLAMP DRAG HEAD
