SummaSign Service Manual

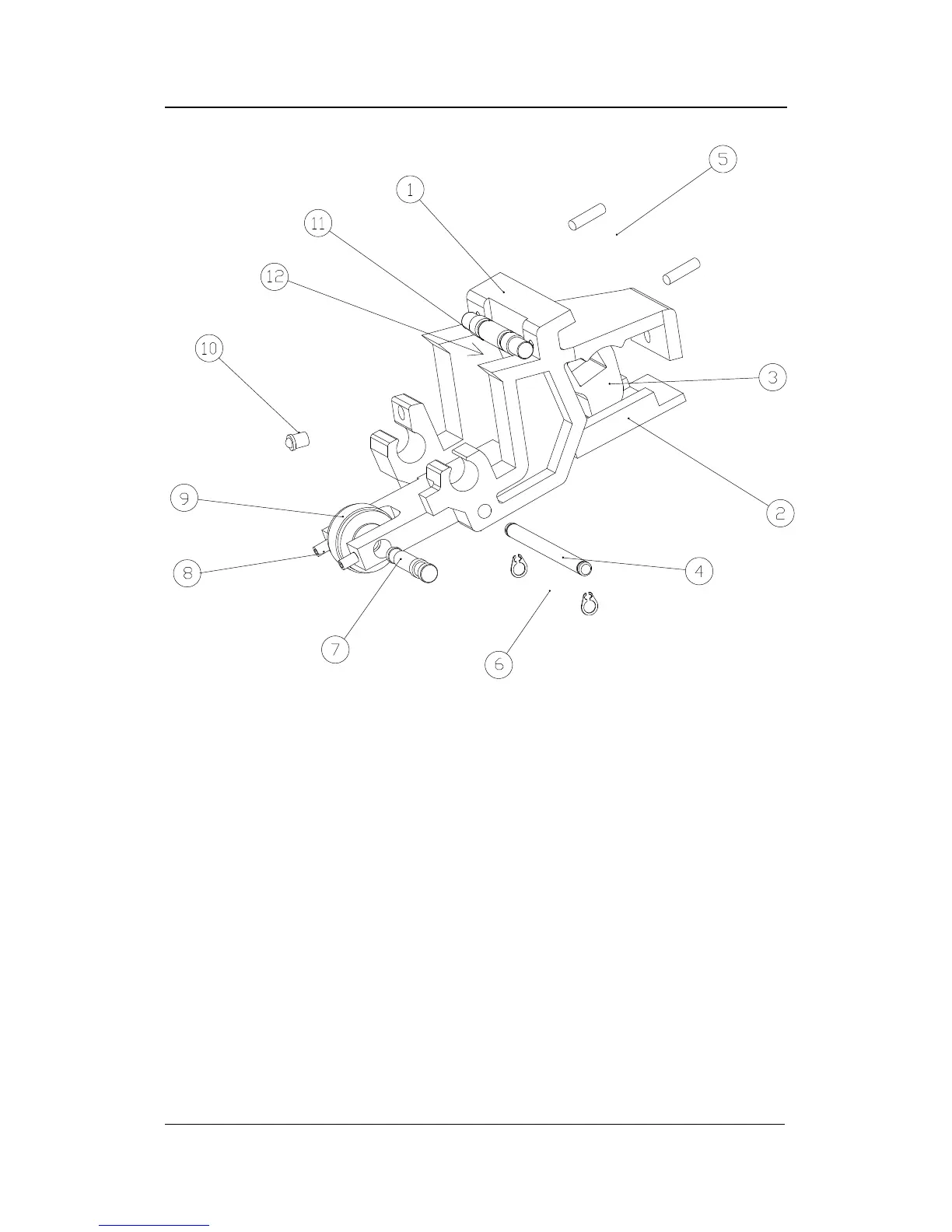

6-10 Figures
1 398-451 carriage media select right
2 391-115 pinch roller mount base
3 391-121 eccentric cam
4 398-440 connecting pin
5 ND5000-9621 setscrew M3x12
6 ND5000-9607 truarc dia. 4
7 390-142 shaft camroller
8 ND5000-9196 setscrew M3x5
9 391-326 assy, pinch roller
10 ND5000-9244 spring plunger dia 4
11 391-116 adjustable springholder
12 391-117 spring
remark: for the assy media select left the
partnumber for the molded part (1) is 398-450.
