SummaSign series Cutters Service Manual
However, in case your cut resembles the pattern illustrated above, increase the value
displayed on the LCD by pressing the
jogging key to correct closing of the lines
cut.
To repeat the test, press the
key.
A complementary test has been added to fine tune the LAT. adjustment.
Press the 2 key to perform the vertical test shown above. All the squares should be
identical.
Press the
key to go to the next step of the procedure.

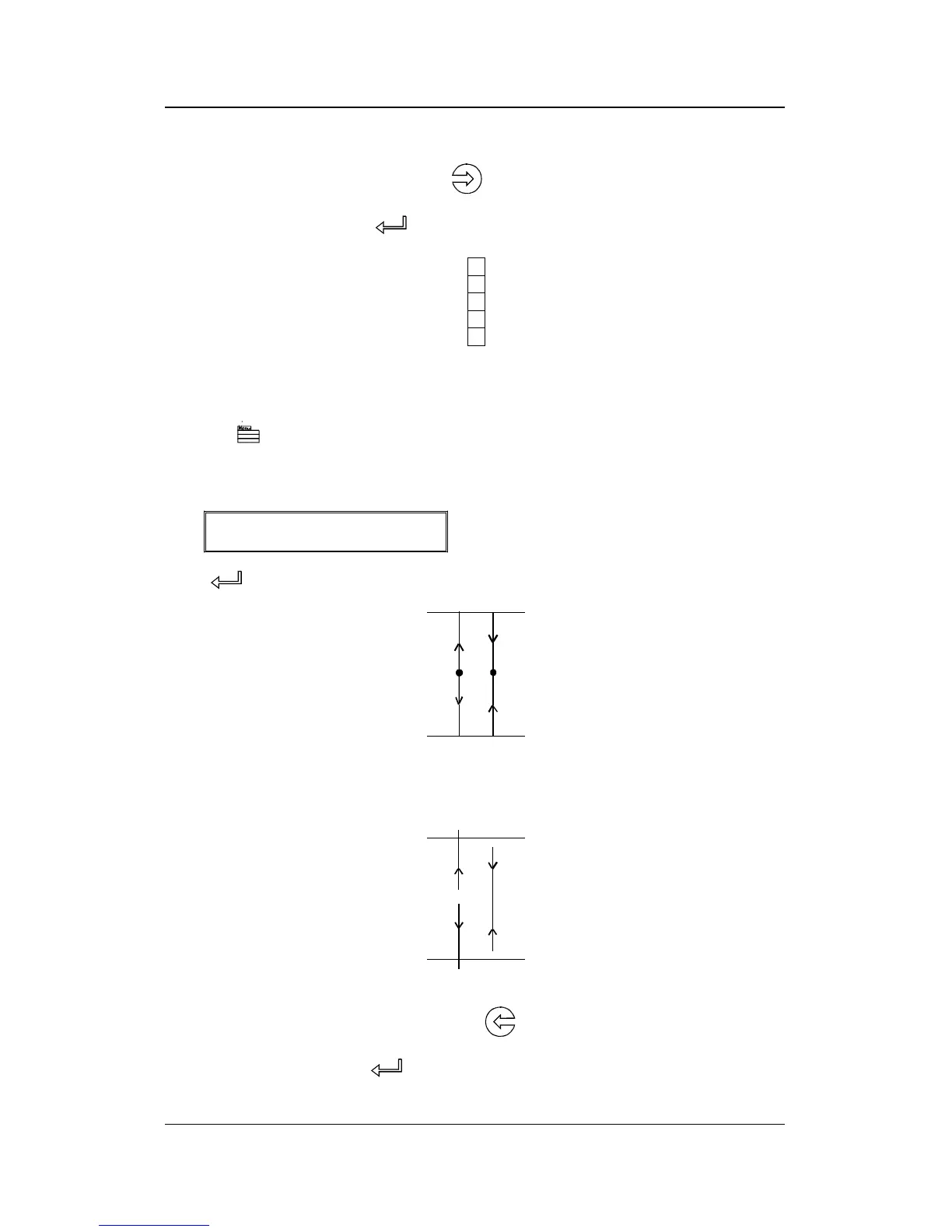

ADJUST LONG. test routine
ADJUST LONG
0
1
Press
to execute the LONG test.
The test pattern is similar to the LAT-test.
Check the quality of the cuts: the end of the vertical cuts should coincide precisely with
the horizontal cuts, without any gaps.
Weed out the rectangle and if you obtained a pattern as illustrated above, decrease the
value displayed on the LCD by pressing the
jogging key to correct closing of the
lines cut.
To repeat the test, press the
key.
1-24 Keyboardcontrols
