MENU DESCRIPTION
USER CONFIG 1 (->4)
Selects a given active cutter configuration from one of the
four sets of configuration parameters stored in the unit's
memory
INTERNAL TEST
Activates one of the resident cutting plots provided for
informational purposes.
CONTENTS OF THE SUMMASIGN PRO T-SERIES MENUS

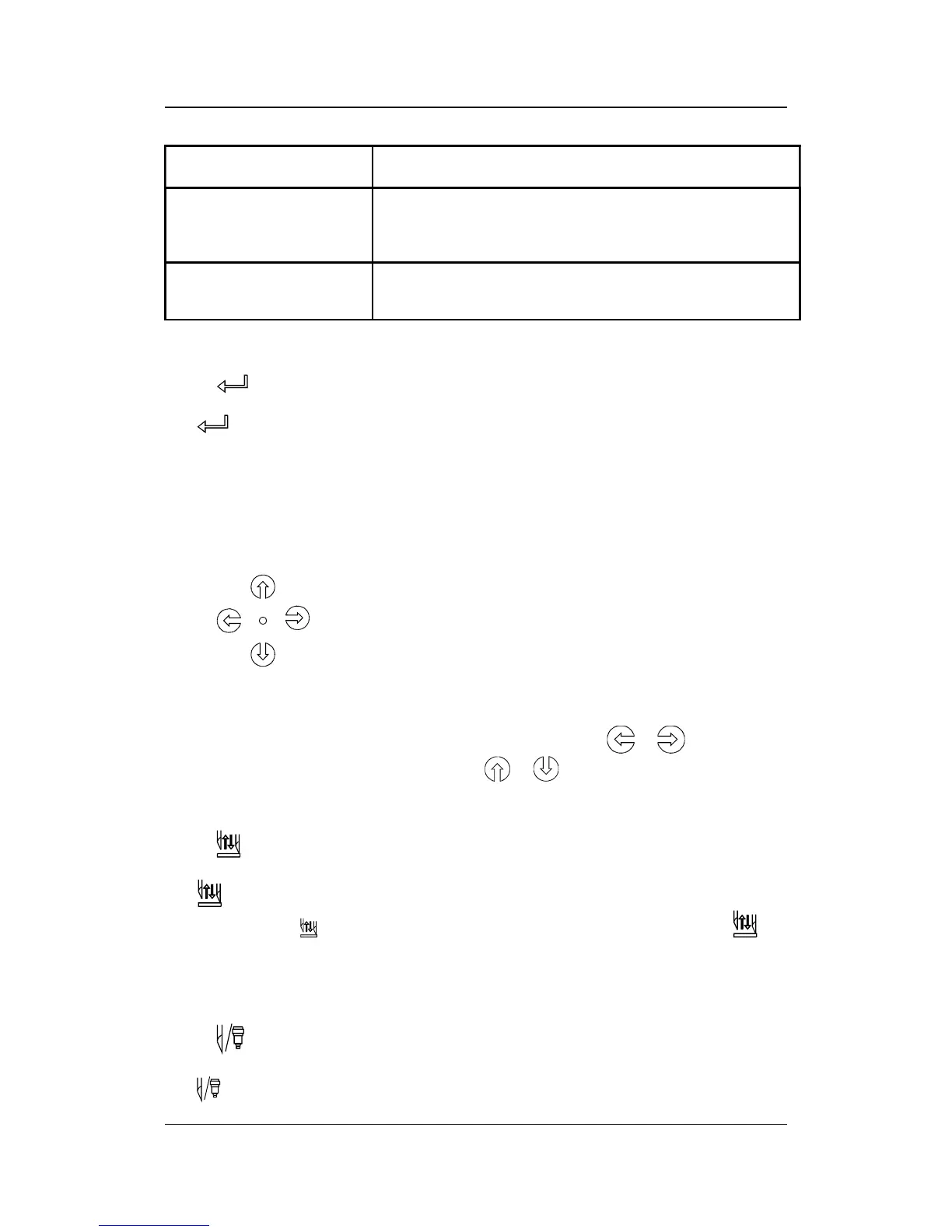

THE ENTER KEY
The
key (ENTER) is used to select the item currently displayed on the LCD.
2 THE 1 AND 2 KEYS
The use of the 1 and 2 keys varies according to the operation in progress; their use is
displayed on the LCD as appropriate.
THE JOGGING KEYS
The use of the jogging keys varies according to the operation in progress.
For example, when working in the USER CONFIG menu, the
or jogging key is
used to select the new user number and the
or jogging key is used to go to the
previous or next menu item.
THE TOOL UP/DOWN KEY
The
key (TOOL UP/DOWN) is used while the cutter is off line to raise or lower the
tool. Pressing the
key once will lower the tool onto the media. Pressing the key
again will raise the tool.
If the tool is not moved for approximately eight seconds, it is raised automatically.
THE TOOL SELECT KEY
The
key (TOOL SELECT) is used to select one of the following tools :
Keyboardcontrols 1-5
