Service Manual SummaSign series Cutters
ADJUST LAT. test routine
ADJUST LAT
0
1
Press
to execute the LAT test.

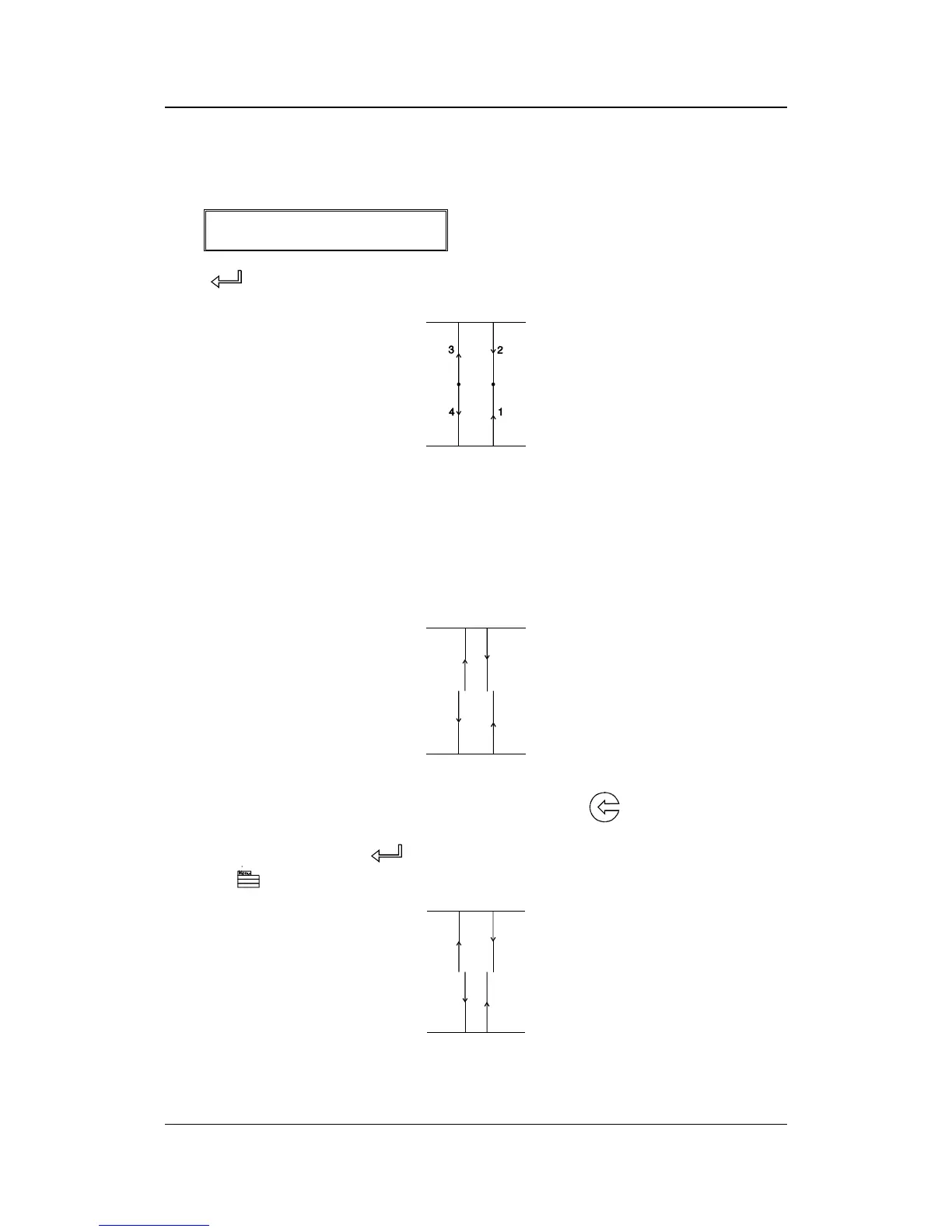

1 runs from the horizontal line at the bottom to the centre.
2 runs from the horizontal line at the top to the centre.
3 runs from the centre to the horizontal line at the top.
4 runs from the centre to the horizontal line at the bottom.
Carefully check the alignment of the different cuts: the two vertical lines should meet
seamlessly precisely in the middle, without any gaps.
Weed out the rectangle and if you obtained the kind of pattern illustrated above,
decrease the value displayed on the LCD by pressing the
jogging key to correct
closing of the lines cut.
To repeat the test, press the
key.
Press the
key to go to the next step of the procedure.
