CHANGING THE O-RING ON THE
BRAKE
To remove the left-hand cover, proceed as follows:
1. Remove the five screws (four long screws and a short screw) holding the left-hand cover in place.
Three are located at the front, one at the rear and one at the bottom (it is not necessary to turn
the unit upside down to remove the bottom screw). Pay close attention to where each of the
screws goes. They should be returned to their original location when re-installed.
2. Gently tap the top of the cover.

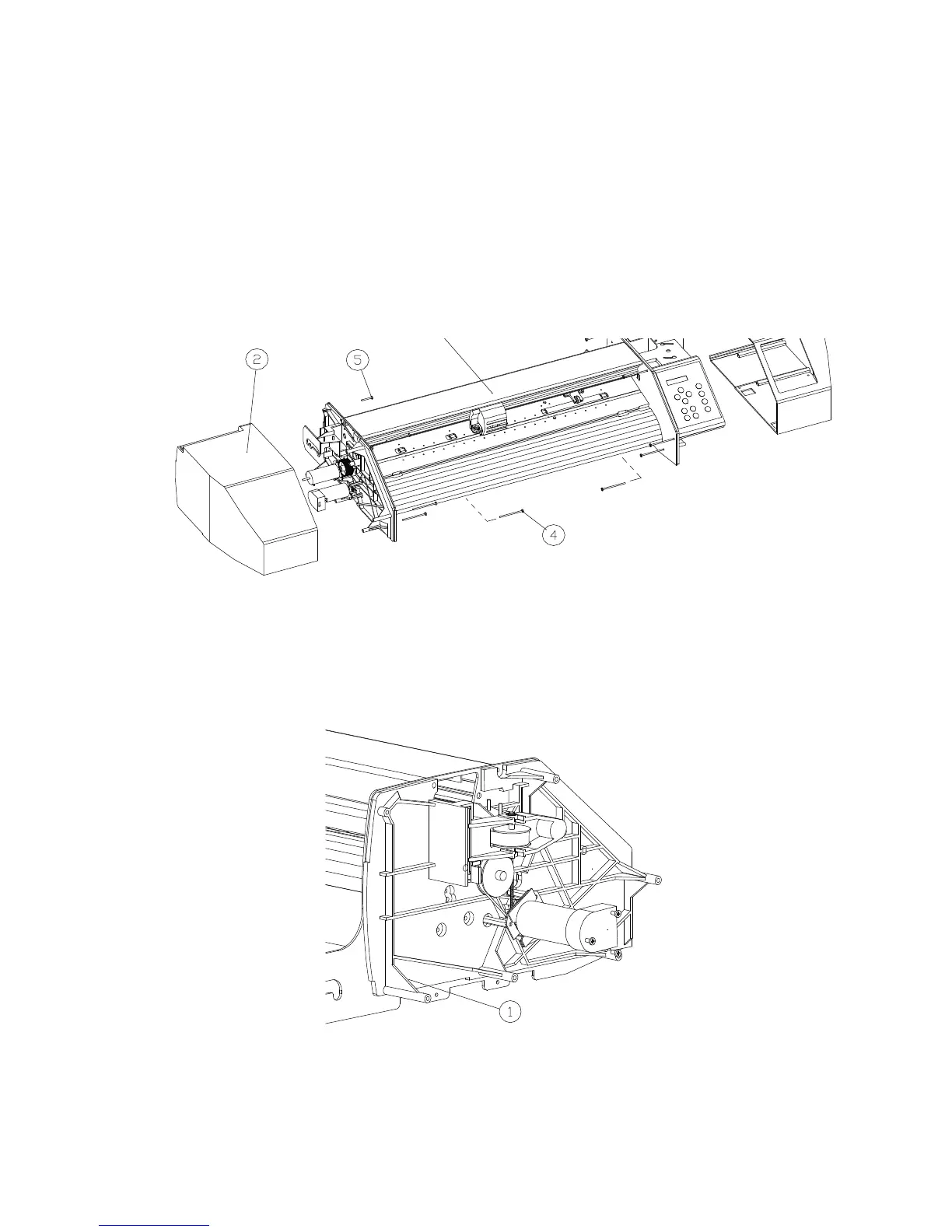

3. Remove the cover. (fig1)
fig1
4. Unscrew the black bolt situated on place 1 in fig 2.
5. Gently lift the lift and slide the two bushing which normaly hold the flanges.
6. Take the o-ring(s) of the brake (black part on the end of the
roll).
7. Put new o-rings on it.
fig2
To re-install, proceed in the reverse order of removal. Make sure to firmly tighten all screws.
