SummaSign Service Manual
162.
2-34 Replacements Guidelines

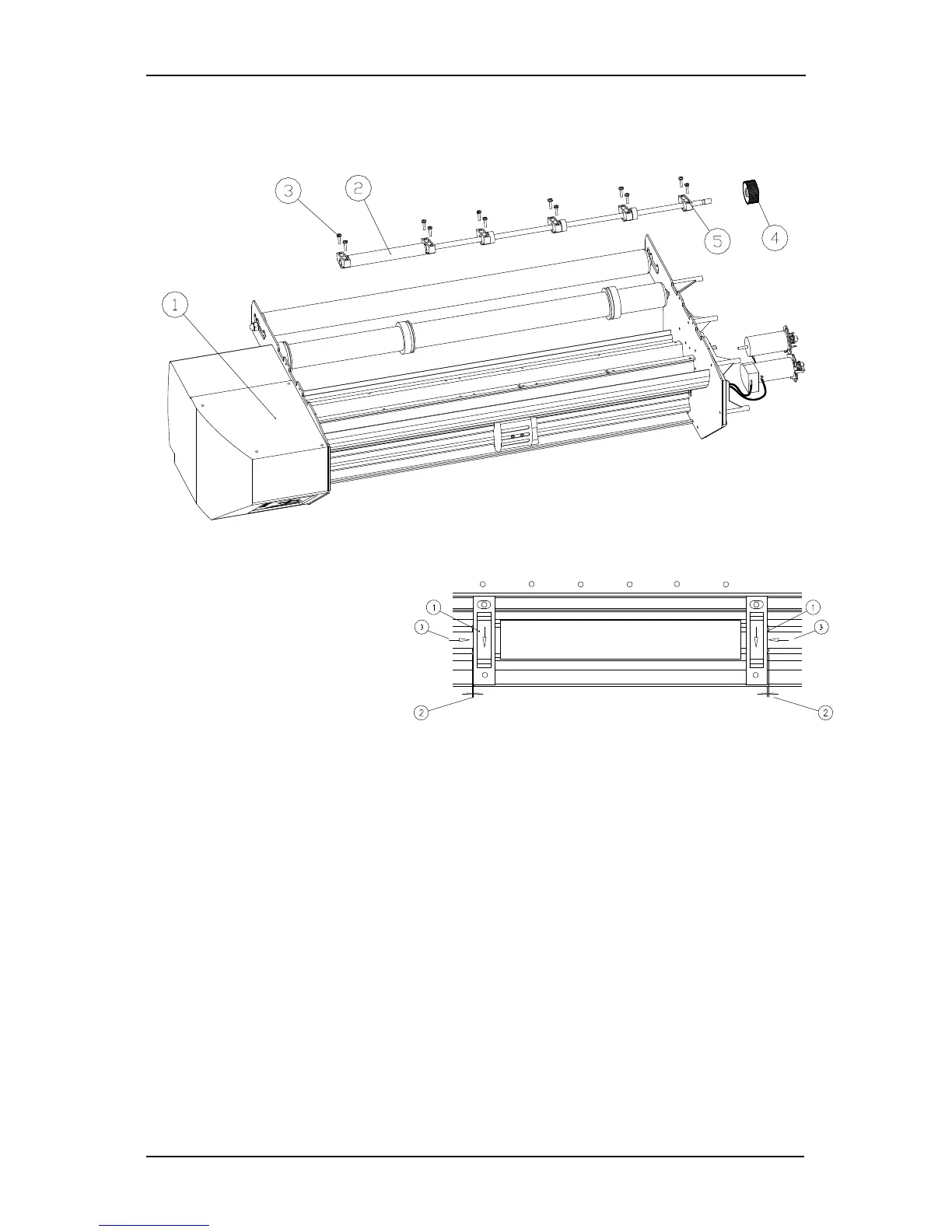

1 body
2drum
3 screws # depending on the type
4 pulley
5 see remark in text
det1 push all the bearing blocks in the same direction
det2 equal distances
det3 push the pillow blocks against the sleeves
