OPERATING VOLTAGE CONVERSION
The power entry module cover shows four possible AC voltage settings (100 V, 120 V,
220 V and 240 V). The pin in one of the holes indicates the cutter's active voltage
setting. If this setting does not match the voltage supplied to your site, you must
change the voltage BEFORE
powering on the cutter.
When changing the voltage setting, you will also have to change the fuses as
appropriate to the voltage.
To change the fuse(s), remove the fuse(s) from the fuse box behind the cover plate of
the power entry module.
For 100 or 120 V AC operation of cutters with 1 x-motor Pro unly 1.0 A Slo-Blo fuses.
For 100 or 120 V AC operation of cutters with 2 x-motorsT750T,only 1.25 A Slo-Blo
fuses.
For 220 or 240 V AC operation of cutters with 1 x-motor , Pr0.5 A Slo-Blo fuses.
For 220 or 240 V AC operation of cutters with 2 x-motors /T1010 Pro/TusSlo-Blo fuses.
NOTE
Always make sure that you are using the correct fuses for your
voltage selection.

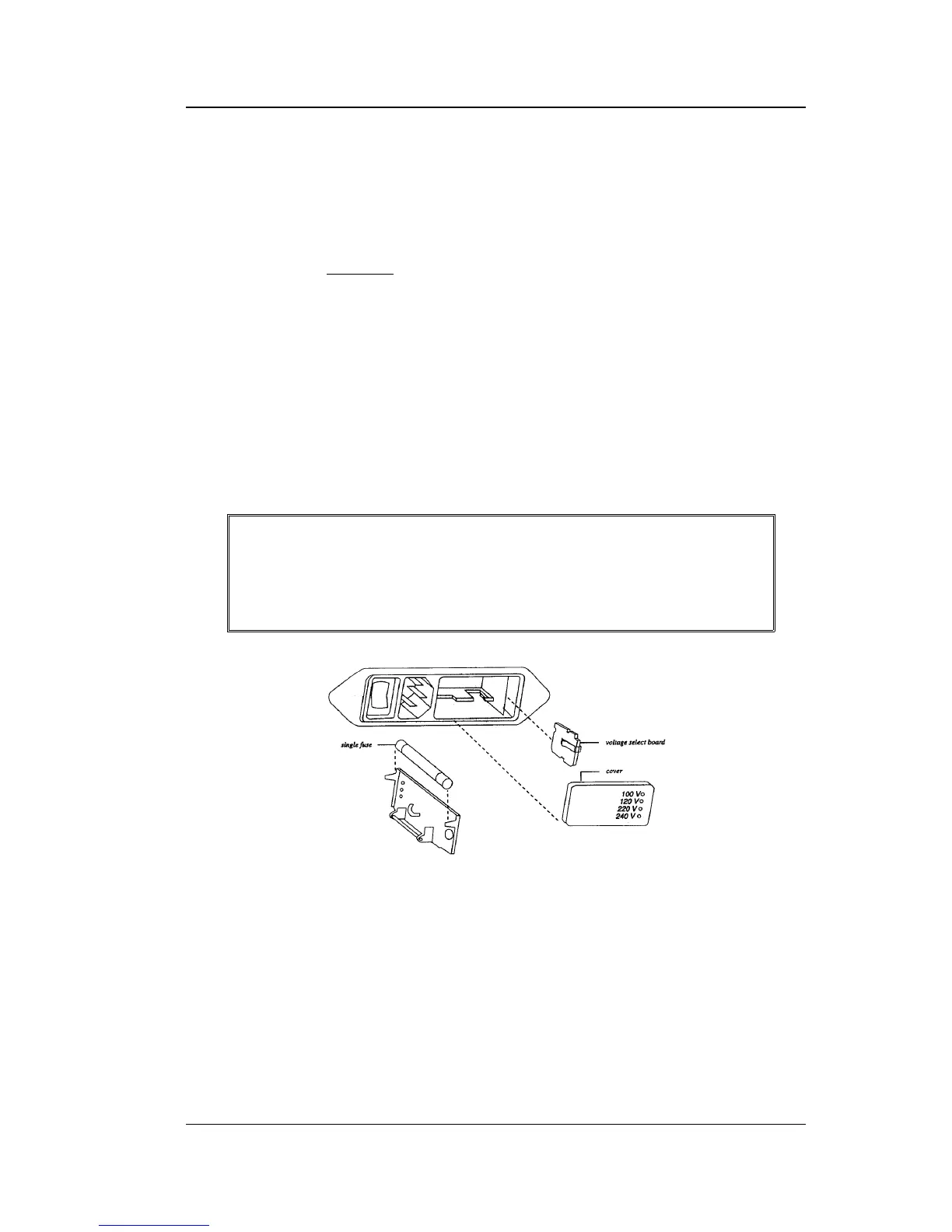

POWER ENTRY MODULE
3-6 Maintenance and Cleaning
