18
Width
Height Depth
1080mm 2400mm 1400mm
3.2.3 Ventilation Design
Cooling air comes into the PCS from the top air vent and hot air goes out of the PCS from
the bottom air vent. It’s shown in the figure below.

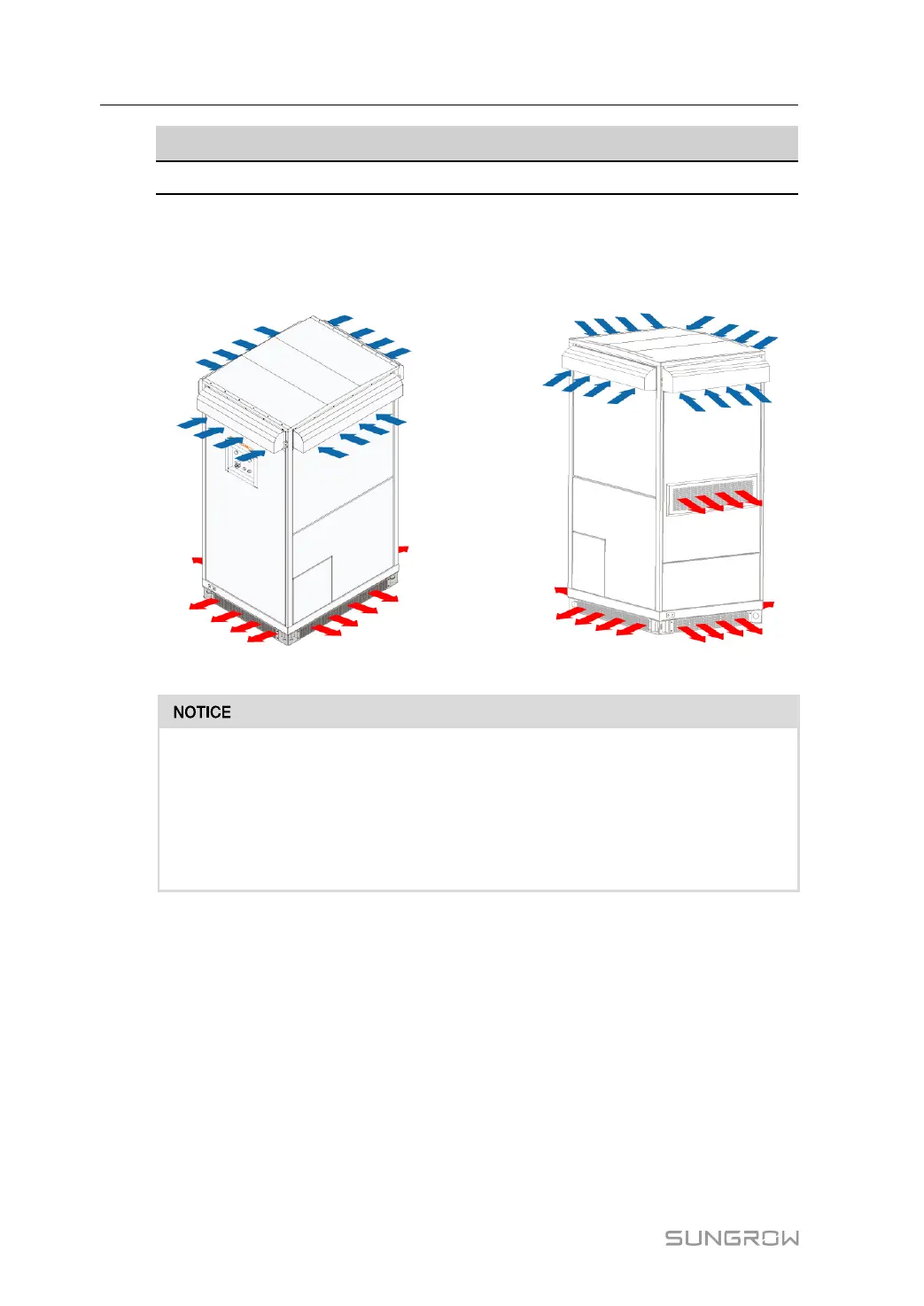

figure 3-2 Ventilation diagram
• Please carry out regular inspections on wire meshes on the air inlets of the top
rain cover and the air outlets at the bottom of the PCS, and perform mainte-
nance such as cleanup.
• The maintenance interval for the wire mesh should be six months. It is sug-
gested to shorten the interval to three months or less for the device working in
hash and dusty environments.
3.3 Internal Design of PCS
3.3.1 Internal Components
Front and rear views of the PCS with doors shielded are shown below.
3 Product Description User Manual
