6

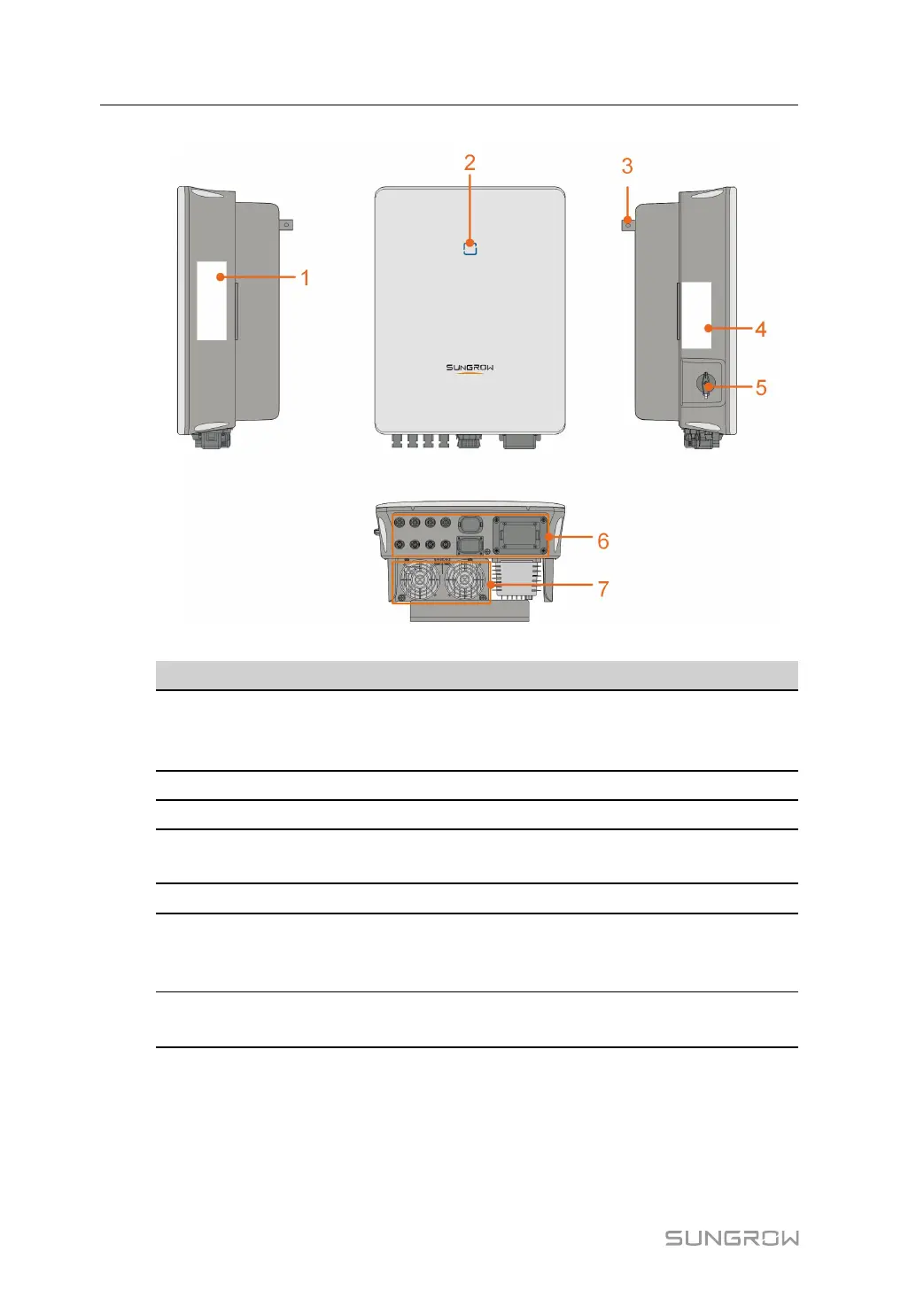

FFiigguurree 22--22 Inverter Appearance
NNoo.. NNaammee
DDeessccrriippttiioonn
1
Nameplate
To clearly identify the product, including device model, S/
N, important specifications, marks of certification
institutions, etc.
2 LED indicator
To indicate the current working state of the inverter.
3
Hanger To hang the inverter on the wall-mounting bracket.
4 Label
Information about CCOOMM22 pin definition, supported DRM
modes, certification icons, etc.
5 DC switch
To safely disconnect the DC circuit whenever necessary.
6
Electrical
connection area
DC terminals (SG20RT for example), AC terminal,
additional grounding terminal and communication
terminals.
7 Fans
Only with SG15RT, SG17RT and SG20RT. To help the
inverter for heat dissipation.
DDiimmeennssiioonnss
The following figure shows the dimensions of the inverter.
2 Product Description User Manual
