47
-- -- EEnndd

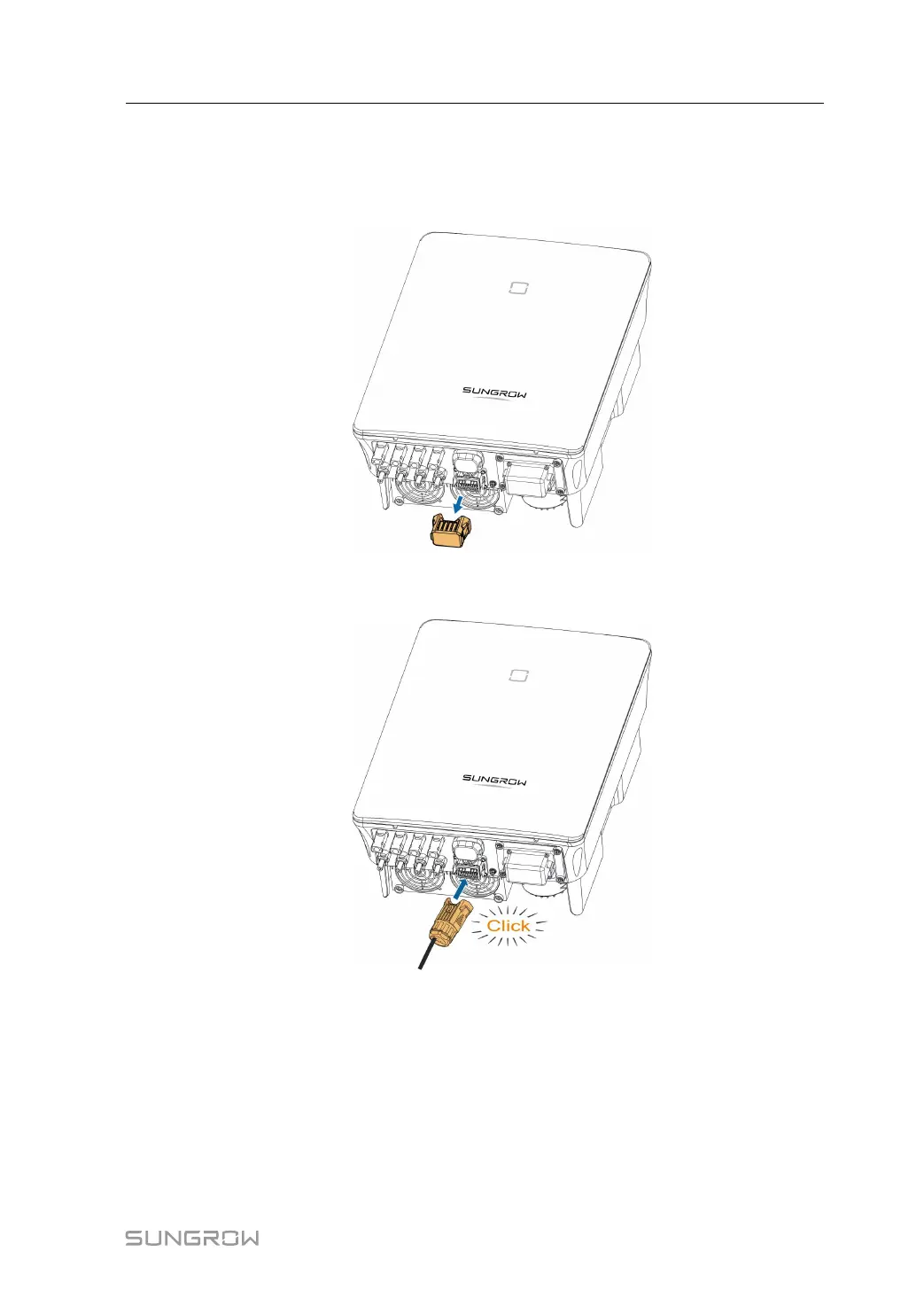

5.9.3 Installing the COM Connector
Step 1 Remove the waterproof lid from the CCOOMM22 connector.
Step 2 Insert the COM connector into CCOOMM22 terminal on the bottom of the inverter until there is
an audible click.
-- -- EEnndd
5.10 DI Connection
In Germany, the grid company uses a Ripple Control Receiver to convert the grid
dispatching signal and send it as a dry contact signal.
The following figure shows the wiring between the inverter and the ripple control
receiver.
User Manual 5 Electrical Connection
